Seat & seat track for Sequoia UCK45L

Scheme 1 Scheme 2 Scheme 3 Scheme 4 Scheme 5 Scheme 6 Scheme 7 Scheme 8

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Click part number in the scheme or in the list:

71011S FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71012S FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71073S COVER, FRONT SEAT BACK, RH (FOR SEPARATE TYPE)
71074S COVER, FRONT SEAT BACK, LH (FOR SEPARATE TYPE)
71410S CUSHION ASSY, FRONT SEAT, RH (FOR SEPARATE TYPE)
71420S CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71440S BACK ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71430S BACK ASSY, FRONT SEAT, RH (FOR SEPARATE TYPE)
71511S PAD, FRONT SEAT CUSHION, RH (FOR SEPARATE TYPE)
71551S PAD, FRONT SEAT BACK, RH (FOR SEPARATE TYPE)
71552S PAD, FRONT SEAT BACK, LH (FOR SEPARATE TYPE)
71630S SPRING ASSY, FRONT SEAT BACK, RH (FOR SEPARATE TYPE)
71640S SPRING ASSY, FRONT SEAT BACK, LH (FOR SEPARATE TYPE)
71931 SUPPORT, FRONT SEAT HEADREST
71910A HEADREST ASSY, FRONT SEAT
72880 ARMREST ASSY, SEAT, C RH
72890 ARMREST ASSY, SEAT, C LH
72760D ADJUSTER ASSY, LUMBAR SUPPORT, LH
9008456003 ** Std Part
9008438009 ** Std Part
9008420003 ** Std Part
9008410008 ** Std Part
9016740044 ** Std Part
87510L HEATER ASSY, FRONT SEAT CUSHION, LH
87510K HEATER ASSY, FRONT SEAT CUSHION, RH
87510N HEATER ASSY, FRONT SEAT BACK, LH
87510M HEATER ASSY, FRONT SEAT BACK, RH
71071S COVER, FRONT SEAT CUSHION, RH (FOR SEPARATE TYPE)
71072S COVER, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

Scheme 2

Click part number in the scheme or in the list:

71811C COVER, RECLINING ADJUSTER, RH
71812E COVER, RECLINING ADJUSTER, LH
71861 SHIELD, FRONT SEAT CUSHION, INNER RH
71862 SHIELD, FRONT SEAT CUSHION, INNER LH
71874 SHIELD, FRONT SEAT CUSHION, LOWER LH
71873 SHIELD, FRONT SEAT CUSHION, LOWER RH
71868A SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71876A COVER, RECLINING ADJUSTER INSIDE, LH
71876 COVER, RECLINING ADJUSTER INSIDE, LH
71875A COVER, RECLINING ADJUSTER INSIDE, RH
71867A SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71819B LABEL, SIDE AIR BAG NAME
72011C ADJUSTER SUB-ASSY, FRONT SEAT, RH
72012C ADJUSTER SUB-ASSY, FRONT SEAT, LH
72137B COVER, SEAT TRACK, RH
72138B COVER, SEAT TRACK, LH
72137D COVER, REAR SEAT TRACK, RH
72137H COVER, FRONT SEAT TRACK, RH FRONT OUTER
72138G COVER, FRONT SEAT TRACK, LH FRONT INNER
72138H COVER, FRONT SEAT TRACK, LH REAR INNER
72991 COVER, FRONT SEAT CUSHION, RH
72992 COVER, FRONT SEAT CUSHION, LH
** 84-01
9356054012 ** Std Part
9008416010 ** Std Part
90119A0034 ** Std Part
9008446017 ** Std Part
9046804177 ** Std Part
9046710188 ** Std Part
9008010248 ** Std Part
9008411053 ** Std Part

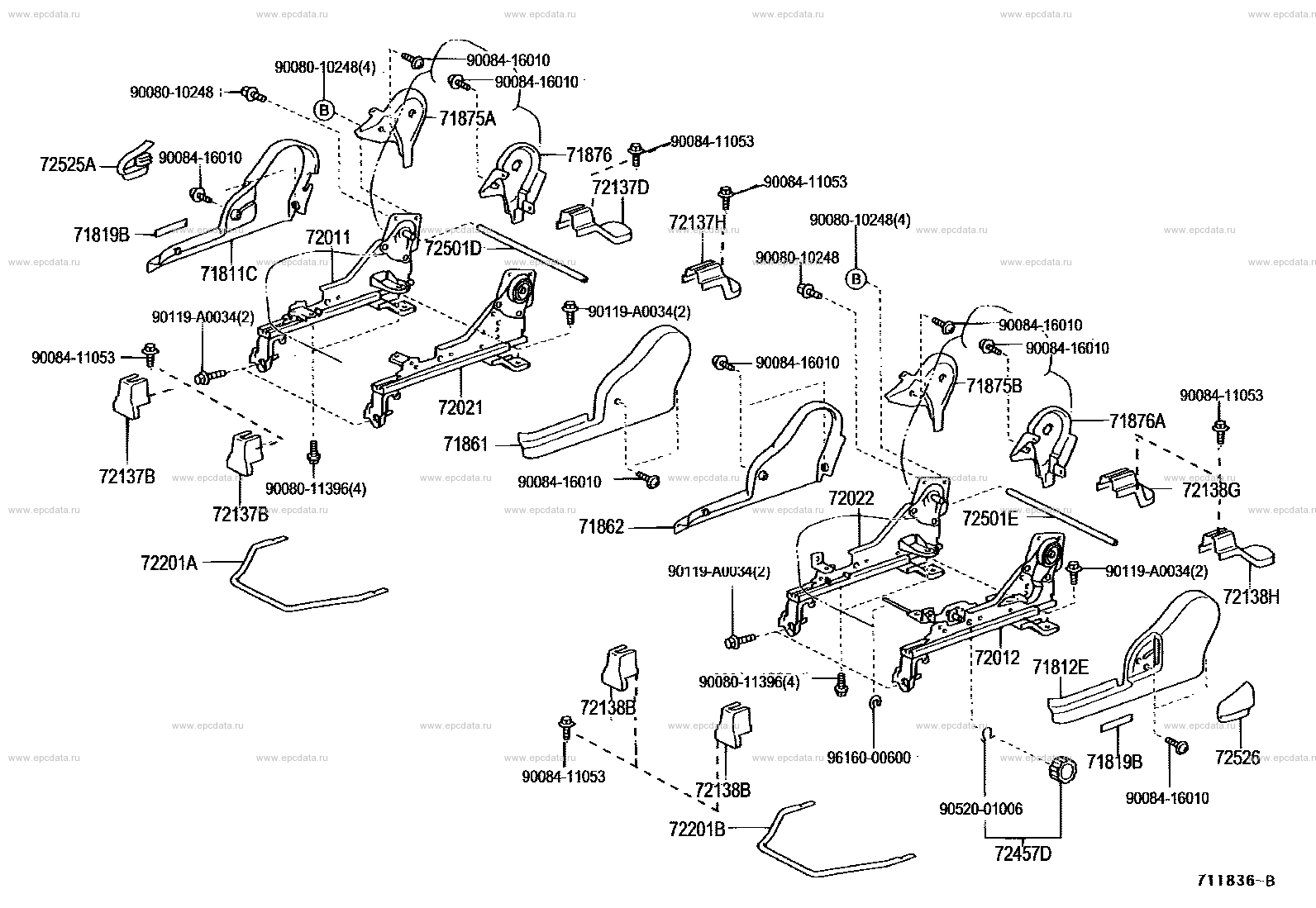

Scheme 3

Click part number in the scheme or in the list:

71875A COVER, RECLINING ADJUSTER INSIDE, RH
71876 COVER, RECLINING ADJUSTER INSIDE, LH
71876A COVER, RECLINING ADJUSTER INSIDE, LH
71875B COVER, RECLINING ADJUSTER INSIDE, RH
71811C COVER, RECLINING ADJUSTER, RH
71812E COVER, RECLINING ADJUSTER, LH
71861 SHIELD, FRONT SEAT CUSHION, INNER RH
71862 SHIELD, FRONT SEAT CUSHION, INNER LH
71819B LABEL, SIDE AIR BAG NAME
72011 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72012 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72021 ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72022 ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72137B COVER, SEAT TRACK, RH
72137D COVER, REAR SEAT TRACK, RH
72137H COVER, FRONT SEAT TRACK, RH FRONT OUTER
72138B COVER, SEAT TRACK, LH
72138G COVER, FRONT SEAT TRACK, LH FRONT INNER
72138H COVER, FRONT SEAT TRACK, LH REAR INNER
72201A HANDLE SUB-ASSY, SEAT TRACK RH
72201B HANDLE SUB-ASSY, SEAT TRACK LH
72501D PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501E PIPE SUB-ASSY, RECLINING CONNECTING, LH
72525A HANDLE, RECLINING ADJUSTER RELEASE, RH
72526 HANDLE, RECLINING ADJUSTER RELEASE, LH
72457D KNOB, VERTICAL SEAT ADJUSTER, LH
9052001006 ** Std Part
9008416010 ** Std Part
9008010248 ** Std Part
90119A0034 ** Std Part
9008011396 ** Std Part
9616000600 ** Std Part
9008411053 ** Std Part

Scheme 4

Click part number in the scheme or in the list:

71940A HEADREST ASSY, REAR SEAT
71960B HEADREST ASSY, REAR SEAT, CENTER
71460S CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)
71470S CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71480S BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71490S BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71077S COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71075S COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71076S COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
71078S COVER, REAR SEAT BACK, LH (FOR SEPARATE TYPE)
71017 FRAME SUB-ASSY, REAR SEAT BACK, RH
71015A FRAME SUB-ASSY, REAR SEAT CUSHION, RH
71016A FRAME SUB-ASSY, REAR SEAT CUSHION, LH
71018 FRAME SUB-ASSY, REAR SEAT BACK, LH
71612A PAD, REAR SEAT CUSHION, LH
71611A PAD, REAR SEAT CUSHION, RH
71651S PAD, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71652S PAD, REAR SEAT BACK, LH (FOR SEPARATE TYPE)
71931A SUPPORT, REAR SEAT HEADREST
72840 ARMREST ASSY, REAR NO.1 SEAT, LH
72833A PLATE, SEAT CENTER ARMREST, INNER
72660H LOCK ASSY, REAR NO.2 SEAT, LH
90109A0010 ** Std Part
90105A0026 ** Std Part
9010511033 ** Std Part
90119A0034 ** Std Part

Scheme 5

Click part number in the scheme or in the list:

71833A COVER, REAR SEAT RECLINING, NO.1 RH
71834A COVER, REAR SEAT RECLINING, NO.1 LH
71331B PIN, REAR SEAT HINGE, RH
71324D CUSHION, REAR SEAT, RH
71302B HINGE SUB-ASSY, REAR NO.1 SEAT, LH
71301B HINGE SUB-ASSY, REAR NO.1 SEAT, RH
71321B HINGE, REAR SEAT CUSHION, RH
71322C HINGE, REAR SEAT CUSHION, LH
71357A PLATE, REAR SEAT HINGE SET, RH
90105A0018 ** Std Part
71691E COVER, REAR SEAT CUSHION HINGE, NO.1
71692E COVER, REAR SEAT CUSHION HINGE, NO.2
71628G SPACER, REAR SEAT CUSHION, RH
72525C HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
72501F PIPE SUB-ASSY, RECLINING CONNECTING
72649 SPRING, REAR SEAT CUSHION SUPPORT
72650G LOCK ASSY, REAR NO.2 SEAT, RH
72740A ADJUSTER ASSY, REAR SEAT RECLINING, LH
72730A ADJUSTER ASSY, REAR SEAT RECLINING, RH
72907B COVER SUB-ASSY, REAR SEAT CUSH UNDER, RH
78950 BAND ASSY, FOLD SEAT STOPPER, NO.1
9008416010 ** Std Part
9616000800 ** Std Part
9018304057 ** Std Part
727020C010 ** Std Part
9324056025 ** Std Part
9356054012 ** Std Part
9356056014 ** Std Part
9008010248 ** Std Part
9052306006 ** Std Part
9017810001 ** Std Part
9151581025 ** Std Part
9155281035 ** Std Part
78091 CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL
72650F LOCK ASSY, REAR SEAT, RH

Scheme 6

Click part number in the scheme or in the list:

64618B CLAMP, BACK DOOR LOCK CONTROL CABLE
71270 BRACKET ASSY, SEAT, INNER RH
71302D HINGE SUB-ASSY, REAR SEAT, LH
71301D HINGE SUB-ASSY, REAR SEAT, RH
71321C HINGE, REAR SEAT CUSHION
71322E HINGE, RR SEAT CUSHION, LH
9356054012 ** Std Part
71357B PLATE, REAR SEAT HINGE SET, LH
71331C PIN, REAR SEAT HINGE, LH
71305C STAY SUB-ASSY, REAR SEAT
6896123010 ** Std Part
7270260030 ** Std Part
71324E CUSHION, REAR SEAT, LH
71695 PROTECTOR, REAR SEAT BACK
71692E COVER, REAR SEAT CUSHION HINGE, NO.2
71691E COVER, REAR SEAT CUSHION HINGE, NO.1
71834G COVER, REAR SEAT RECLINING, NO.1 LH
71833H COVER, REAR SEAT RECLINING, NO.1 RH
71628H SPACER, REAR SEAT CUSHION, LH
71878A COVER, REAR SEAT RECLINING, INNER RH
72380 CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72551E COVER, RECLINING HINGE, RH
72720B ADJUSTER ASSY, REAR SEAT BACK, INNER LH
72740A ADJUSTER ASSY, REAR SEAT RECLINING, LH
72526B HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH
71879A COVER, REAR SEAT RECLINING, INNER LH
72908B COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH
72998 COVER, REAR SEAT CUSHION, LH
72999B COVER, REAR SEAT CUSHION SIDE, LH
72998B COVER, REAR SEAT CUSHION, LH
72660H LOCK ASSY, REAR NO.2 SEAT, LH
72649B SPRING, REAR SEAT CUSHION SUPPORT
78920B CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH
78960 BAND ASSY, FOLD SEAT STOPPER, NO.2
79121 BRACKET, NO.1 SEAT CUSHION
72745 PIN, REAR SEAT RECLINING HINGE
9016740044 ** Std Part
8271112120 ** Std Part
9008416010 ** Std Part
727020C010 ** Std Part
9018304057 ** Std Part
9616000800 ** Std Part
9324056025 ** Std Part
9356056014 ** Std Part
90119A0035 ** Std Part

Scheme 7

Click part number in the scheme or in the list:

79021 COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79023 COVER SUB-ASSY, NO.2 SEAT BACK, RH
79027A PAD SUB-ASSY, NO.2 SEAT BACK, RH
71931C SUPPORT ASSY, REAR NO.2 SEAT HEADREST
71940C HEADREST ASSY, REAR NO.1 SEAT, RH
71970 HEADREST ASSY, REAR SEAT
73383 HOOK, RR SEAT BELT
79028A PAD SUB-ASSY, NO.2 SEAT BACK, LH
71587 PROTECTOR, FRONT SEAT BACK EDGE
79290A SPRING ASSY, NO.2 SEAT BACK, LH
9046709127 ** Std Part
79280 SPRING ASSY, NO.2 SEAT BACK
79024 COVER SUB-ASSY, NO.2 SEAT BACK, LH
79025A PAD SUB-ASSY, NO.2 SEAT CUSHION, RH
79220 CUSHION ASSY, NO.2 SEAT, RH
79101B FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79022 COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79026 PAD SUB-ASSY, NO.2 SEAT CUSHION, LH
79230 CUSHION ASSY, NO.2 SEAT, LH
79102 FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH
79240 BACK ASSY, NO.2 SEAT, RH
79250 BACK ASSY, NO.2 SEAT, LH

Scheme 8

Click part number in the scheme or in the list:

71843A COVER, REAR SEAT RECLINING, NO.2 RH
72040 ADJUSTER ASSY, REAR NO.2 SEAT
72203A HANDLE SUB-ASSY, REAR SEAT TRACK, RH
72345F PIPE, RECLINING CONNECTING, RH
72129B PROTECTOR, SEAT TRACK LOWER RAIL
72553 COVER, RECLINING PEDAL
72525D HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH
72740C ADJUSTER ASSY, NO.2 SEAT RECLINING, LH
72730C ADJUSTER ASSY, NO.2 SEAT RECLINING, RH
79236A COVER, NO.2 SEAT LEG
79218 BRACKET, NO.2 SEAT LEG
72591A LEVER, RECLINING REMOTE CONTROL
71844A COVER, REAR SEAT RECLINING, NO.2 LH
72129C PROTECTOR, SEAT TRACK LOWER RAIL
71844C COVER, REAR SEAT RECLINING, NO.2 LH
71843D COVER, REAR SEAT RECLINING, NO.2 RH
72203B HANDLE SUB-ASSY, REAR SEAT TRACK, LH
72720C ADJUSTER ASSY, NO.1 SEAT RECLINING, LH
72345G PIPE, RECLINING CONNECTING, LH
72710B ADJUSTER ASSY, REAR SEAT BACK, INNER RH
72591C LEVER, RECLINING REMOTE CONTROL, LH
79236B COVER, NO.2 SEAT LEG, LH
79246B COVER, NO.2 SEAT LEG, B
72526C HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH
72908B COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH
72907B COVER SUB-ASSY, REAR SEAT CUSH UNDER, RH
72927 COVER, REAR SEAT CUSHION UNDER, RH
72928 COVER, REAR SEAT CUSHION UNDER, LH
79246 COVER, NO.2 SEAT LEG, NO.1
792870C020 ** Std Part
9017810001 ** Std Part
9324056025 ** Std Part
9018305016 ** Std Part
9008416010 ** Std Part
