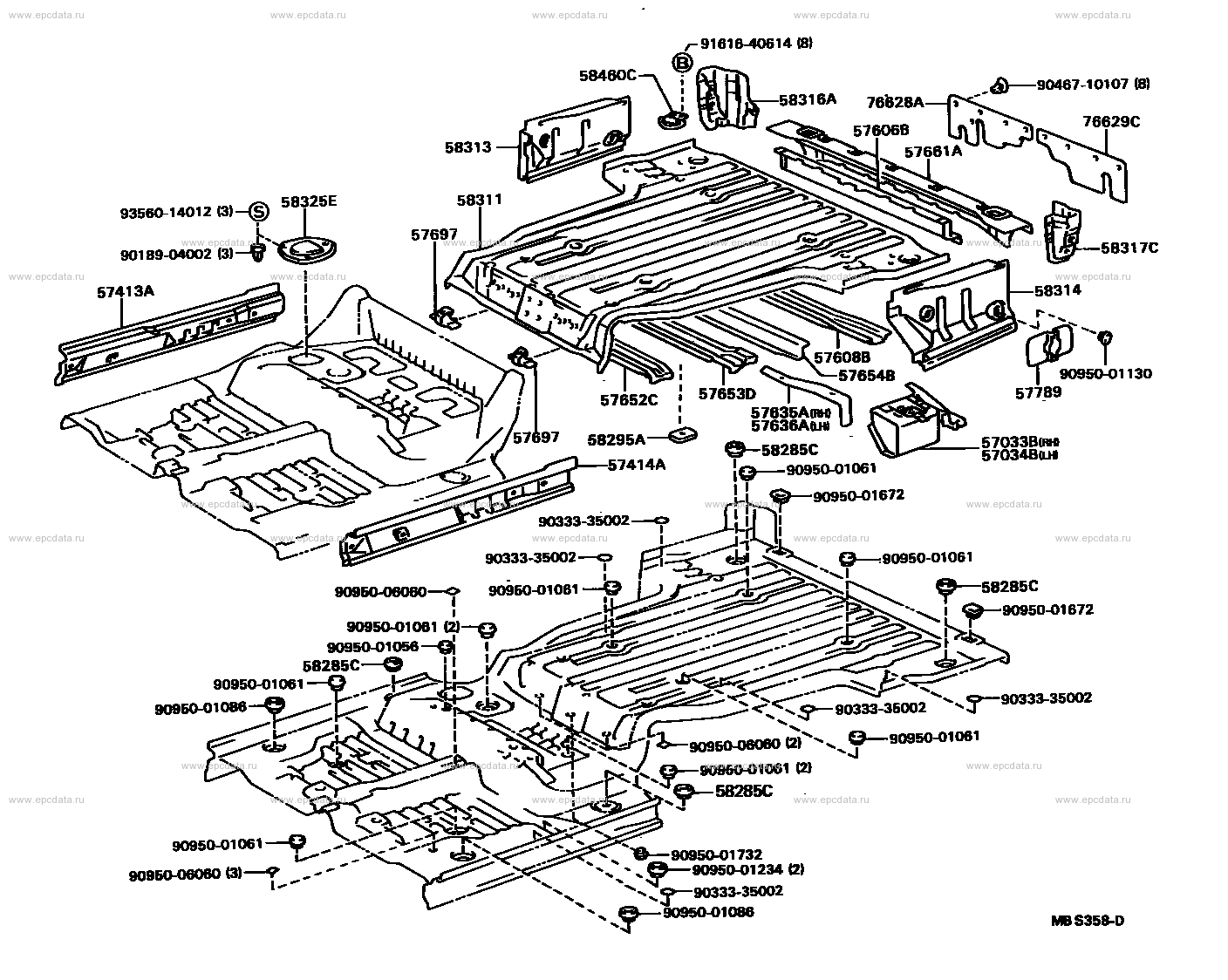

Click part number in the scheme or in the list:
9161640614 ** Std Part
58460C STRIKER ASSY, LUGGAGE HOLD BELT
9046710107 ** Std Part
58316A EXTENSION, REAR FLOOR SIDE PANEL, REAR RH
76628A MUDGUARD, REAR BODY, REAR
76629C MUDGUARD, REAR BODY, REAR LH
57606B MEMBER SUB-ASSY, REAR FLOOR CROSS INNER
58313 PANEL, REAR FLOOR SIDE, RH
57661A PANEL, REAR FLOOR REAR CROSS, OUTER
58311 PAN, REAR FLOOR
58325E COVER, REAR FLOOR SERVICE HOLE
9356014012 ** Std Part
57697 RETAINER, REAR SEAT CUSHION
58317C EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
9018904002 ** Std Part
58314 PANEL, REAR FLOOR SIDE, LH
57413A MEMBER, FLOOR SIDE, INNER REAR RH
57608B MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
9095001130 ** Std Part
57654B MEMBER, REAR FLOOR CROSS, NO.3
57789 REINFORCEMENT, REAR FLOOR MOUNTING
57653D MEMBER, REAR FLOOR CROSS, NO.2
57652C MEMBER, REAR FLOOR CROSS, NO.1
57635A REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH
57636A REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
58295A REINFORCEMENT, SEAT BELT ANCHOR FLOOR
57033B BRACKET SUB-ASSY, REAR FLOOR MOUNTING, NO.2 RH
58285C COVER, REAR FLOOR HOLE
57034B BRACKET SUB-ASSY, REAR FLOOR MOUNTING, NO.2 LH
57414A MEMBER, FLOOR SIDE, INNER REAR LH
9095001061 ** Std Part
9095001672 ** Std Part
9033335002 ** Std Part
9095006060 ** Std Part
9095001056 ** Std Part
9095001086 ** Std Part
9095001732 ** Std Part
9095001234 ** Std Part |
