Wiring & clamp for Camry GSV40L
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
Click part number in the scheme or in the list: 82824 CONNECTOR, WIRING HARNESS82111 WIRE, ENGINE ROOM MAIN 9008017244 ** Std Part 90119A0160 ** Std Part 90119A0038 ** Std Part 9008011391 ** Std Part 9008011545 ** Std Part ** 84-01 9008011546 ** Std Part |
Scheme 2
|
Click part number in the scheme or in the list: 82121 WIRE, ENGINE82122 WIRE, ENGINE, NO.2 82661D COVER, RELAY BLOCK, SIDE NO.1 82823A CAP, TERMINAL, NO.2 82824E CONNECTOR, WIRING HARNESS 90119A0142 ** Std Part 9008011354 ** Std Part 90119A0072 ** Std Part 9008012001 ** Std Part 90178A0023 ** Std Part 82219A WIRE, SENSOR 9008011545 ** Std Part |
Scheme 3
|
Click part number in the scheme or in the list: 9008011545 ** Std Part90119A0038 ** Std Part 82141 WIRE, INSTRUMENT PANEL 82666A HOLDER, CONNECTOR NO.2 82666C HOLDER, CONNECTOR NO.4 82670 BLOCK ASSY, JUNCTION, NO.1 82673 BRACKET, JUNCTION BLOCK 82671 BLOCK, JUNCTION 82821A COVER, CONNECTOR 82824P CONNECTOR, WIRING HARNESS 90178A0014 ** Std Part 82142 WIRE, INSTRUMENT PANEL, NO.2 82824X CONNECTOR, WIRING HARNESS 82666F HOLDER, CONNECTOR NO.7 82824M CONNECTOR, WIRING HARNESS 82824W CONNECTOR, WIRING HARNESS 82825M CONNECTOR, WIRING HARNESS 82824N CONNECTOR, WIRING HARNESS 82345B DIODE 82666B HOLDER, CONNECTOR NO.3 82825L CONNECTOR, WIRING HARNESS 82824T CONNECTOR, WIRING HARNESS 82824H CONNECTOR, WIRING HARNESS 82824S CONNECTOR, WIRING HARNESS 82666D HOLDER, CONNECTOR NO.5 82824J CONNECTOR, WIRING HARNESS 82824K CONNECTOR, WIRING HARNESS |
Scheme 4
|

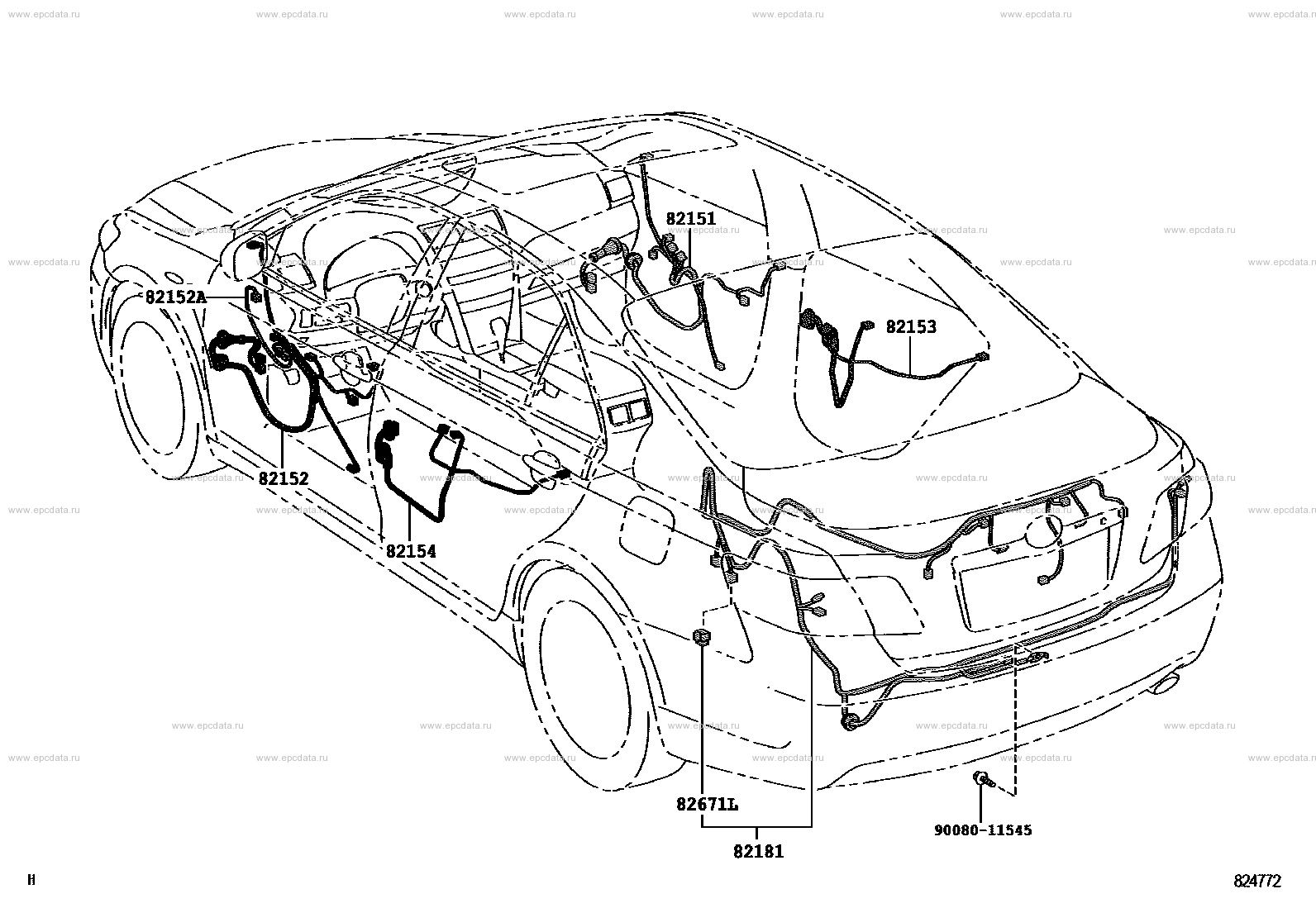

Click part number in the scheme or in the list: 82151 WIRE, FRONT DOOR, RH82152 WIRE, FRONT DOOR, LH 82152A WIRE, FRONT DOOR, NO.2, LH 82154 WIRE, REAR DOOR, NO.2 82153 WIRE, REAR DOOR, NO.1 82181 WIRE, LUGGAGE ROOM, NO.1 82671L BLOCK, JUNCTION, NO.4 9008011545 ** Std Part |
Scheme 5
|
Click part number in the scheme or in the list: 82161 WIRE, FLOOR82162 WIRE, FLOOR, NO.2 82163 WIRE, FLOOR, NO.3 82171 WIRE, ROOF, NO.1 82666E HOLDER, CONNECTOR NO.6 82666G HOLDER, CONNECTOR NO.8 82824D CONNECTOR, WIRING HARNESS 82824F CONNECTOR, WIRING HARNESS 82824G CONNECTOR, WIRING HARNESS 9008011545 ** Std Part 82345A DIODE ** 81-21 ** 84-20 |
Scheme 6
|
Click part number in the scheme or in the list: 82191 WIRE, FRONT SEAT, RH82192 WIRE, FRONT SEAT, LH |
Scheme 7
Scheme 8
|
Click part number in the scheme or in the list: 82001 CABLE, BOND, NO.182001C CABLE, BOND, NO.2 8271134310 ** Std Part 9008010348 ** Std Part 9008011545 ** Std Part 90119A0160 ** Std Part ** 86-01 |
Scheme 9
