Alternator for Hilux KUN25L

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 27020 ALTERNATOR ASSY 27415 PULLEY, ALTERNATOR W/CLUTCH 27416 CAP, ALTERNATOR PULLEY 90178T0071 ** Std Part 27310 FRAME ASSY, DRIVE END, ALTERNATOR 27310B BEARING (FOR ALTERNATOR DRIVE END FRAME) 27312 PLATE, RETAINER 9006800022 ** Std Part 27330 ROTOR ASSY, ALTERNATOR 27384 WASHER 27387 INSULATOR, TERMINAL 27360 COIL ASSY,ALTERNATOR 27370 HOLDER ASSY, ALTERNATOR BRUSH 9006804033 ** Std Part 9006805010 ** Std Part 27039 COVER, ALTERNATOR REAR END 27020E BOLT (FOR ALTERNATOR) 9006800023 ** Std Part

Scheme 2

Open full size scheme Go to top

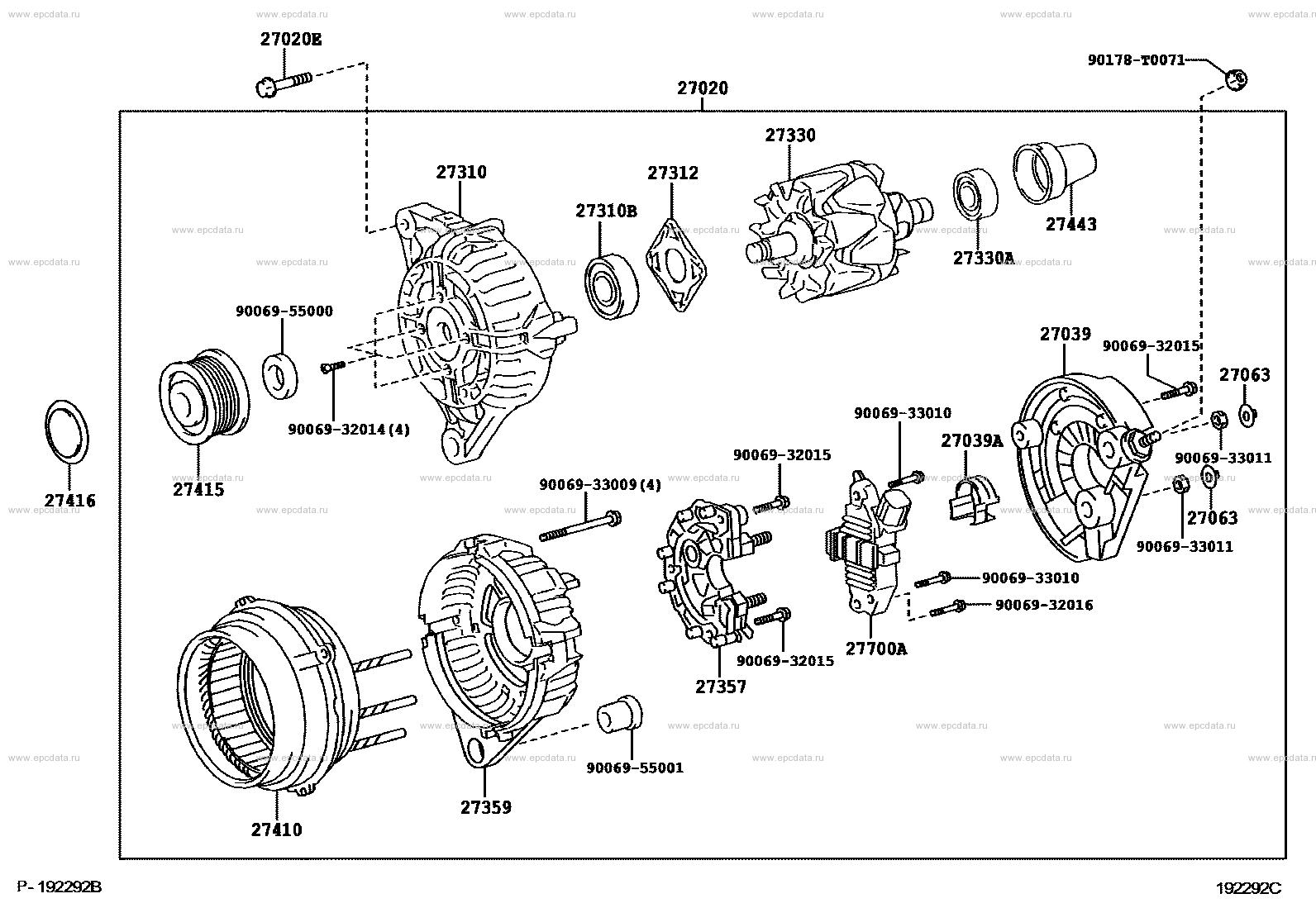

Click part number in the scheme or in the list: 27310 FRAME ASSY, DRIVE END, ALTERNATOR 27020 ALTERNATOR ASSY 27416 CAP, ALTERNATOR PULLEY 27020E BOLT (FOR ALTERNATOR) 27312 PLATE, RETAINER 27310B BEARING (FOR ALTERNATOR DRIVE END FRAME) 27330 ROTOR ASSY, ALTERNATOR 27357 HOLDER, ALTERNATOR, W/RECTIFIER 27359 FRAME, ALTERNATOR RECTIFIER END 27410 STATOR ASSY, ALTERNATOR 27039 COVER, ALTERNATOR REAR END 27039A COVER, ALTERNATOR REAR END, NO.2 90178T0071 ** Std Part 9006932014 ** Std Part 9006955001 ** Std Part 9006933011 ** Std Part 9006933010 ** Std Part 9006932015 ** Std Part 9006933009 ** Std Part 9006955000 ** Std Part 27415 PULLEY, ALTERNATOR W/CLUTCH 9006932016 ** Std Part 27330A BEARING (FOR ALTERNATOR ROTOR) 27443 COVER, ALTERNATOR BEARING 27063 COVER SUB-ASSY, ALTERNATOR 27700A REGULATOR ASSY, GENERATOR

Hilux KUN25L
