Rear spring & shock absorber for Hilux KUN26R

Click on the part subgroup below to get genuine part numbers.

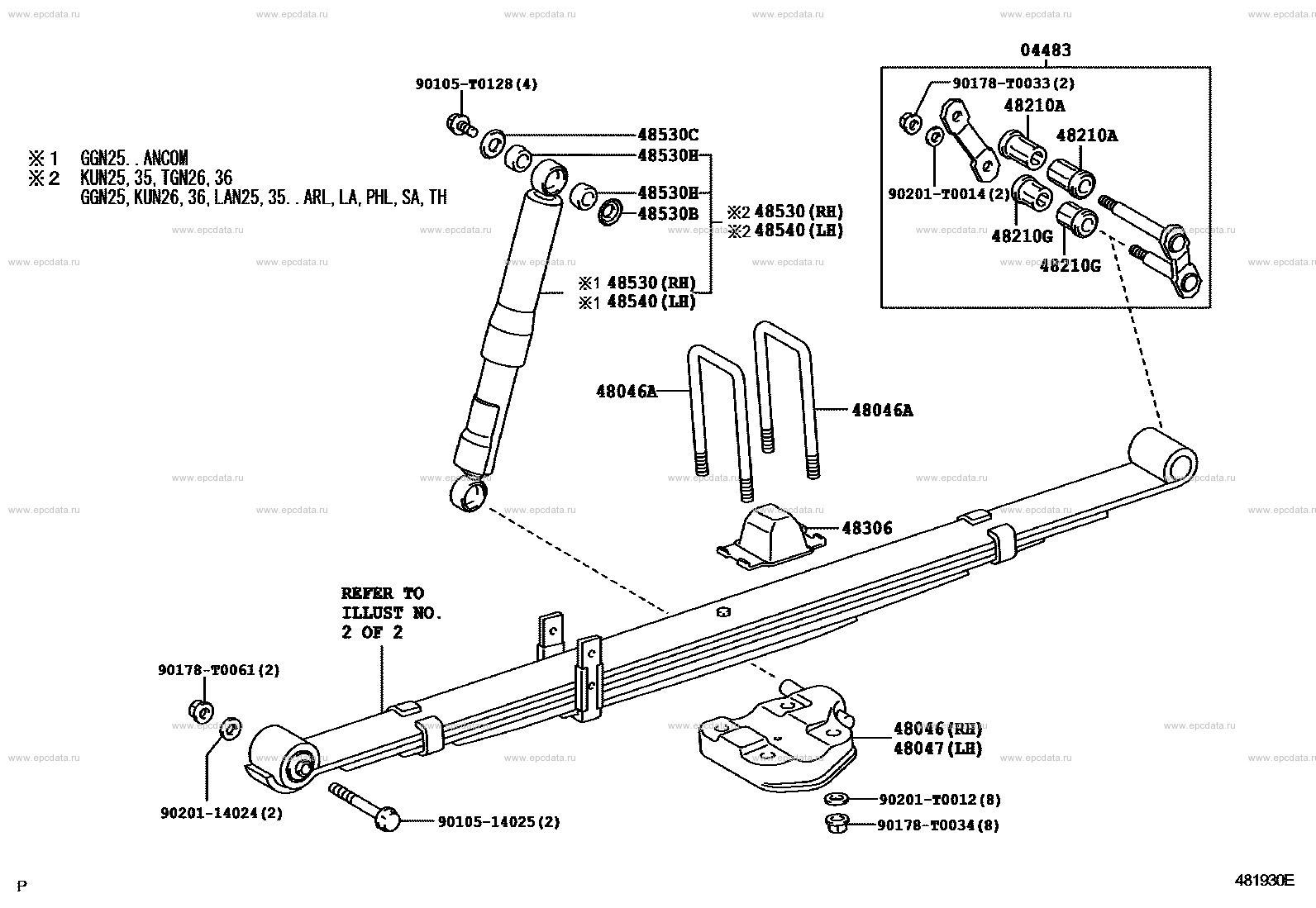

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 48540 ABSORBER ASSY, SHOCK, REAR LH 04483 SHACKLE KIT, REAR SPRING 48530 ABSORBER ASSY, SHOCK, REAR RH 48047 SEAT SUB-ASSY, SPRING U BOLT, LH 48046 SEAT SUB-ASSY, SPRING U BOLT, RH 48046A BOLT, U (FOR REAR SPRING) 48530H BUSH, REAR SHOCK ABSORBER 48530B WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48210A BUSH (FOR REAR SPRING SHACKLE UPPER) 48210G BUSH (FOR REAR SPRING SHACKLE LOWER) 48530C WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48306 BUMPER SUB-ASSY, REAR SPRING 90105T0128 ** Std Part 90178T0034 ** Std Part 90201T0012 ** Std Part 9010514025 ** Std Part 90178T0061 ** Std Part 90201T0014 ** Std Part 90178T0033 ** Std Part 9020114024 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 48210 SPRING ASSY, REAR RH 48220 SPRING ASSY, REAR LH 48210C BUSH (FOR REAR SPRING LEAF) 48211 LEAF, REAR SPRING, NO.1 48213 LEAF, REAR SPRING, NO.3 48247 BOLT, REAR SPRING, CENTER 48212 LEAF, REAR SPRING, NO.2 48248B SPACER, REAR SPRING, NO.3 48252 SILENCER, REAR SPRING 48261 LEAF, REAR HELPER SPRING, NO.1 48253 SPACER, REAR SPRING, NO.1 48262 LEAF, REAR HELPER SPRING, NO.2 48284 NUT, REAR SPRING CENTER BOLT

Hilux KUN26R
