Mirror for Land Cruiser BJ40LV

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 87910 MIRROR ASSY, OUTER REAR VIEW, RH 87940 MIRROR ASSY, OUTER REAR VIEW, LH 9451200800 ** Std Part 87902 SUPPORT, REAR VIEW OUTSIDE MIRROR, RH 87903 SUPPORT, REAR VIEW OUTSIDE MIRROR, LH 87927 PACKING, REAR VIEW OUTSIDE MIRROR STAY 9323066020 ** Std Part 9010508003 ** Std Part 9322068020 ** Std Part

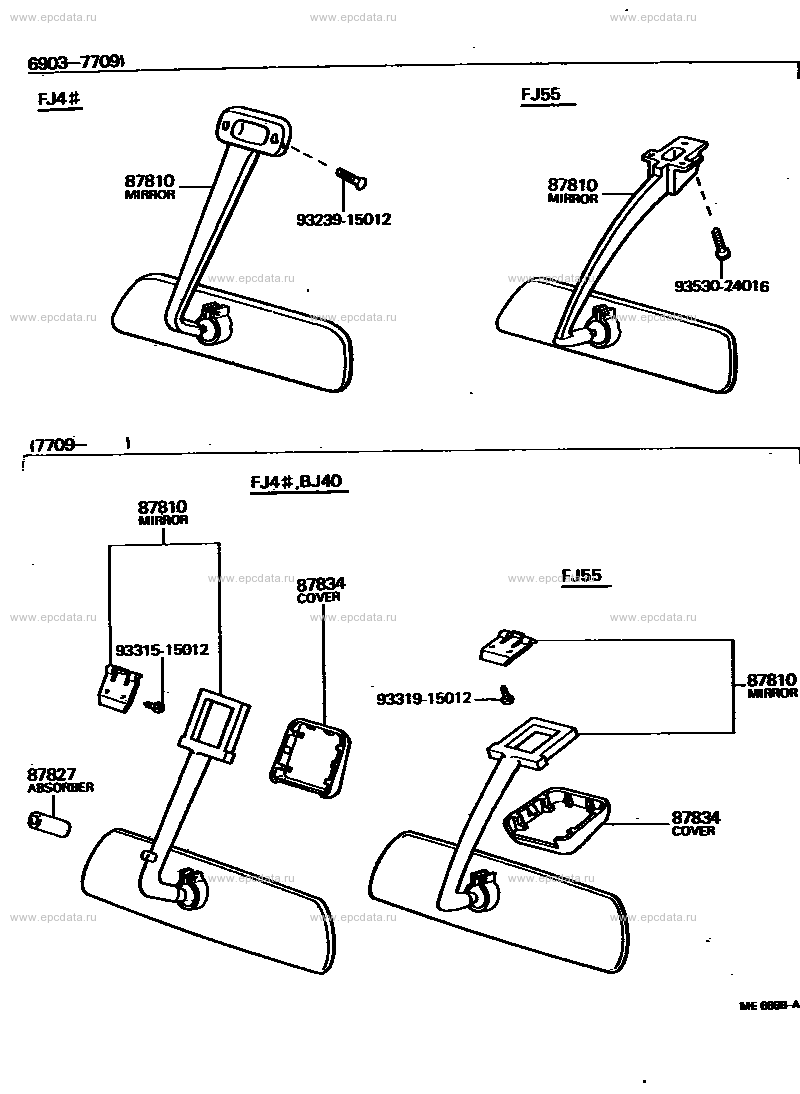

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 87810 MIRROR ASSY, INNER REAR VIEW 9323915012 ** Std Part 9353024016 ** Std Part 87834 COVER, INNER REAR VIEW MIRROR STAY HOLDER 9331515012 ** Std Part 9331915012 ** Std Part 87827 ABSORBER, INNER REAR VIEW MIRROR

Land Cruiser BJ40LV
