Seat & seat track for Land Cruiser FJ45LP
Click on the part subgroup below to get genuine part numbers.

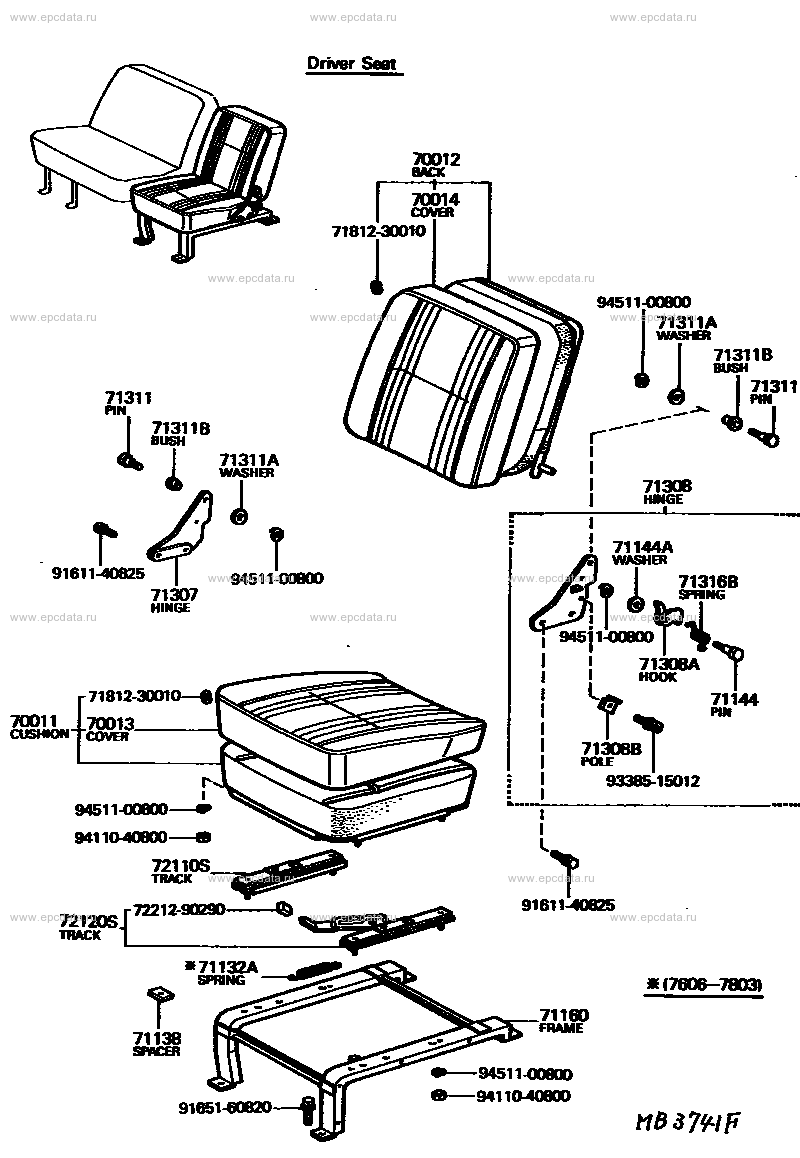

Scheme 1
Scheme 2
|
Click part number in the scheme or in the list: 71242 HINGE, PASSENGER SEAT BACK, RH71311 PIN, FRONT SEAT HINGE 71311B BUSH (FOR FRONT SEAT HINGE PIN) 71144 PIN, SEAT HINGE HOOK 71311A WASHER, PLATE (FOR FRONT SEAT HINGE PIN) 71242A HOOK, PASSENGER SEAT HINGE, RH 9451100800 ** Std Part 71316A SPRING, TORSION, NO.1 71144A WASHER, PLATE (FOR SEAT HINGE HOOK PIN) 70012 BACK ASSY, NO.1 SEAT 70014 COVER ASSY, NO.1 SEAT BACK 7181230010 ** Std Part 9331515012 ** Std Part 71242B POLE, PASSENGER SEAT HINGE HOOK, RH 9161140825 ** Std Part 70011 CUSHION ASSY, NO.1 SEAT 70013 COVER ASSY, NO.1 SEAT CUSHION 9165160820 ** Std Part 71243 HINGE, PASSENGER SEAT BACK, LH 9054110009 ** Std Part |
Scheme 3
