Roof panel & back panel for Land Cruiser FJ60LV

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 61277A JOINT, ROOF DRIP CHANNEL 63111 PANEL, ROOF 63105A FRAME SUB-ASSY, BACK DOOR OPENING 63145 REINFORCEMENT, WINDSHIELD HEADER INNER PANEL 63132 PANEL, WINDSHIELD HEADER, INNER 63104 REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER 9326016010 ** Std Part

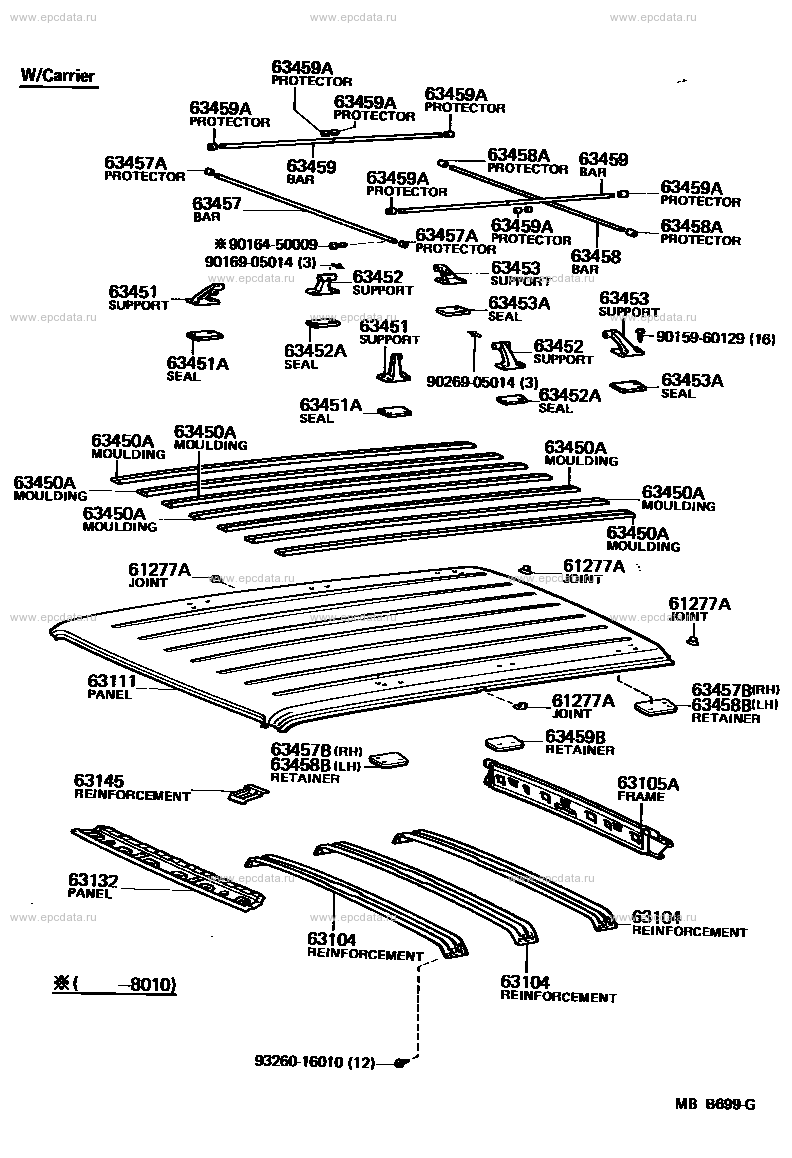

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 63459A PROTECTOR, ROOF CARRIER, SIDE BAR 63458A PROTECTOR, ROOF CARRIER, REAR BAR 63459 BAR, ROOF CARRIER, SIDE 63457A PROTECTOR, ROOF CARRIER, FRONT BAR 63457 BAR, ROOF CARRIER, FRONT 9016450009 ** Std Part 63458 BAR, ROOF CARRIER, REAR 9016905014 ** Std Part 63453 SUPPORT, ROOF CARRIER, NO.3 63452 SUPPORT, ROOF CARRIER, NO.2 63451 SUPPORT, ROOF CARRIER, NO.1 63453A SEAL, ROOF CARRIER, NO.3 SUPPORT 9015960129 ** Std Part 63452A SEAL, ROOF CARRIER, NO.2 SUPPORT 63451A SEAL, ROOF CARRIER, NO.1 SUPPORT 9026905014 ** Std Part 63450A MOULDING, ROOF CARRIER 61277A JOINT, ROOF DRIP CHANNEL 63111 PANEL, ROOF 63457B RETAINER, ROOF CARRIER, NO.1 RH 63458B RETAINER, ROOF CARRIER, NO.1 LH 63459B RETAINER, ROOF CARRIER, NO.2 63145 REINFORCEMENT, WINDSHIELD HEADER INNER PANEL 63105A FRAME SUB-ASSY, BACK DOOR OPENING 63132 PANEL, WINDSHIELD HEADER, INNER 63104 REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER 9326016010 ** Std Part
