Brake tube & clamp for Land Cruiser FJ60LV

Scheme 1 Scheme 2

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Click part number in the scheme or in the list:

47312 TUBE, FRONT BRAKE, NO.2
9699110080 ** Std Part
47325 TUBE, REAR BRAKE, NO.5
47321 TUBE, REAR BRAKE, NO.1
47311 TUBE, FRONT BRAKE, NO.1
47316A HOSE, FLEXIBLE (FOR REAR BRAKE TUBE)
47322 TUBE, REAR BRAKE, NO.2
47326 TUBE, REAR BRAKE, NO.6
47341B TUBE, WHEEL CYLINDER, FRONT RH NO.1
47323 TUBE, REAR BRAKE, NO.3
47313 TUBE, FRONT BRAKE, NO.3
47313A HOSE, FLEXIBLE, NO.1 (FOR FRONT)
47311G HOSE, FLEXIBLE (FOR BRAKE TUBE)
47315 TUBE, FRONT BRAKE, NO.5
9165140820 ** Std Part
47314 TUBE, FRONT BRAKE, NO.4
47378 PROTECTOR, BRAKE TUBE
47343A TUBE, WHEEL CYLINDER, FRONT LH NO.1

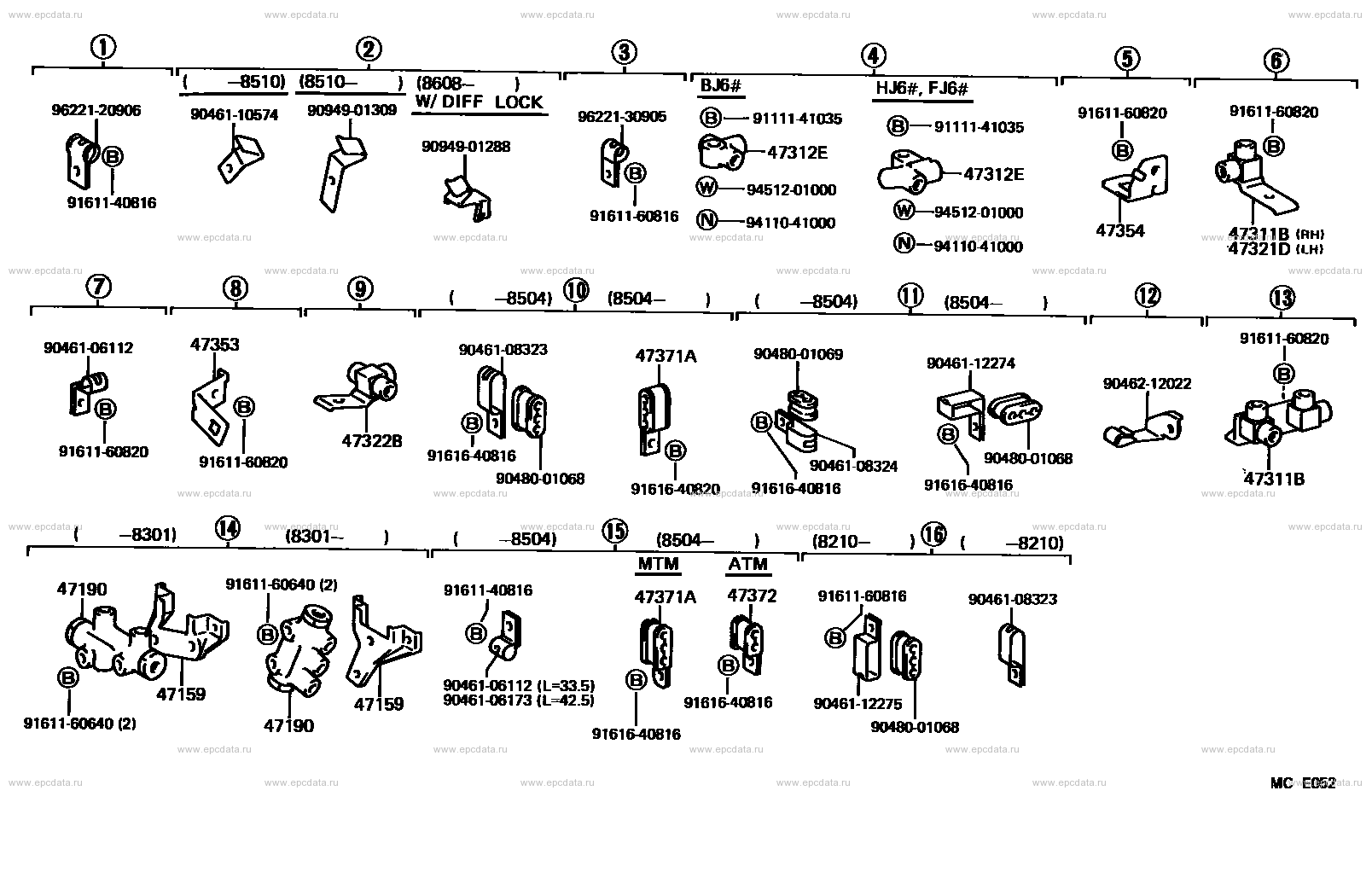

Scheme 2

Click part number in the scheme or in the list:

9622120906 ** Std Part
9094901309 ** Std Part
9161160820 ** Std Part
9046110574 ** Std Part
9622130905 ** Std Part
9111141035 ** Std Part
9094901288 ** Std Part
47312E WAY, NO.2 (FOR FRONT BRAKE TUBE)
9451201000 ** Std Part
9161140816 ** Std Part
9161160816 ** Std Part
9411041000 ** Std Part
47354 BRACKET, FRONT FLEXIBLE HOSE
47311B WAY, NO.1 (FOR FRONT BRAKE TUBE)
47321D WAY, NO.1 (FOR REAR BRAKE TUBE)
47353 BRACKET, FLEXIBLE HOSE (FOR REAR)
9046106112 ** Std Part
9046108323 ** Std Part
9048001069 ** Std Part
47371A CLAMP, BRAKE TUBE, NO.1
9046112274 ** Std Part
9046212022 ** Std Part
47322B WAY, NO.2 (FOR REAR BRAKE TUBE)
9161640816 ** Std Part
9048001068 ** Std Part
9046108324 ** Std Part
9161640820 ** Std Part
9161160640 ** Std Part
47190 VALVE ASSY, PROPORTIONING AND BY-PASS
47372 CLAMP, BRAKE TUBE, NO.2
47159 BRACKET, PROPORTIONING VALVE
9046106173 ** Std Part
9046112275 ** Std Part
