Heating & air conditioning - cooler piping for Land Cruiser FZJ70RV

Click on the part subgroup below to get genuine part numbers.

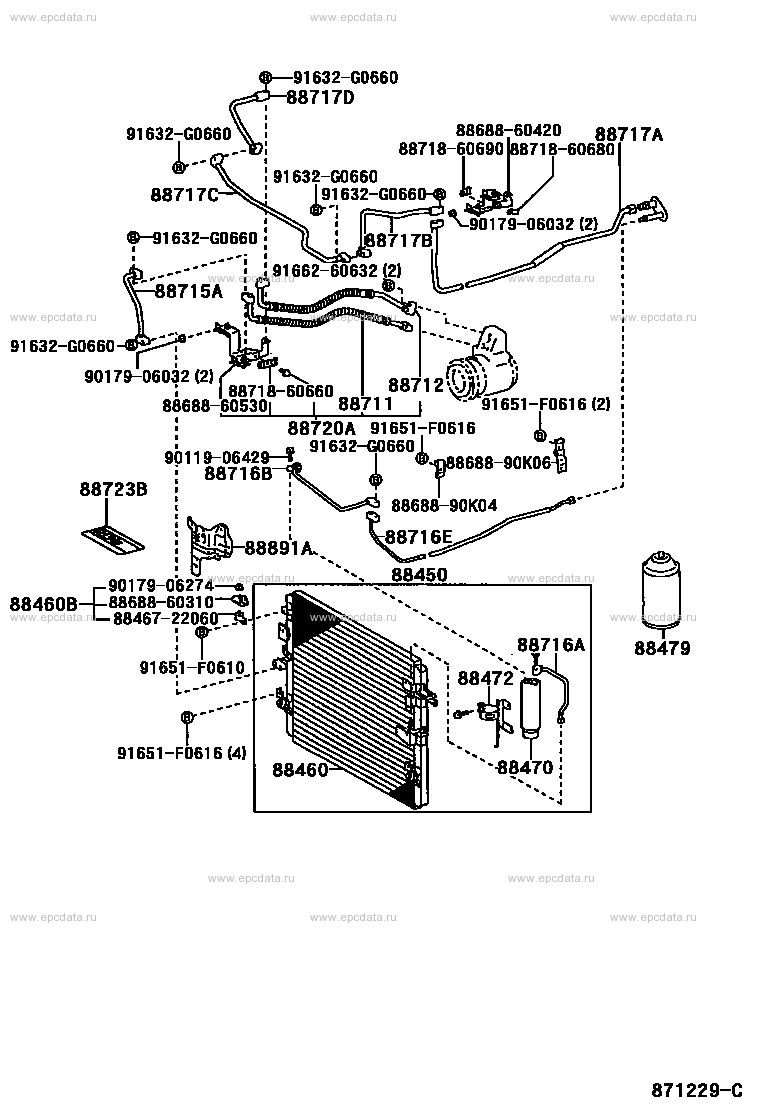

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 91632G0660 ** Std Part 88717D PIPE, COOLER REFRIGERANT SUCTION, D 8868860420 ** Std Part 88717A PIPE, COOLER REFRIGERANT SUCTION, A 8871860690 ** Std Part 8871860680 ** Std Part 88717C PIPE, COOLER REFRIGERANT SUCTION, C 9017906032 ** Std Part 88717B PIPE, COOLER REFRIGERANT SUCTION, B 9166260632 ** Std Part 88715A PIPE, COOLER REFRIGERANT DISCHARGE, A 88712 HOSE, COOLER REFRIGERANT SUCTION, NO.1 8871860660 ** Std Part 88711 HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 91651F0616 ** Std Part 8868860530 ** Std Part 88720A HOSE & ACCESSORY, AIR CONDITIONER 9011906429 ** Std Part 8868890K06 ** Std Part 88716B PIPE, COOLER REFRIGERANT LIQUID, B 88723B LABEL, COOLER SERVICE CAUTION 8868890K04 ** Std Part 88716E PIPE, COOLER REFRIGERANT LIQUID, E 88891A PACKING A (FOR COOLER) 88450 CONDENSER ASSY, W/RECEIVER 9017906274 ** Std Part 8868860310 ** Std Part 88460B BRACKET, COOLER CONDENSER, NO.1 8846722060 ** Std Part 88716A PIPE, COOLER REFRIGERANT LIQUID, A 88479 FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 91651F0610 ** Std Part 88472 BRACKET, RECEIVER TANK, NO.1 88470 RECEIVER AND DRYER ASSY, COOLER 88460 CONDENSER ASSY, COOLER

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9009914120 ** Std Part 9009914119 ** Std Part 9009914121 ** Std Part

Land Cruiser FZJ70RV
