Front bumper & bumper stay for Land Cruiser HZJ76R

Click on the part subgroup below to get genuine part numbers.

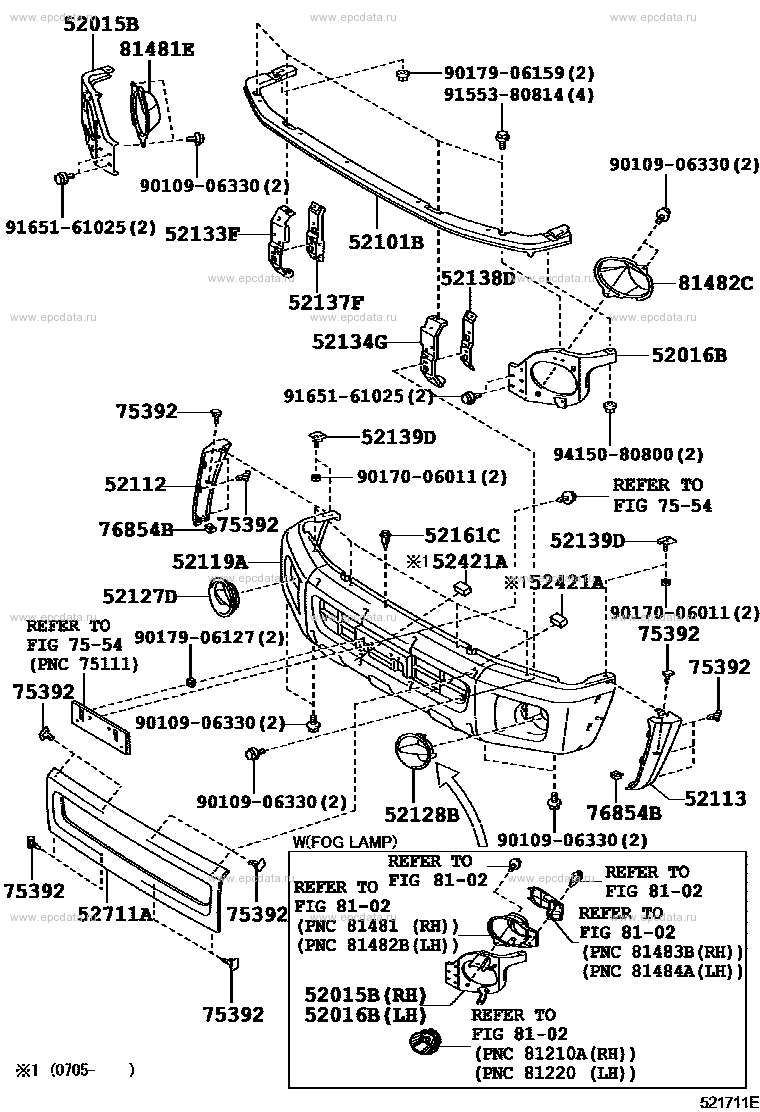

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 52015B BRACKET SUB-ASSY, FRONT BUMPER, RH 52101B PLATE SUB-ASSY, FRONT BUMPER REINFORCEMENT 52119A COVER, FRONT BUMPER 52127D COVER, FRONT BUMPER HOLE, RH 76854B RETAINER, FRONT SPOILER,NO.2 75392 RETAINER, OUTSIDE MOULDING 52139D PLATE, FR BUMPER BRACKET, NO.3 52161C PIECE, FRONT BUMPER 52711A GARNISH, FRONT BUMPER 81481E COVER, FOG LAMP, RH 9155380814 ** Std Part 81482C COVER, FOG LAMP, LH 9017906127 ** Std Part 9010906330 ** Std Part 52128B COVER, FRONT BUMPER HOLE, LH 9017006011 ** Std Part ** 75-54 52133F BRACKET, FRONT BUMPER, RH 52134G BRACKET, FRONT BUMPER, LH 52137F BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 52138D BRACKET, FRONT BUMPER ARM MOUNTING, NO.4 52016B BRACKET SUB-ASSY, FRONT BUMPER, LH 9165161025 ** Std Part 9017906159 ** Std Part 9415080800 ** Std Part 52112 BAR, FRONT BUMPER, RH 52113 BAR, FRONT BUMPER, LH ** 81-02 52421A PAD, FRONT BUMPER

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9017006011 ** Std Part 52015B BRACKET SUB-ASSY, FRONT BUMPER, RH ** 81-02 9010906330 ** Std Part 9017906159 ** Std Part 9155380814 ** Std Part 9165161025 ** Std Part 9011912200 ** Std Part 9011912367 ** Std Part 9415080800 ** Std Part 52139D PLATE, FR BUMPER BRACKET, NO.3 52711A GARNISH, FRONT BUMPER 53285M SEAL, RADIATOR SIDE AIR, RH 52130 BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH 53286D SEAL, RADIATOR SIDE AIR, LH 81481E COVER, FOG LAMP, RH 81482C COVER, FOG LAMP, LH 52119A COVER, FRONT BUMPER 52049 COVER SUB-ASSY, FRONT BUMPER WINCH ** 75-54 9017906127 ** Std Part 75392 RETAINER, OUTSIDE MOULDING 76854B RETAINER, FRONT SPOILER,NO.2 52161C PIECE, FRONT BUMPER 52421A PAD, FRONT BUMPER 52016B BRACKET SUB-ASSY, FRONT BUMPER, LH 52101B PLATE SUB-ASSY, FRONT BUMPER REINFORCEMENT 52138D BRACKET, FRONT BUMPER ARM MOUNTING, NO.4 52127D COVER, FRONT BUMPER HOLE, RH 52128B COVER, FRONT BUMPER HOLE, LH 52137F BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 52112 BAR, FRONT BUMPER, RH 52113 BAR, FRONT BUMPER, LH

Land Cruiser HZJ76R
