Side member for Land Cruiser HZJ76R

Click on the part subgroup below to get genuine part numbers.

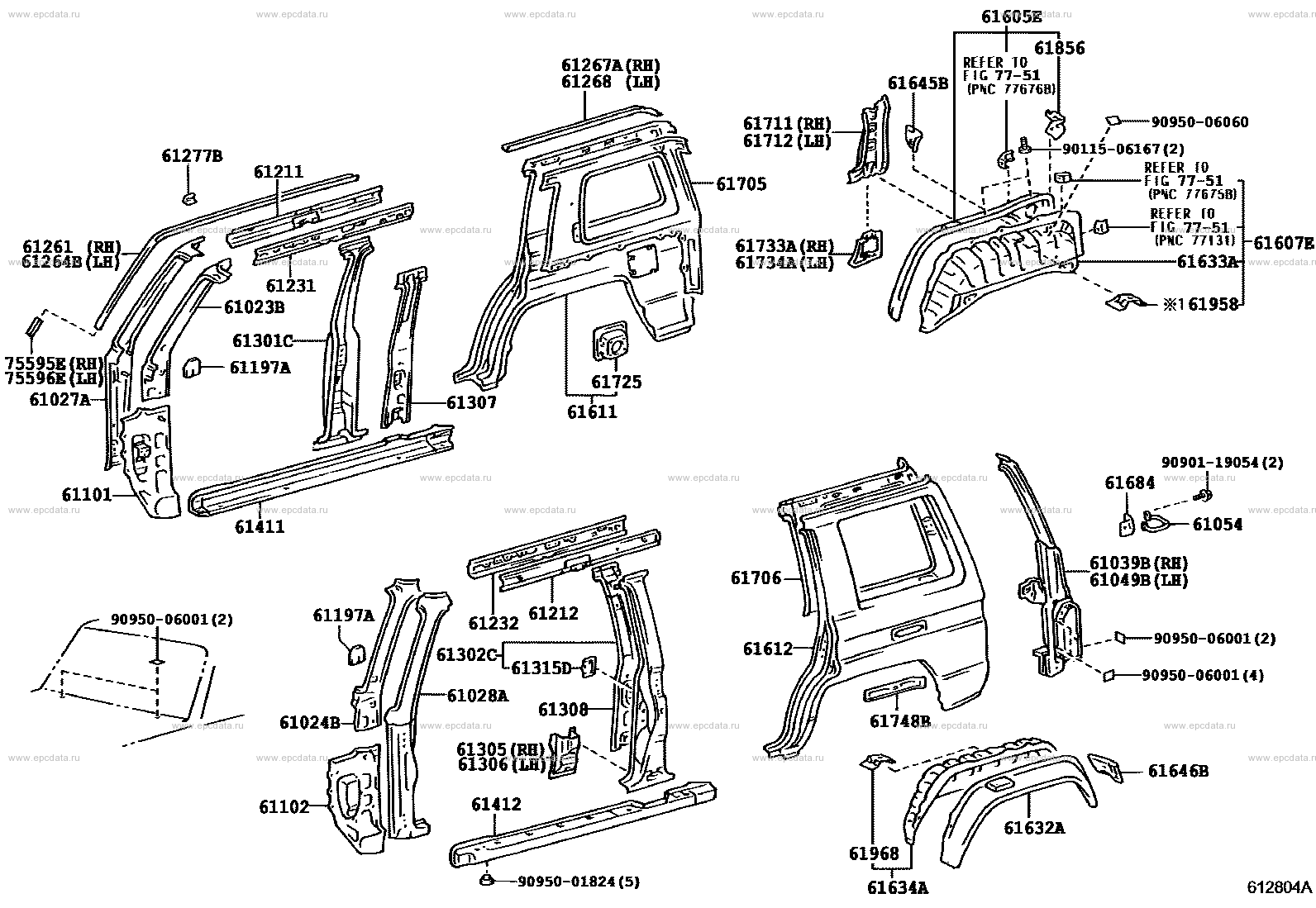

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 61277B JOINT, ROOF DRIP CHANNEL 61261 CHANNEL, ROOF DRIP, RH 61264B CHANNEL, ROOF DRIP SIDE, FRONT LH 61231 RAIL, ROOF SIDE, INNER RH 61023B PILLAR SUB-ASSY, FRONT BODY, INNER RH 61301C PILLAR SUB-ASSY, CENTER BODY, OUTER RH 61197A COVER, FRONT PILLAR, RH 61027A PILLAR SUB-ASSY, FRONT BODY, OUTER RH 75595E COVER, ROOF DRIP SIDE MOULDING END, FRONT RH 75596E COVER, ROOF DRIP SIDE MOULDING END, FRONT LH 61211 RAIL, ROOF SIDE, OUTER RH 61307 PILLAR SUB-ASSY, CENTER BODY, INNER RH 61611 PANEL, QUARTER, RH 61725 BOX, FUEL INLET 61267A CHANNEL, ROOF DRIP SIDE, REAR RH 61268 CHANNEL, ROOF DRIP SIDE, REAR LH 61711 PANEL, ROOF SIDE, OUTER RH 61712 PANEL, ROOF SIDE, OUTER LH 61705 PANEL SUB-ASSY, ROOF SIDE, INNER RH 61733A PANEL, ROOF SIDE, INNER FRONT RH 61734A PANEL, ROOF SIDE, INNER FRONT LH 61605E PANEL SUB-ASSY, QUARTER WHEEL HOUSE, OUT RH 61645B GUSSET, QUARTER WHEEL HOUSE, REAR RH ** 77-51 9090119054 ** Std Part 9095006060 ** Std Part 61684 ORNAMENT, QUARTER PANEL STEP, NO.1 LH 61607E PANEL, QUARTER WHEEL HOUSE, INNER RH 61633A PANEL, QUARTER WHEEL HOUSE, INNER RH 61856 BRACKET, REAR WASHER TANK, LOWER 61054 STEP SUB-ASSY, QUARTER PANEL, NO.1 LH 61039B REINFORCE SUB-ASSY, REAR PILLAR, UPPER RH 61049B REINFORCE SUB-ASSY, REAR PILLAR, UPPER LH 61646B GUSSET, QUARTER WHEEL HOUSE, REAR LH 61968 BRACKET, REAR SEAT LEG, NO.1 LH 61634A PANEL, QUARTER WHEEL HOUSE, INNER LH 61632A PANEL, QUARTER WHEEL HOUSE, OUTER LH 61612 PANEL, QUARTER, LH 61706 PANEL SUB-ASSY, ROOF SIDE, INNER LH 61412 PANEL, ROCKER, OUTER LH 61102 PANEL SUB-ASSY, COWL SIDE, LH 61024B PILLAR SUB-ASSY, FRONT BODY, INNER LH 61411 PANEL, ROCKER, OUTER RH 61101 PANEL SUB-ASSY, COWL SIDE, RH 61212 RAIL, ROOF SIDE, OUTER LH 61232 RAIL, ROOF SIDE, INNER LH 61302C PILLAR SUB-ASSY, CENTER BODY, OUTER LH 61315D RETAINER, DOOR LOCK STRIKER, LH 61308 PILLAR SUB-ASSY, CENTER BODY, INNER LH 61028A PILLAR SUB-ASSY, FRONT BODY, OUTER LH 61305 REINFORCE SUB-ASSY, CENTER BODY PILLAR LOWER RH 61306 REINFORCE SUB-ASSY, CENTER BODY PILLAR LOWER LH 61748B REINFORCEMENT, ROOF SIDE, INNER REAR, LH 9095001824 ** Std Part 9095006001 ** Std Part 61958 BRACKET, REAR SEAT LEG, NO.1 RH 9011506167 ** Std Part

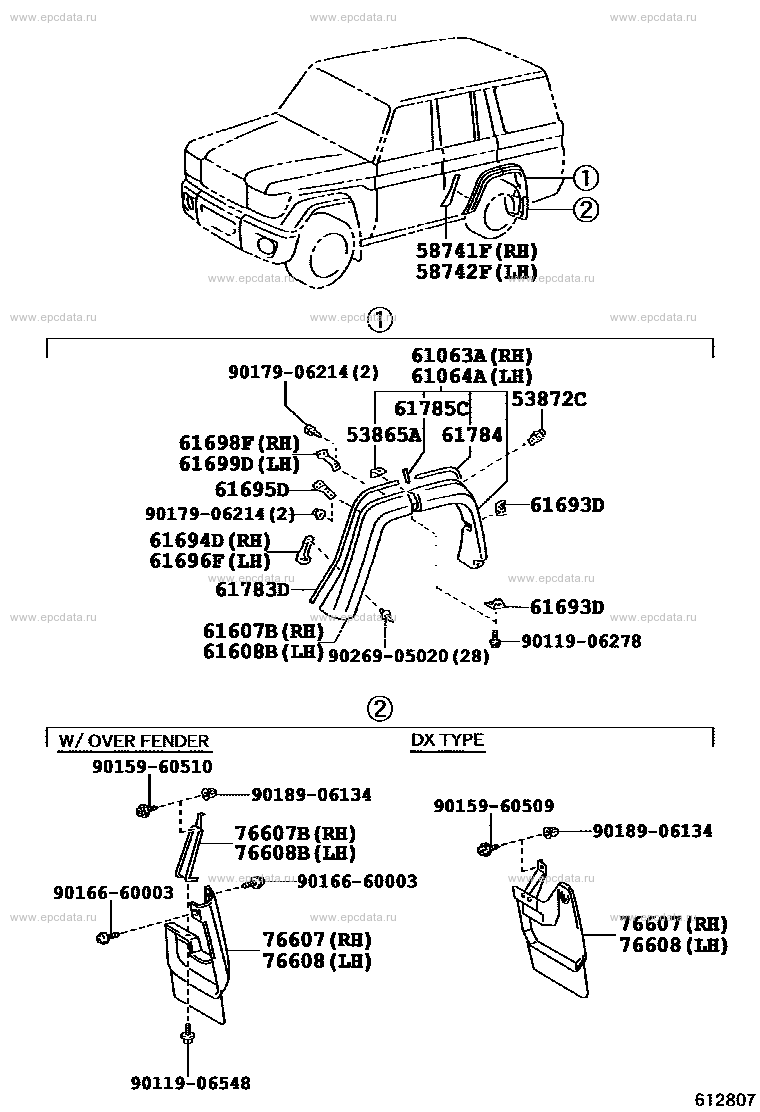

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 53865A BRACKET, REAR WHEEL OPENING, NO.3 53872C BRACKET, REAR WHEEL OPENING, NO.8 61063A EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH 61064A EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH 61607B EXTENSION SUB-ASSY, REAR WHEEL OPENING, RH 61608B EXTENSION SUB-ASSY, REAR WHEEL OPENING, LH 61693D BRACKET, REAR WHEEL OPENING, NO.1 61694D BRACKET, REAR WHEEL OPENING, NO.2 61695D BRACKET, REAR WHEEL OPENING, NO.3 61696F BRACKET, REAR WHEEL OPENING, NO.2 LH 61698F BRACKET, REAR WHEEL OPENING, NO.4 61699D BRACKET, REAR WHEEL 58741F PROTECTOR, REAR WHEEL EXTENSION, RH 58742F PROTECTOR, REAR WHEEL EXTENSION, LH 61783D PAD, REAR WHEEL OPENING EXTENSION, NO.1 61784 PAD, REAR WHEEL OPENING EXTENSION, NO.2 61785C PAD, REAR WHEEL OPENING EXTENSION, NO.3 76607 MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH 76608 MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH 76608B BRACKET, QUARTER PANEL REAR MUDGUARD, LH 76607B BRACKET, QUARTER PANEL REAR MUDGUARD, RH 9011906278 ** Std Part 9011906548 ** Std Part 9015960510 ** Std Part 9015960509 ** Std Part 9017906214 ** Std Part 9018906134 ** Std Part 9016660003 ** Std Part 9026905020 ** Std Part

Land Cruiser HZJ76R
