Roof panel & back panel for Land Cruiser HZJ76R

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 63111 PANEL, ROOF 63141G REINFORCEMENT, ROOF PANEL, NO.1 63105A FRAME SUB-ASSY, BACK DOOR OPENING 63102A PANEL SUB-ASSY, WINDSHIELD HEADER 9033320001 ** Std Part 9165160614 ** Std Part

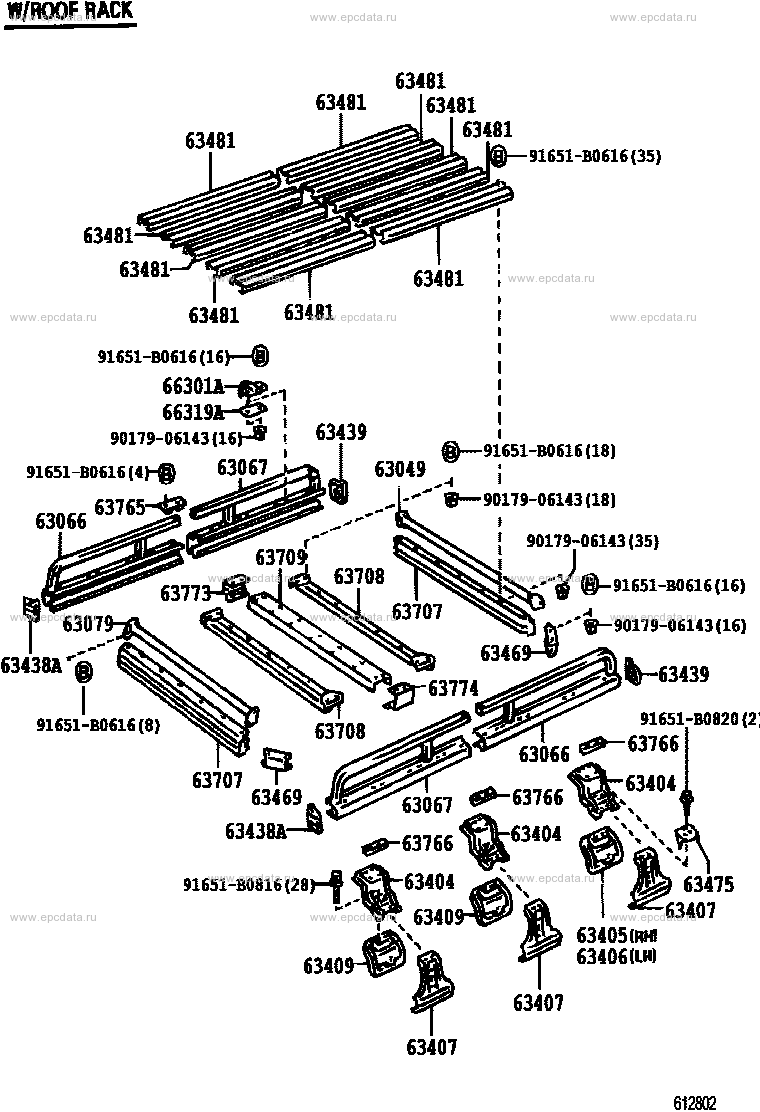

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 63481 BOARD, ROOF RACK DECK, NO.1 91651B0616 ** Std Part 66301A HOOK SUB-ASSY, ROPE 66319A PLATE, ROPE HOOK 63439 COVER, ROOF RACK END, NO.2 9017906143 ** Std Part 63067 FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH 63049 FRAME SUB-ASSY, ROOF RACK, UPPER END 63765 RETAINER, ROOF RACK, UPPER 63066 FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH 63709 FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 63708 FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 63773 GUSSET, ROOF RACK CENTER FRAME, RH 63707 FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 63079 FRAME SUB-ASSY, ROOF RACK, UPPER FRONT 63469 GUSSET, ROOF RACK LOWER FRAME 63438A COVER, ROOF RACK END, NO.1 63774 GUSSET, ROOF RACK CENTER FRAME, LH 91651B0820 ** Std Part 63766 RETAINER, ROOF RACK, LOWER 63404 LEG SUB-ASSY, ROOF RACK, FRONT 63475 STEP, ROOF RACK 91651B0816 ** Std Part 63407 SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT 63409 LEG SUB-ASSY, ROOF RACK, CENTER 63405 LEG SUB-ASSY, ROOF RACK, REAR RH 63406 LEG SUB-ASSY, ROOF RACK, REAR LH

Land Cruiser HZJ76R
