Fuel tank & tube for Land Cruiser UZJ100L
Click on the part subgroup below to get genuine part numbers.
Scheme 1

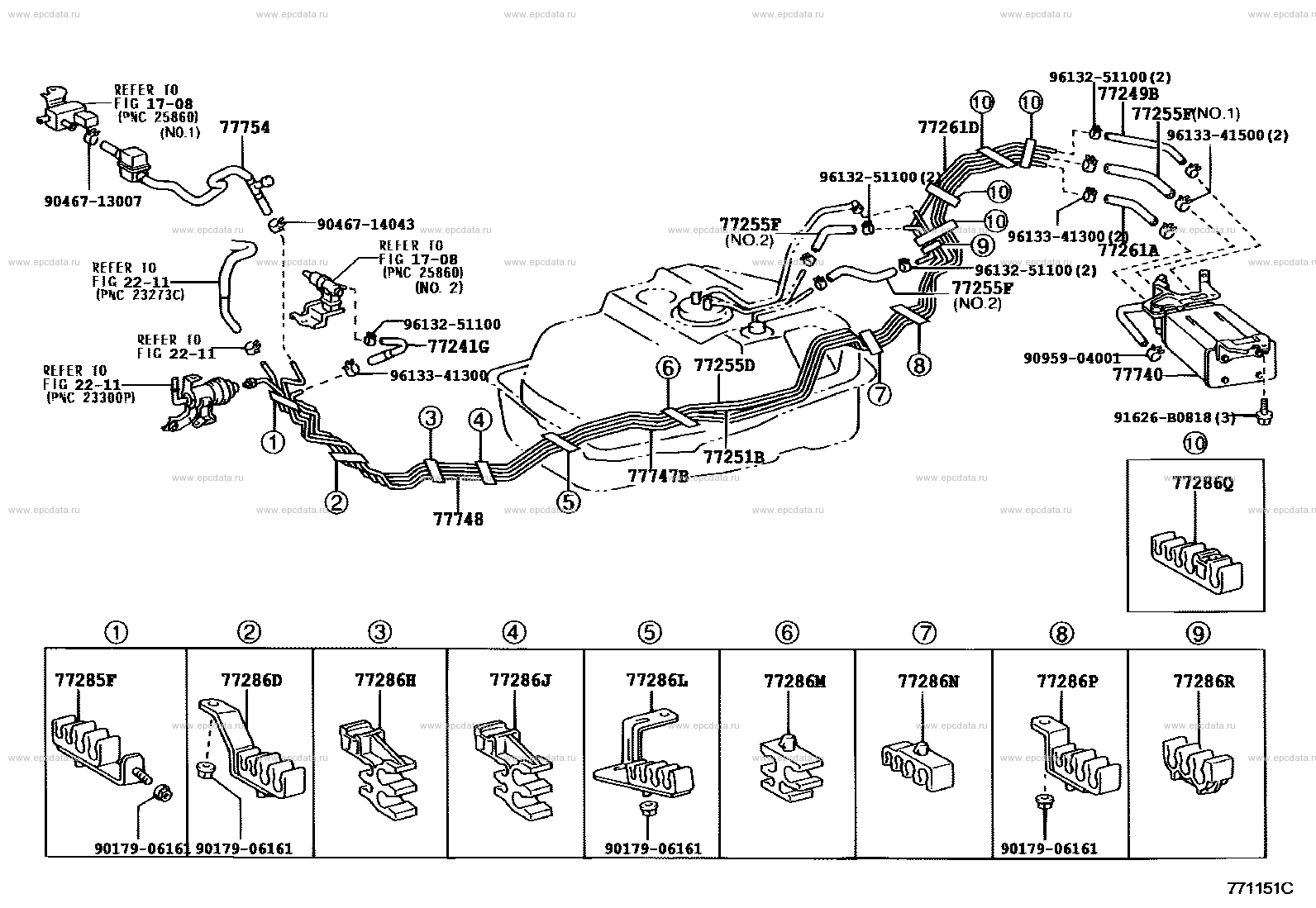

Scheme 2
|
Click part number in the scheme or in the list: 77286R CLAMP, FUEL TUBE, NO.1077286P CLAMP, FUEL TUBE, NO.8 77286N CLAMP, FUEL TUBE, NO.7 77286M CLAMP, FUEL TUBE, NO.6 77286L CLAMP, FUEL TUBE, NO.5 77286J CLAMP, FUEL TUBE, NO.4 77286H CLAMP, FUEL TUBE, NO.3 77285F CLAMP, FUEL TUBE, NO.1 77286D CLAMP, FUEL TUBE, NO.2 9017906161 ** Std Part 77286Q CLAMP, FUEL TUBE, NO.9 77740 CANISTER ASSY, CHARCOAL ** 22-11 9095904001 ** Std Part 77747B TUBE, CHARCOAL CANISTER, NO.1 77251B TUBE, FUEL MAIN 77255D TUBE, FUEL RETURN 77748 PIPE, CHARCOAL CANISTER, NO.2 9613341300 ** Std Part 77241G HOSE, FUEL, NO.6 9613251100 ** Std Part 9046713007 ** Std Part 77754 HOSE, CHARCOAL CANISTER OUTLET, NO.1 9046714043 ** Std Part 77255F HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261D TUBE, FUEL TANK TO CANISTER 77261A HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE) 9613341500 ** Std Part 77249B HOSE, FUEL ** 17-08 91626B0818 ** Std Part |
Scheme 3

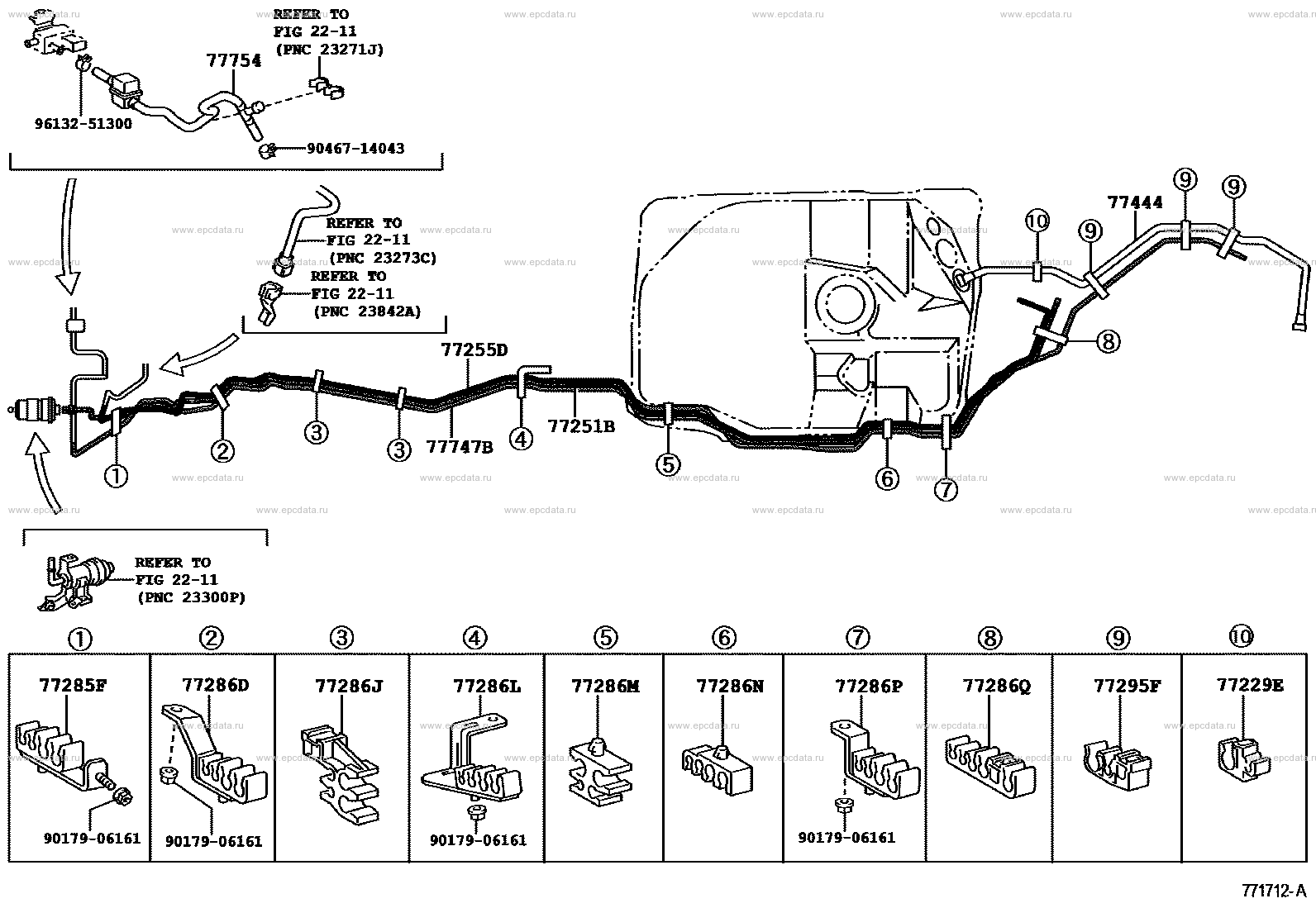

Scheme 4
|
Click part number in the scheme or in the list: 77229E CLAMP, BREATHER TUBE77255D TUBE, FUEL RETURN 77285F CLAMP, FUEL TUBE, NO.1 77286D CLAMP, FUEL TUBE, NO.2 77286J CLAMP, FUEL TUBE, NO.4 77286L CLAMP, FUEL TUBE, NO.5 77286M CLAMP, FUEL TUBE, NO.6 77286N CLAMP, FUEL TUBE, NO.7 77286P CLAMP, FUEL TUBE, NO.8 77286Q CLAMP, FUEL TUBE, NO.9 77295F GROMMET, FUEL HOSE 77444 HOSE, FUEL TANK VENT 77747B TUBE, CHARCOAL CANISTER, NO.1 77754 HOSE, CHARCOAL CANISTER OUTLET, NO.1 77251B TUBE, FUEL MAIN ** 22-11 9017906161 ** Std Part 9046714043 ** Std Part 9613251300 ** Std Part |
