Headlamp for Land Cruiser UZJ100L

Click on the part subgroup below to get genuine part numbers.

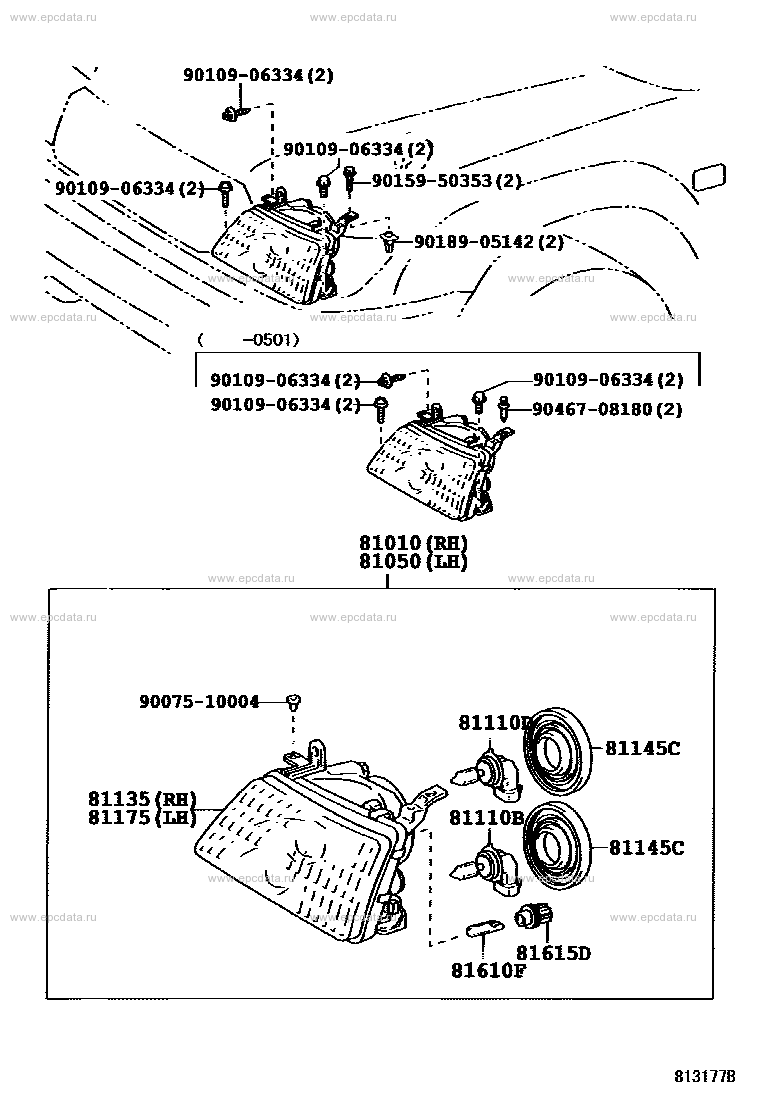

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9010906334 ** Std Part 81050 HEADLAMP ASSY, W/CLEARANCE, LH 81010 HEADLAMP ASSY, W/CLEARANCE, RH 9007510004 ** Std Part 81610F BULB (FOR CLEARANCE LAMP) 81110D BULB (FOR HEADLAMP, NO.2) 81110B BULB (FOR HEADLAMP, NO.1) 81145C COVER, HEADLAMP SOCKET NO.2 81615D SOCKET, CLEARANCE LAMP 81135 UNIT, HEADLAMP, RH 81175 UNIT, HEADLAMP, LH 9046708180 ** Std Part 9015950353 ** Std Part 9018905142 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9010906334 ** Std Part 81110D BULB (FOR HEADLAMP, NO.2) 81110B BULB (FOR HEADLAMP, NO.1) 9015950353 ** Std Part 9018905142 ** Std Part 81510C BULB (FOR FRONT TURN SIGNAL LAMP) 81515B SOCKET, FRONT TURN SIGNAL LAMP 9018904014 ** Std Part 9018905050 ** Std Part 81135 UNIT, HEADLAMP, RH 81175 UNIT, HEADLAMP, LH

Land Cruiser UZJ100L
