Switch & relay for Land Cruiser UZJ100L
Click on the part subgroup below to get genuine part numbers.

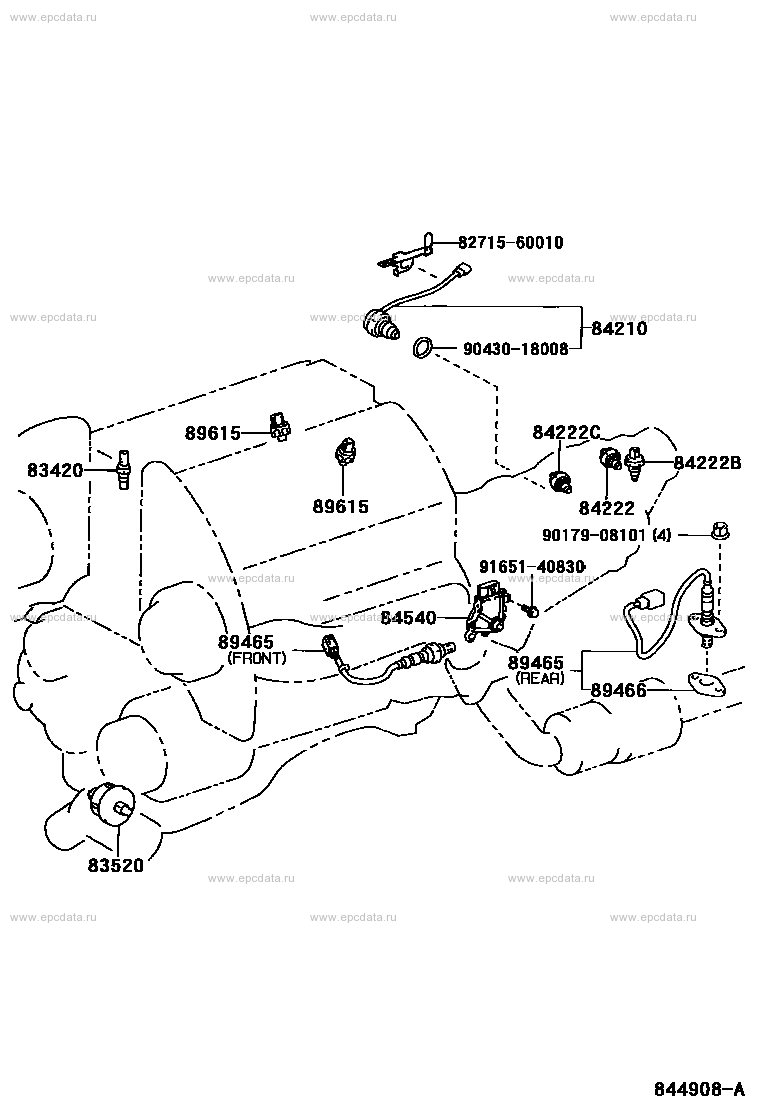

Scheme 1
|
Click part number in the scheme or in the list: 8271560010 ** Std Part84210 SWITCH ASSY, BACK UP LAMP 9043018008 ** Std Part 84222C SWITCH, TRANSFER INDICATOR, NO.3 89615 SENSOR, KNOCK CONTROL 84222B SWITCH, TRANSFER INDICATOR, NO.2 83420 GAGE ASSY, WATER TEMPERATURE SENDER 84222 SWITCH, TRANSFER INDICATOR, NO.1 9017908101 ** Std Part 9165140830 ** Std Part 84540 SWITCH ASSY, NEUTRAL START 89465 SENSOR, OXYGEN 89466 GASKET, OXYGEN SENSOR 83520 GAGE ASSY,OIL PRESSURE SENDER |
Scheme 2

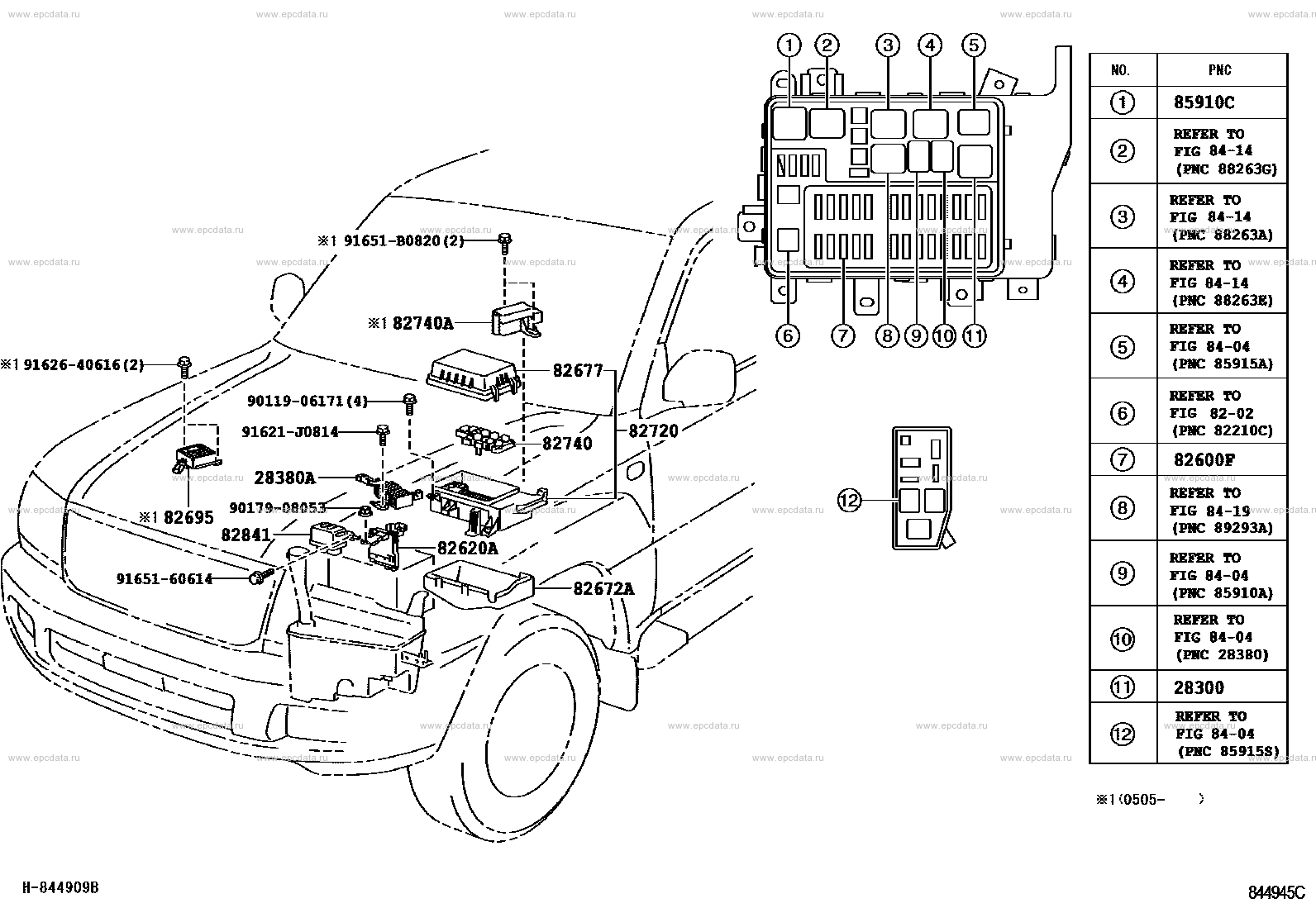

Scheme 3
|
Click part number in the scheme or in the list: 9165160614 ** Std Part82841 RELAY, RUNNING LIGHT VOLTAGE CONTROL 28380A RESISTER, FUEL PUMP 82695 RESISTOR, DAYTIME RUNNING LIGHT 91621J0814 ** Std Part 9162640616 ** Std Part 91651B0820 ** Std Part 9011906171 ** Std Part 82620A BLOCK ASSY, FUSIBLE LINK 82672A COVER, JUNCTION BLOCK 82740 BLOCK ASSY, ENGINE ROOM RELAY 82720 BLOCK ASSY, ENGINE ROOM JUNCTION 82677 COVER, JUNCTION BLOCK, UPPER NO.2 82740A BLOCK ASSY, ENGINE ROOM RELAY NO.2 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 82600F FUSE,FUSE BLOCK 28300 RELAY ASSY, STARTER 9017908053 ** Std Part ** 84-14 ** 84-04 ** 82-02 ** 84-19 |
Scheme 4
|
Click part number in the scheme or in the list: 84340 SWITCH ASSY, STOP LAMP82733A BLOCK, COWL SIDE JUNCTION, LH 82672B COVER, JUNCTION BLOCK 89227 COMPUTER, MULTIPLEX TILT & TELESCOPIC 9017906159 ** Std Part 89730 COMPUTER ASSY, SECURITY WARNING 91631J0612 ** Std Part 9415080600 ** Std Part 82600F FUSE,FUSE BLOCK ** 82-02 9015960303 ** Std Part 89111 COMPUTER, NETWORK GATEWAY 81980 FLASHER ASSY, TURN SIGNAL 89531A RELAY, TRANSMISSION CONTROL 9015950098 ** Std Part 85930G RELAY, ACC 85912 RELAY, DEFOGGER 81240F RELAY, DOME LAMP 28371C RELAY, IGNITION, NO.2 28371D RELAY, IGNITION, NO.3 82731A BLOCK, COWL SIDE JUNCTION, RH 85930K RELAY, ACC, NO.2 |

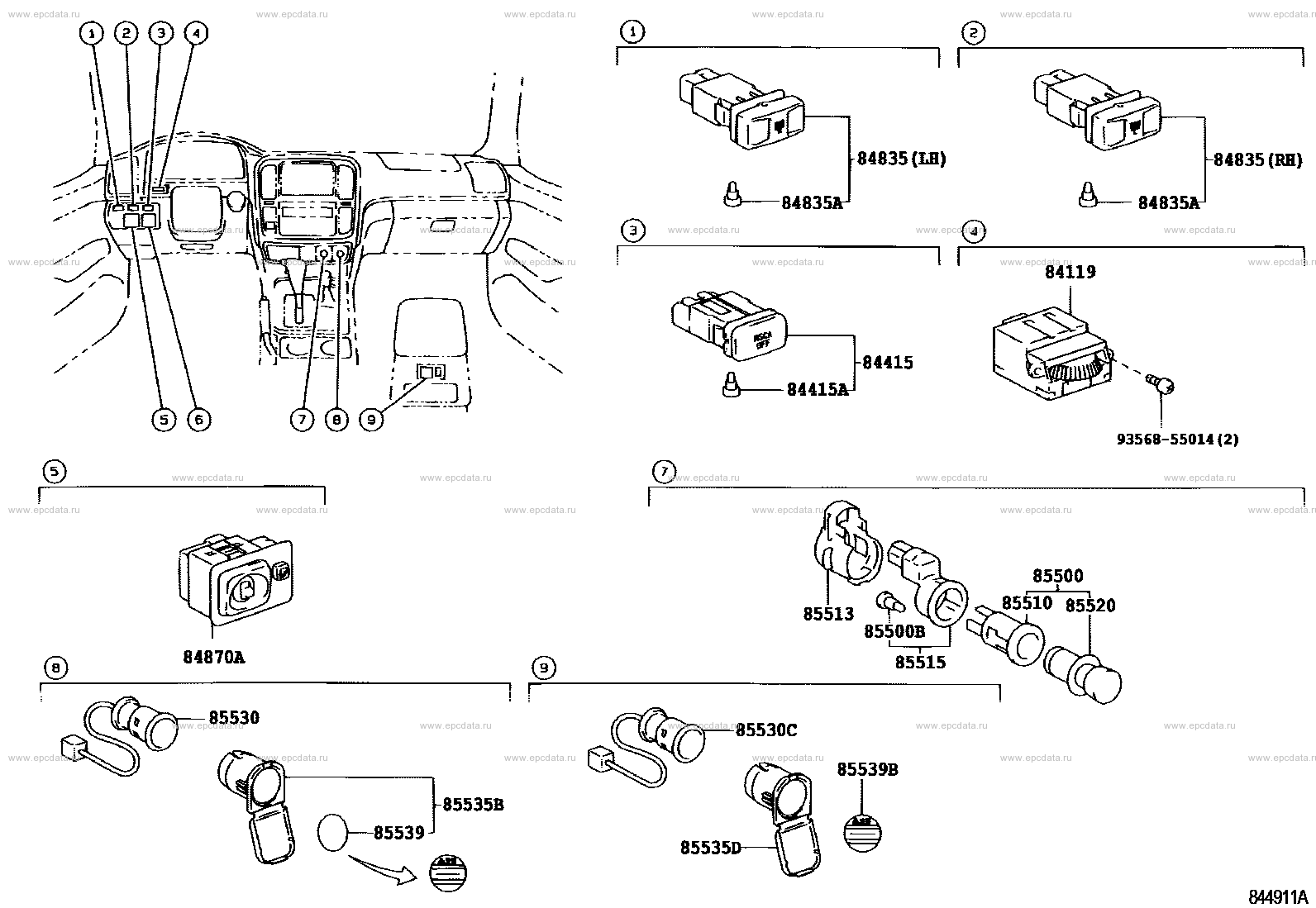

Scheme 5
|
Click part number in the scheme or in the list: 9356855014 ** Std Part84870A SWITCH ASSY, OUTER MIRROR 84835 SWITCH, POWER QUARTER WINDOW 84119 RHEOSTAT, LIGHT CONTROL 84835A BLUB, POWER QUARTER WINDOW SWITCH 85530 SOCKET ASSY, POWER POINT 85539 LABEL, POWER OUTLET NOTICE 85535B COVER, POWER POINT SOCKET 84415 SWITCH, CURTAIN AIRBAG CUTOFF 84415A BULB, CURTAIN AIRBAG CUTOFF SWITCH 85500 LIGHTER ASSY, CIGARETTE 85510 SOCKET & RETAINER ASSY, CIGARLIGHTER 85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85515 STAY, CIGARETTE LIGHTER BEZEL 85500B BULB, CIGARETTE LIGHTER 85513 COVER, CIGARETTE LIGHTER 85530C SOCKET ASSY, POWER OUTLET, CTR 85539B LABEL, POWER OUTLET NOTICE,CTR 85535D COVER, POWER OUTLET SOCKET, CTR |

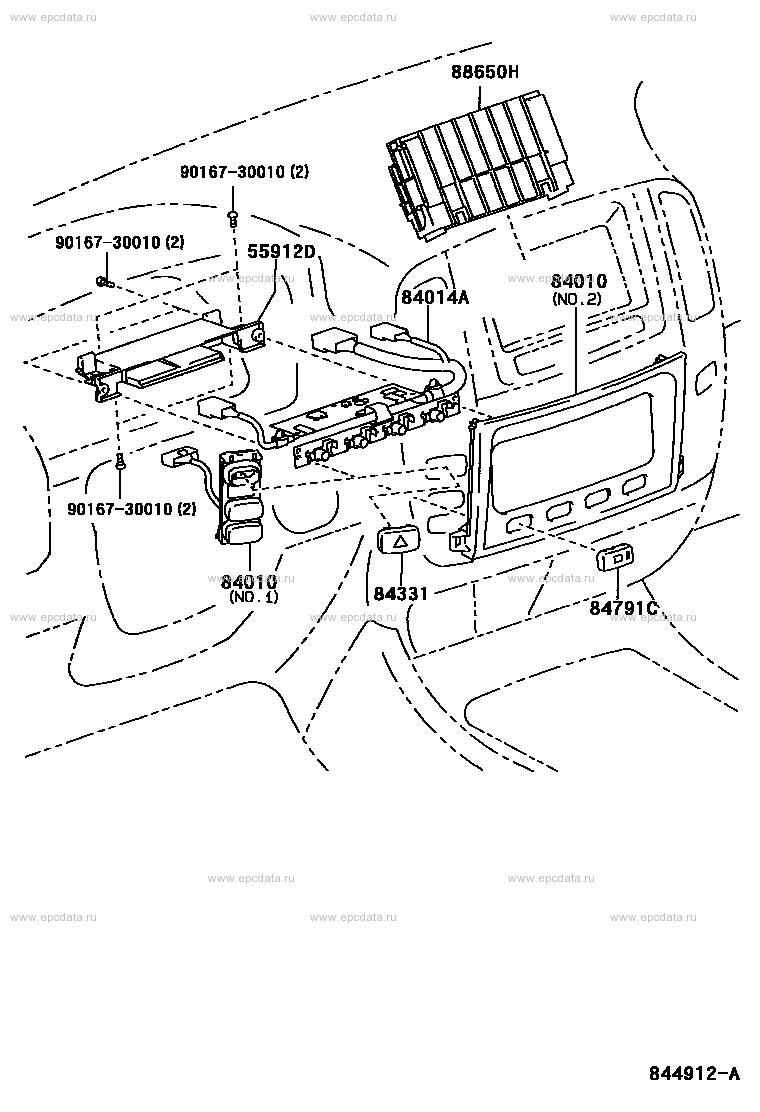

Scheme 6
|
Click part number in the scheme or in the list: 88650H AMPLIFIER ASSY, AIR CONDITIONER9016730010 ** Std Part 55912D HOUSING, HEATER CONTROL 84010 SWITCH ASSY, CENTER CLUSTER INTEGRATION 84014A BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 84331 KNOB, HAZARD WARNING SIGNAL SWITCH 84791C KNOB, DEFOGGER TIME SWITCH |
Scheme 7
|
Click part number in the scheme or in the list: 9016840129 ** Std Part84450 SWITCH ASSY, IGNITION OR STARTER 84052 SWITCH ASSY, UN-LOCK WARNING 9015950199 ** Std Part 9046400551 ** Std Part 84247A SWITCH, STEERING PAD, LH 84258A COVER, STEERING PAD, RH 84244B SWITCH, STEERING PAD, RH 84204 CABLE SUB-ASSY, STEERING PAD SWITCH 84310 SWITCH ASSY, TURN SIGNAL 84650 SWITCH ASSY, WINDSHIELD WIPER 84140 SWITCH ASSY, HEADLAMP DIMMER 89245B SENSOR, STEERING 89246B DISC, SENSOR STEERING 89235 SWITCH, TILT STEERING 84306 CABLE SUB-ASSY, SPIRAL 9331915012 ** Std Part |

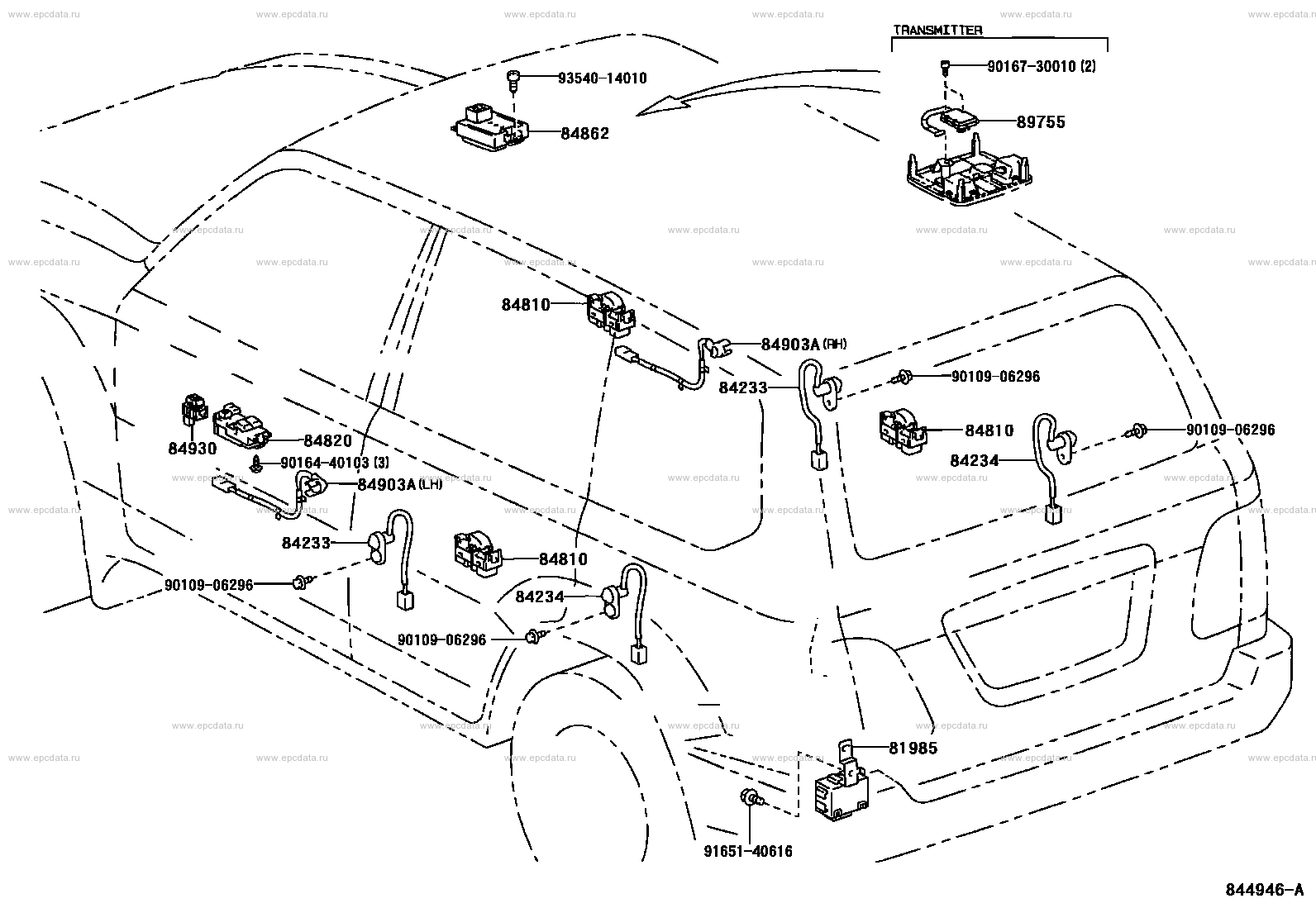

Scheme 8
|
Click part number in the scheme or in the list: 9016730010 ** Std Part9354014010 ** Std Part 89755 TRANSMITTER, GARAGE DOOR OPENER 84862 SWITCH, SLIDE ROOF MOTOR 84810 SWITCH ASSY, POWER WINDOW REGULATOR 84903A SWITCH SUB-ASSY, DOOR UNLOCK 9010906296 ** Std Part 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84820 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84930 SWITCH ASSY, DOOR CONTROL 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 9016440103 ** Std Part 81985 RELAY, TOWING CONVERTER 9165140616 ** Std Part |

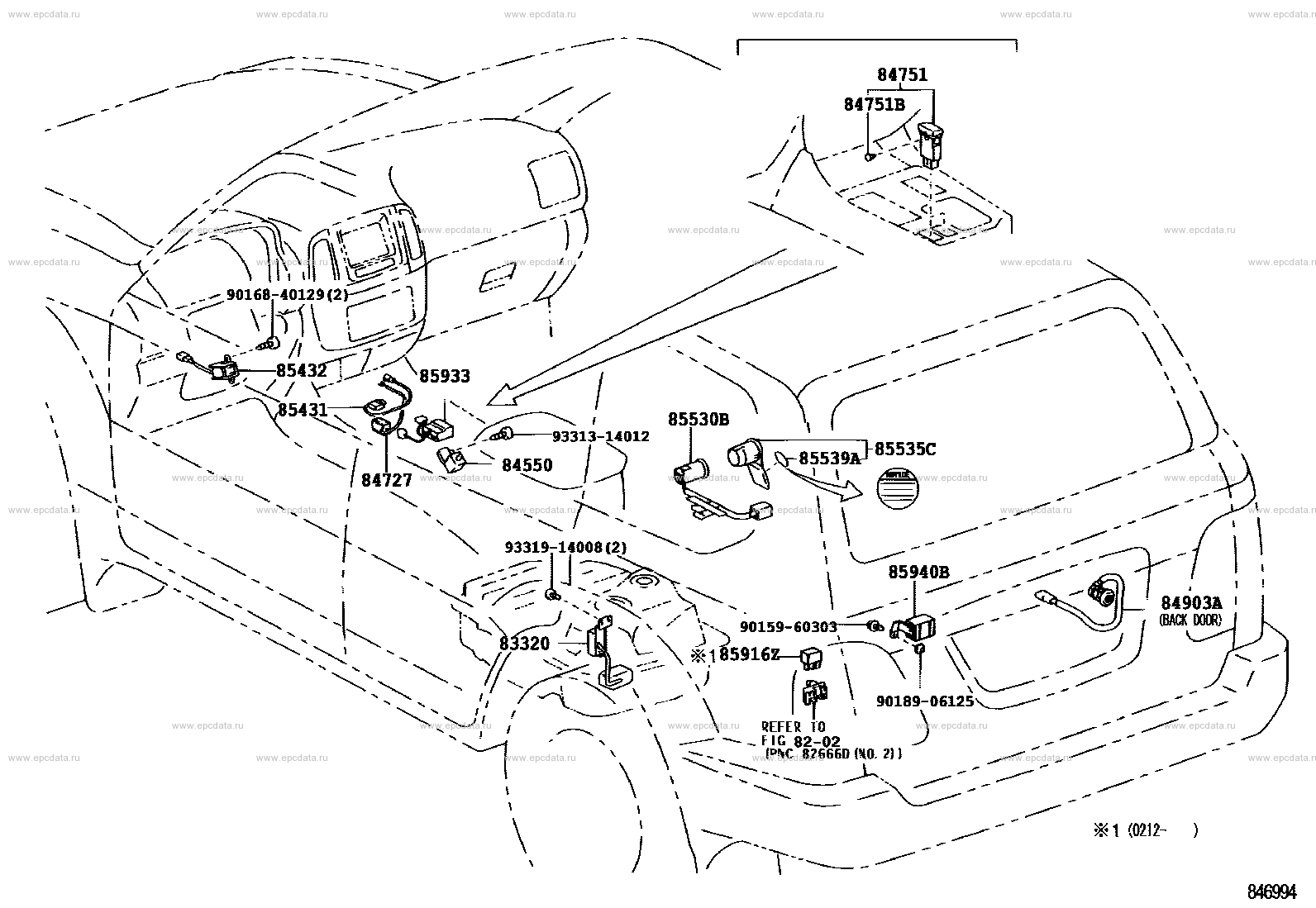

Scheme 9
|
Click part number in the scheme or in the list: 9016840129 ** Std Part84751 SWITCH, SEAT HEATER 84751B BULB, SEAT HEATER SWITCH 84903A SWITCH SUB-ASSY, DOOR UNLOCK 85535C COVER, POWER OUTLET SOCKET, RR 85539A LABEL, POWER OUTLET NOTICE, RR 85940B RELAY ASSY, REAR WIPER 85530B SOCKET ASSY, POWER POINT, RR 9015960303 ** Std Part 9331314012 ** Std Part 83320 GAGE ASSY, FUEL SENDER 84550 SWITCH ASSY, PARKING BRAKE 9331914008 ** Std Part 85933 COMPUTER, SHIFT LOCK CONTROL 84727 SWITCH, SHIFT LOCK CONTROL 85431 SOLENOID, SHIFT LOCK 85432 SOLENOID, KEY INTER LOCK 9018906125 ** Std Part 85916Z RELAY, TOWING HITCH ** 82-02 |

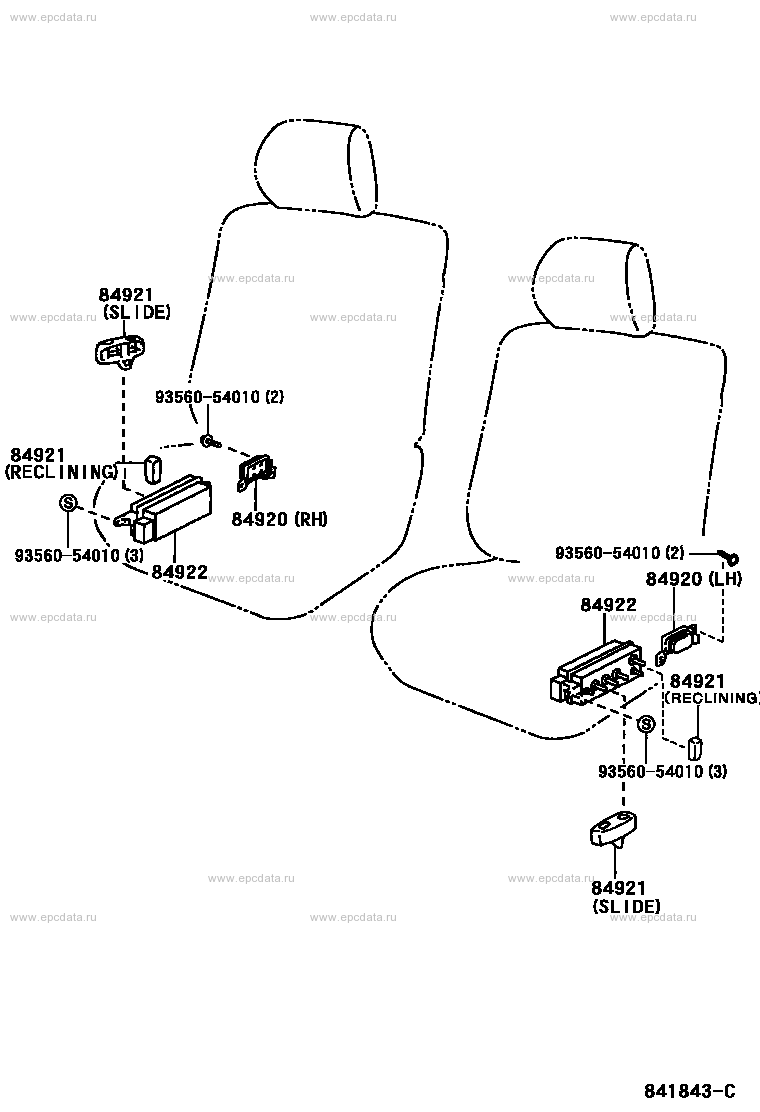

Scheme 10
|
Click part number in the scheme or in the list: 84921 KNOB, POWER SEAT SWITCH9356054010 ** Std Part 84920 SWITCH ASSY, POWER SEAT 84922 SWITCH, FRONT POWER SEAT |
