Mirror for Land Cruiser UZJ100L

Click on the part subgroup below to get genuine part numbers.

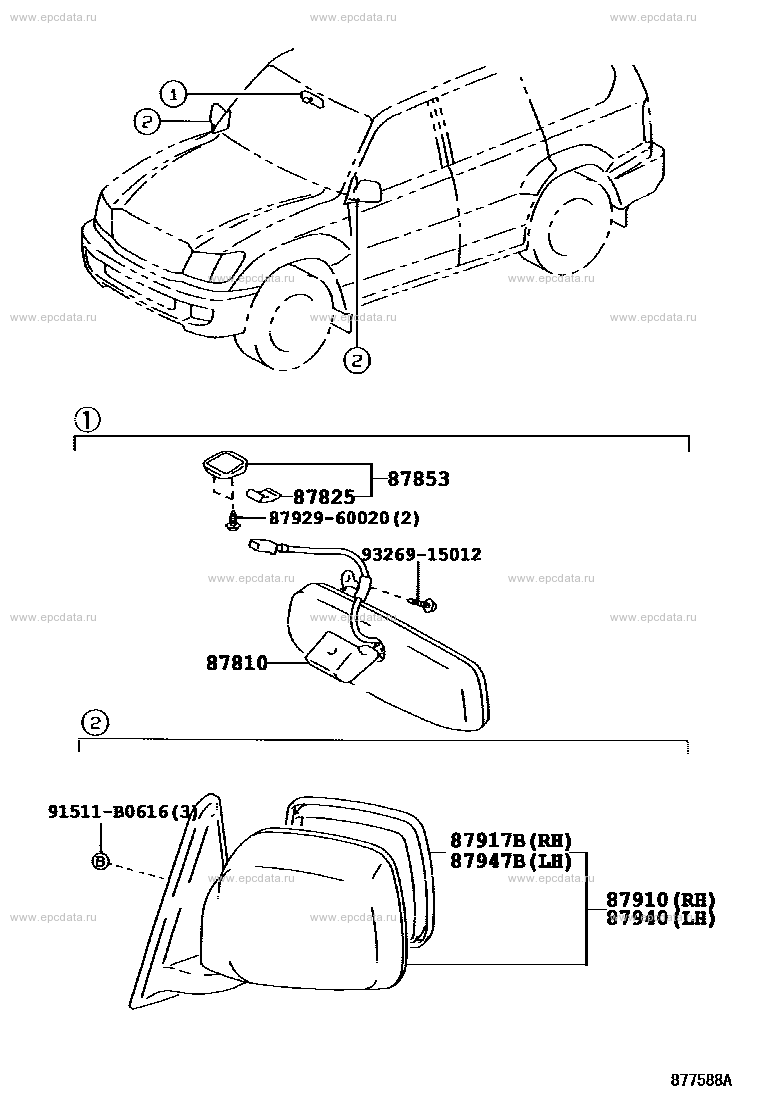

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 87810 MIRROR ASSY, INNER REAR VIEW 91511B0616 ** Std Part 87917B MIRROR, OUTER REAR VIEW, RH 87947B MIRROR, OUTER REAR VIEW, LH 87910 MIRROR ASSY, OUTER REAR VIEW, RH 87940 MIRROR ASSY, OUTER REAR VIEW, LH 87825 SPRING, INNER REAR VIEW MIRROR SETTING 87805 BASE SUB-ASSY, INNER REAR VIEW MIRROR 9326915012 ** Std Part 8792960020 ** Std Part 87853 BASE, INNER REAR VIEW MIRROR

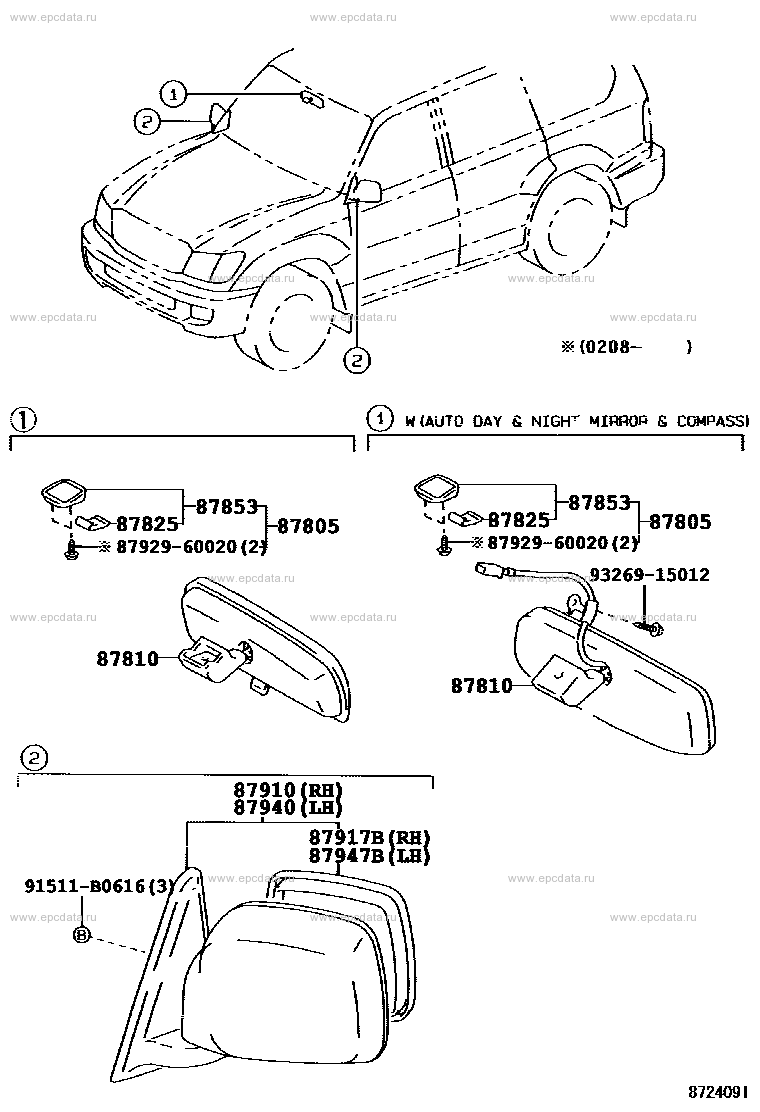

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 91511B0616 ** Std Part 87917B MIRROR, OUTER REAR VIEW, RH 87947B MIRROR, OUTER REAR VIEW, LH 87910 MIRROR ASSY, OUTER REAR VIEW, RH 87940 MIRROR ASSY, OUTER REAR VIEW, LH 87810 MIRROR ASSY, INNER REAR VIEW 87825 SPRING, INNER REAR VIEW MIRROR SETTING 9326915012 ** Std Part 8792960020 ** Std Part 87853 BASE, INNER REAR VIEW MIRROR

Land Cruiser UZJ100L
