Heating & air conditioning - heater unit & blower for Land Cruiser UZJ100L

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 87150 RADIATOR ASSY, HEATER 87130 BLOWER ASSY, HEATER, FRONT 87103 MOTOR SUB-ASSY, HEATER BLOWER, W/FAN 87165 CONTROL, BLOWER MOTOR NO.1 87106C SERVO SUB-ASSY, DAMPER(FOR BROWER) 87107 UNIT SUB-ASSY, HEATER RADIATOR 87106M SERVO SUB-ASSY, DAMPER, NO.2 87106A SERVO SUB-ASSY, DAMPER 87211E DUCT, AIR 88897R ASPIRATOR 9017906314 ** Std Part 9011906092 ** Std Part 8712860030 ** Std Part 8889712210 ** Std Part 8761635010 ** Std Part 8866960030 ** Std Part

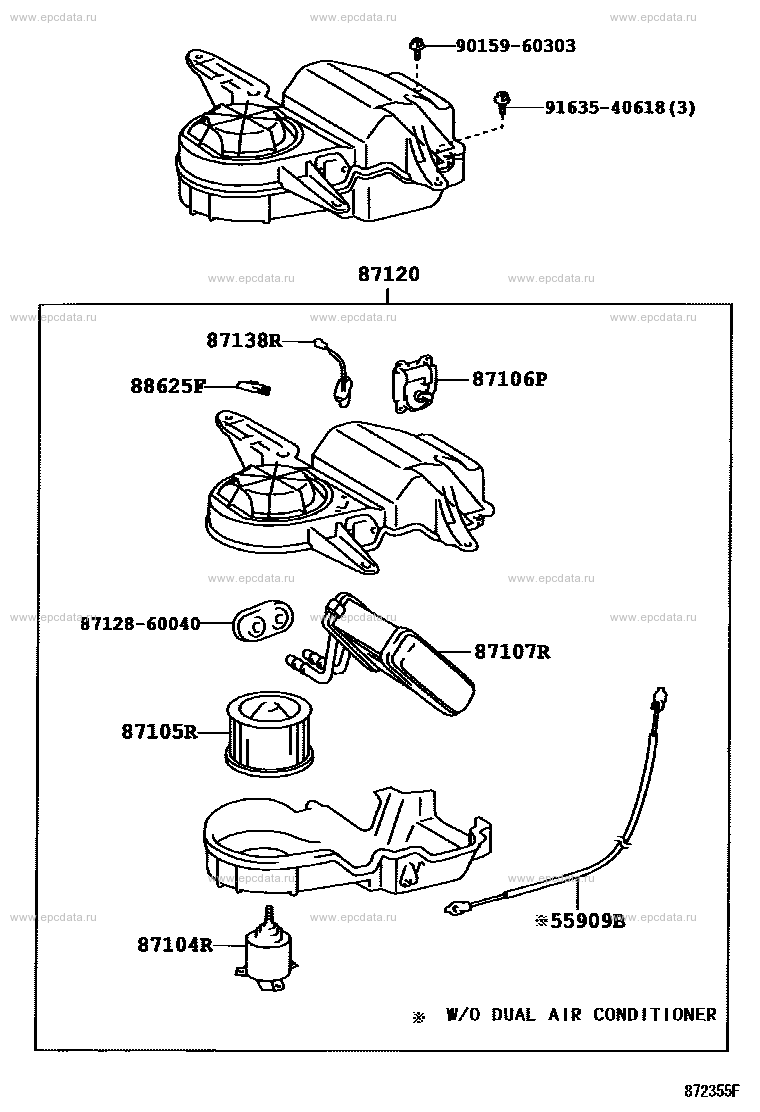

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 87120 HEATER ASSY, REAR 87107R UNIT SUB-ASSY, REAR HEATER 55909B CABLE SUB-ASSY, AIRMIX DAMPER CONTROL 9015960303 ** Std Part 9163540618 ** Std Part 8712860040 ** Std Part 87105R FAN SUB-ASSY, REAR HEATER BLOWER 87104R MOTOR SUB-ASSY, REAR HEATER BLOWER 87138R RESISTOR, REAR HEATER BLOWER 88625F SENSOR, TEMPERATURE 87106P SERVO SUB-ASSY, DAMPER (FOR REAR HEATER)

Land Cruiser UZJ100L
