Brake tube & clamp for Pickup RN37L

Click on the part subgroup below to get genuine part numbers.

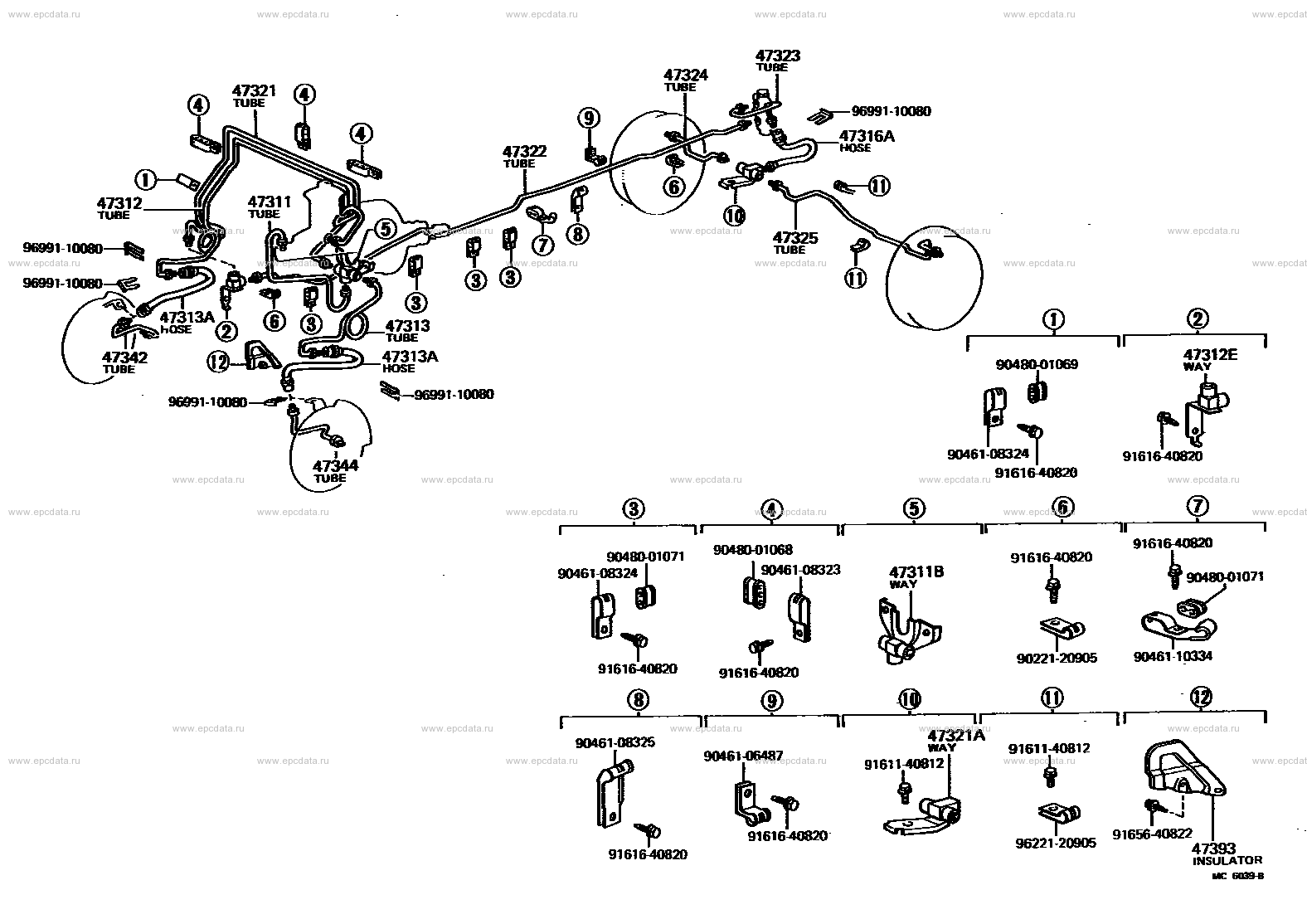

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 47323 TUBE, REAR BRAKE, NO.3 47324 TUBE, REAR BRAKE, NO.4 47321 TUBE, REAR BRAKE, NO.1 9699110080 ** Std Part 47316A HOSE, FLEXIBLE (FOR REAR BRAKE TUBE) 47322 TUBE, REAR BRAKE, NO.2 47311 TUBE, FRONT BRAKE, NO.1 47312 TUBE, FRONT BRAKE, NO.2 47325 TUBE, REAR BRAKE, NO.5 47313A HOSE, FLEXIBLE, NO.1 (FOR FRONT) 47313 TUBE, FRONT BRAKE, NO.3 47312E WAY, NO.2 (FOR FRONT BRAKE TUBE) 47342 TUBE, WHEEL CYLINDER, FRONT RH NO.2 9048001069 ** Std Part 9046108324 ** Std Part 9161640820 ** Std Part 47344 TUBE, WHEEL CYLINDER, FRONT LH NO.2 9048001068 ** Std Part 9048001071 ** Std Part 9046108323 ** Std Part 47311B WAY, NO.1 (FOR FRONT BRAKE TUBE) 9046110334 ** Std Part 9022120905 ** Std Part 47321A WAY (FOR REAR BRAKE TUBE) 9046108325 ** Std Part 9161140812 ** Std Part 9046106487 ** Std Part 9165640822 ** Std Part 9622120905 ** Std Part 47393 INSULATOR, BRAKE TUBE, HEAT

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 47920K BUSH & BOOT KIT, LOAD SENSING SPRING 9161160816 ** Std Part 47937 PLATE, LOAD SENSING VALVE SET 47931 BRACKET, LOAD SENSING VALVE 47910 VALVE ASSY, LOAD SENSING PROPORTIONING 47353 BRACKET, FLEXIBLE HOSE (FOR REAR) 9411040800 ** Std Part 9451200800 ** Std Part 47920B CLIP (FOR LOAD SENSING VALVE BOOT) 9020123360 ** Std Part 9113150840 ** Std Part 47920 SPRING ASSY, LOAD SENSING 47920A COLLAR (FOR LOAD SENSING SPRING) 47920C WASHER (FOR LOAD SENSING SPRING) 47935 SHACKLE, LOAD SENSING SPRING, NO.1 9451201000 ** Std Part 9411041000 ** Std Part 47936 SHACKLE, LOAD SENSING SPRING, NO.2 47935B BUSH (FOR LOAD SENSING SPRING SHACKLE) 9538102020 ** Std Part 47935C RETAINER (FOR LOAD SENSING SPRING SHACKLE) 9414140800 ** Std Part 47933 BRACKET, LOAD SENSING SHACKLE, NO.1 47935A COLLAR (FOR LOAD SENSING SPRING SHACKLE)

Pickup RN37L
