Manifold air injection system for Pickup RN37L

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9010508018 ** Std Part 17367 GASKET, AIR TUBE 17361 TUBE, AIR 17344 HOSE, NO.4 (FOR AIR INJECTION SYSTEM) 17355 NOZZLE, AIR INJECTION 17610A VALVE, CHECK (FOR AIR INJECTION SYSTEM) 17343A CLAMP OR CLIP, NO.3 (FOR AIR INJECTION SYSTEM HOSE, NO.3) 17343 HOSE, NO.3 (FOR AIR INJECTION SYSTEM) 17341 HOSE, NO.1 (FOR AIR INJECTION SYSTEM) 9046112026 ** Std Part 9046114006 ** Std Part 25710 VALVE ASSY, AIR SWITCHING 17341A CLAMP OR CLIP, NO.1 (FOR AIR INJECTION SYSTEM HOSE, NO.1) 9161140814 ** Std Part 17342A CLAMP OR CLIP, NO.2 (FOR AIR INJECTION SYSTEM HOSE, NO.2) 17342 HOSE, NO.2 (FOR AIR INJECTION SYSTEM) ** 17-08 9165140814 ** Std Part

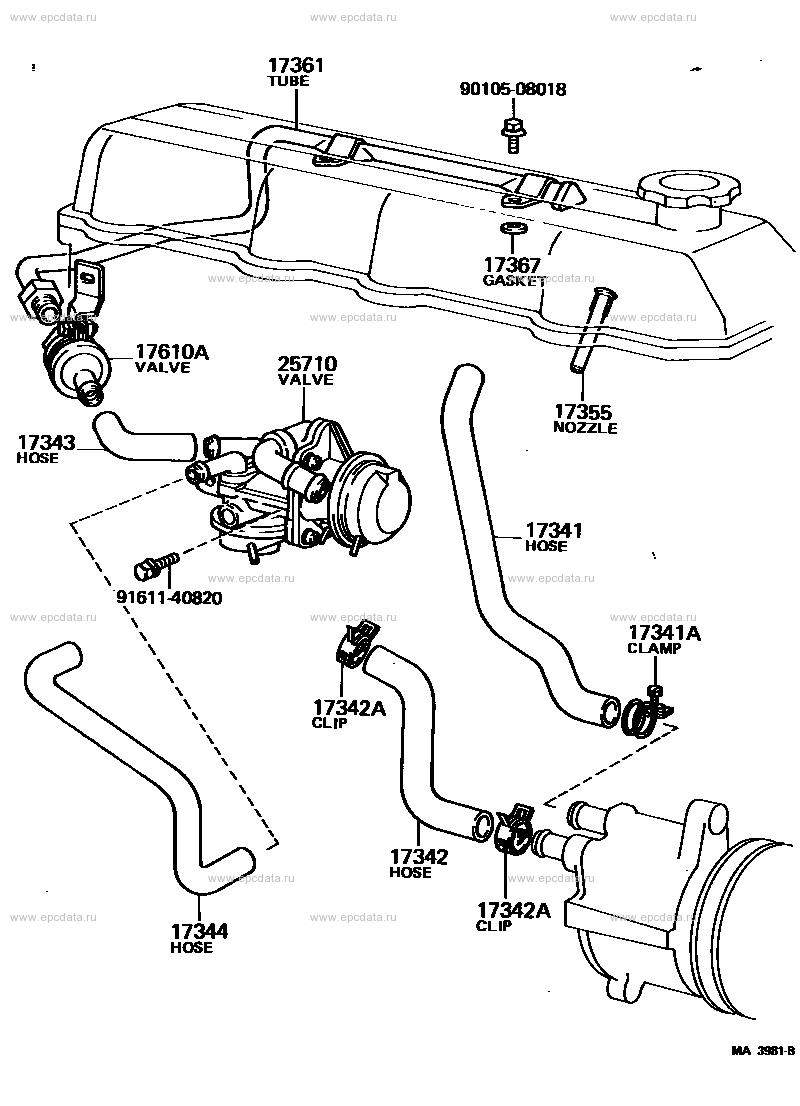

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 17361 TUBE, AIR 9010508018 ** Std Part 17367 GASKET, AIR TUBE 17610A VALVE, CHECK (FOR AIR INJECTION SYSTEM) 25710 VALVE ASSY, AIR SWITCHING 17355 NOZZLE, AIR INJECTION 17343 HOSE, NO.3 (FOR AIR INJECTION SYSTEM) 17341 HOSE, NO.1 (FOR AIR INJECTION SYSTEM) 9161140820 ** Std Part 17341A CLAMP OR CLIP, NO.1 (FOR AIR INJECTION SYSTEM HOSE, NO.1) 17342A CLAMP OR CLIP, NO.2 (FOR AIR INJECTION SYSTEM HOSE, NO.2) 17342 HOSE, NO.2 (FOR AIR INJECTION SYSTEM) 17344 HOSE, NO.4 (FOR AIR INJECTION SYSTEM)

Pickup RN37L
