Rear side marker lamp for Pickup RN42L

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9018904014 ** Std Part 81750 LAMP ASSY, REAR SIDE MARKER, RH 81760 LAMP ASSY, REAR SIDE MARKER, LH 81751 LENS, REAR SIDE MARKER LAMP, RH 81761 LENS, REAR SIDE MARKER LAMP, LH 81750B BULB, REAR SIDE MARKER LAMP 8173922040 ** Std Part

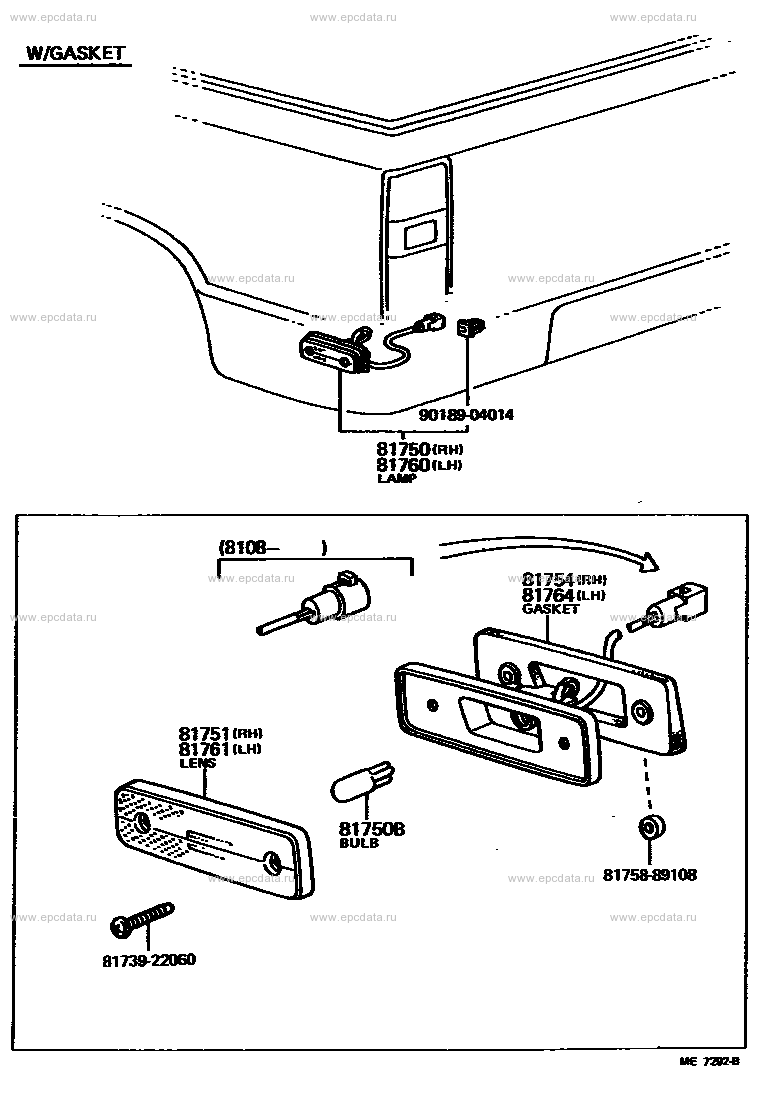

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9018904014 ** Std Part 81750 LAMP ASSY, REAR SIDE MARKER, RH 81760 LAMP ASSY, REAR SIDE MARKER, LH 81754 GASKET, REAR SIDE MARKER LAMP BODY, RH 81764 GASKET, REAR SIDE MARKER LAMP BODY, LH 81751 LENS, REAR SIDE MARKER LAMP, RH 81761 LENS, REAR SIDE MARKER LAMP, LH 81750B BULB, REAR SIDE MARKER LAMP 8175889108 ** Std Part 8173922060 ** Std Part

Pickup RN42L
