Roof panel & back window glass for Solara ACV30L

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 63111 PANEL, ROOF 63132 PANEL, WINDSHIELD HEADER, INNER 63144A REINFORCEMENT, ROOF PANEL, NO.4 63141G REINFORCEMENT, ROOF PANEL, NO.1 63133B FRAME, BACK WINDOW 64811 GLASS, BACK WINDOW 64165B COVER, UPPER BACK PANEL HOLE, NO.1 63143B REINFORCEMENT, ROOF PANEL, NO.3 63148E BRACKET, ROOF PANEL REINFORCEMENT, LH 63147F BRACKET, ROOF PANEL REINFORCEMENT, RH 90269A0001 ** Std Part 63118 SUPPORT, ROOF PANEL, RH 63119 SUPPORT, ROOF PANEL, LH 63142 REINFORCEMENT, ROOF PANEL, NO.2 9008017185 ** Std Part 9008411017 ** Std Part 64101 PANEL SUB-ASSY, UPPER BACK 56115B STOPPER, BACK WINDOW GLASS, NO.1 56116D STOPPER, BACK WINDOW GLASS, NO.2

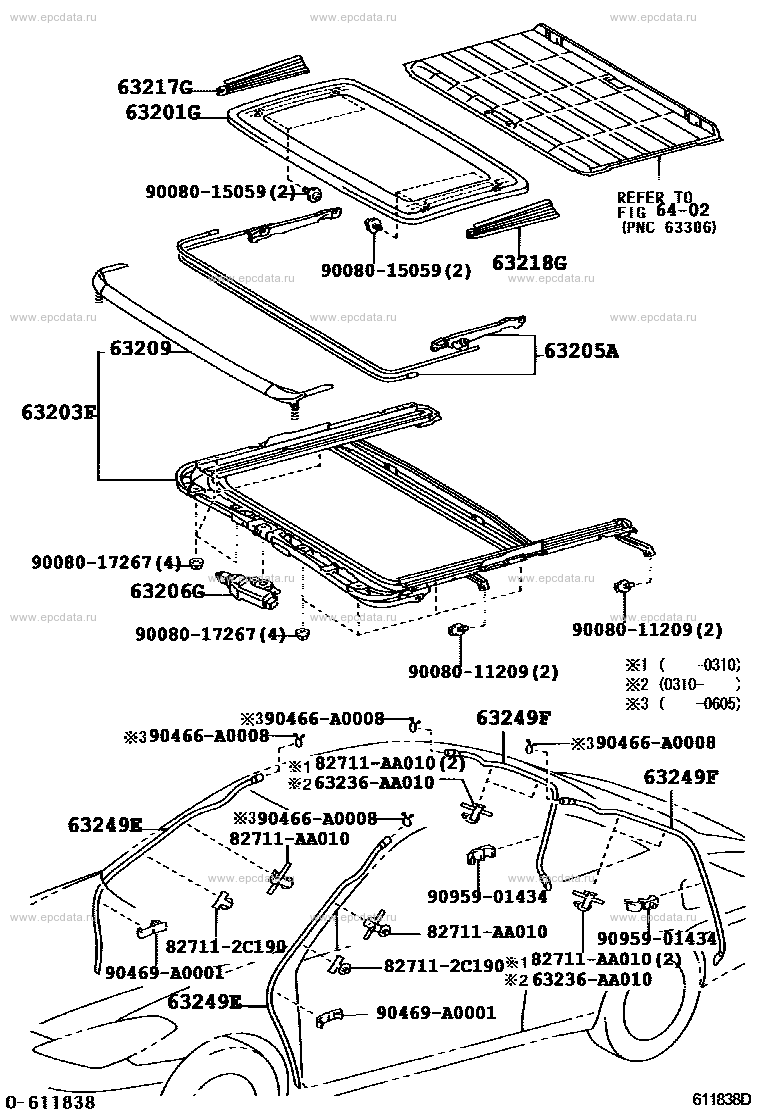

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 63217G GARNISH, SLIDING ROOF SIDE, RH 63201G GLASS SUB-ASSY, SLIDING ROOF 9008015059 ** Std Part 63218G GARNISH, SLIDING ROOF SIDE, LH 63205A CABLE SUB-ASSY, SLIDING ROOF DRIVE 9008011209 ** Std Part 63209 PANEL SUB-ASSY, ROOF WIND DEFLECTOR 63203F HOUSING SUB-ASSY, SLIDING ROOF 9008017267 ** Std Part 63206G GEAR SUB-ASSY, SLIDING ROOF DRIVE 90466A0008 ** Std Part 63249E HOSE, SLIDING ROOF DRAIN 82711AA010 ** Std Part 63249F HOSE, SLIDING ROOF DRAIN 827112C190 ** Std Part 90469A0001 ** Std Part 9095901434 ** Std Part ** 64-02 63236AA010 ** Std Part

Solara ACV30L
