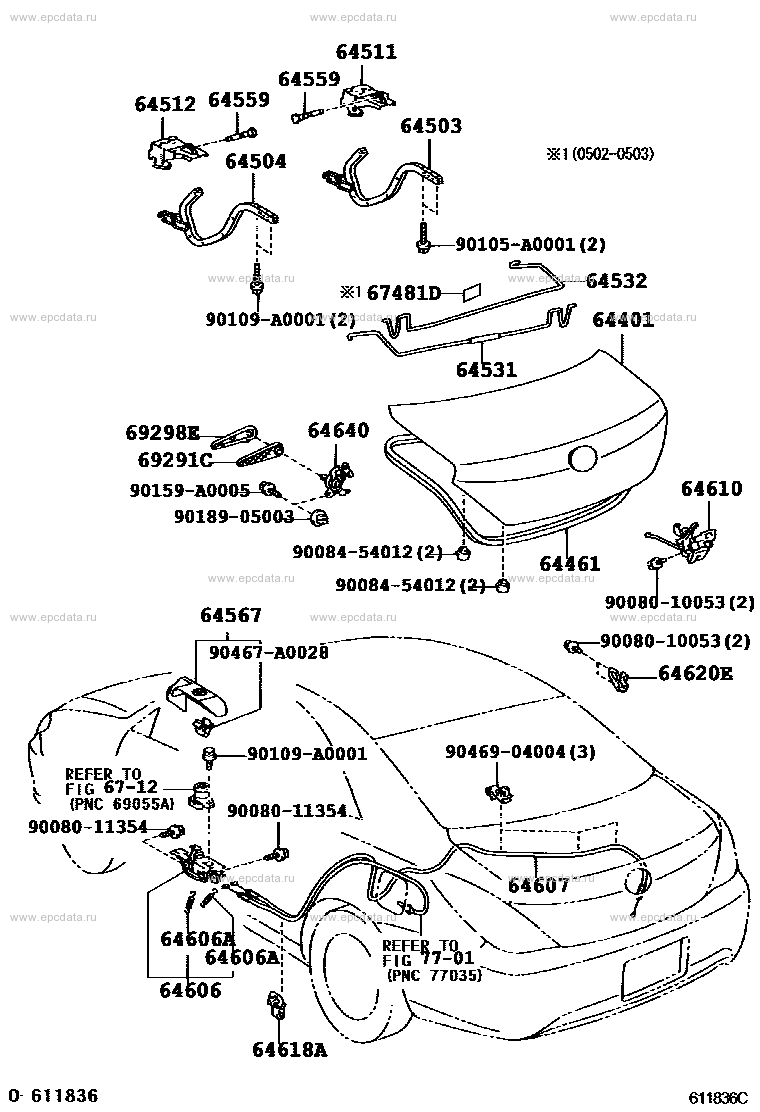

Click part number in the scheme or in the list:
64511 SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503 ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64559 PIN, LUGGAGE DOOR HINGE
64512 SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64504 ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
90105A0001 ** Std Part
90109A0001 ** Std Part
69298E COVER, LUGGAGE COMPONENT DOOR INSIDE HANDLE
69291C HANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE
90159A0005 ** Std Part
9018905003 ** Std Part
64640 OPENER ASSY, LUGGAGE DOOR LOCK
9008454012 ** Std Part
64567 BEZEL, LUGGAGE DOOR LOCK OPEN
90467A0028 ** Std Part
** 67-12
9008011354 ** Std Part
64607 CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
9046904004 ** Std Part
** 77-01
64618A CLAMP, LUGGAGE LOCK CONTROL CABLE
64606A SPRING, TENSION (FOR LUGGAGE DOOR LOCK OPEN LEVER)
64606 LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64620E STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
9008010053 ** Std Part
64461 WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64610 LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64401 PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64531 BAR, LUGGAGE DOOR HINGE TORSION, RH
64532 BAR, LUGGAGE DOOR HINGE TORSION, LH
67481D SEAL, LUGGAGE TORSION BAR |
