Abs & vsc for T100 VCK11L
Click on the part subgroup below to get genuine part numbers.

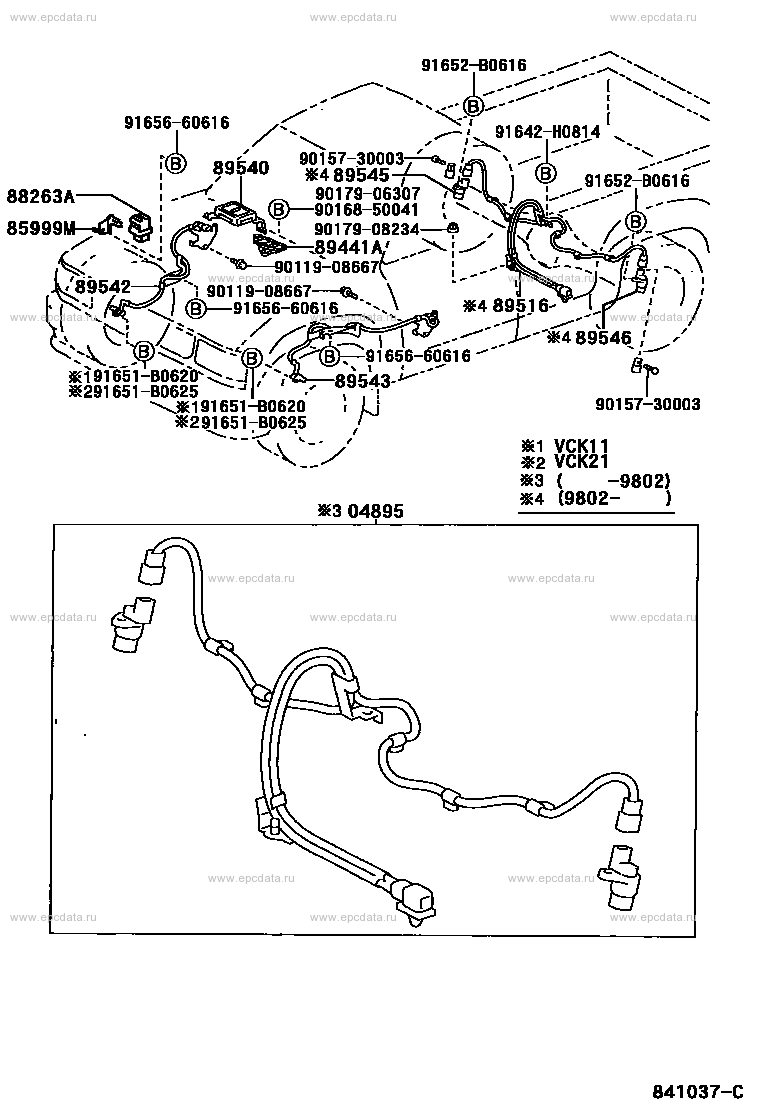

Scheme 1
|
Click part number in the scheme or in the list: 91652B0616 ** Std Part9165660616 ** Std Part 91642H0814 ** Std Part 9015730003 ** Std Part 89540 COMPUTER ASSY, SKID CONTROL 89545 SENSOR, SPEED, REAR RH 9017906307 ** Std Part 88263A RELAY, SKID CONTROL 9016850041 ** Std Part 85999M BRACKET, RELAY 9017908234 ** Std Part 89441A SENSOR, DECELERATION 9011908667 ** Std Part 89542 SENSOR, SPEED, FRONT RH 89516 WIRE, SKID CONTROL SENSOR 89546 SENSOR, SPEED, REAR LH 91651B0620 ** Std Part 89543 SENSOR, SPEED, FRONT LH 91651B0625 ** Std Part 04895 SPEED SENSOR KIT, ABS |
Scheme 2
|
Click part number in the scheme or in the list: 9011908A70 ** Std Part9017908234 ** Std Part 91652B0616 ** Std Part 9015730003 ** Std Part 89545 SENSOR, SPEED, REAR RH 89542 SENSOR, SPEED, FRONT RH 9011908917 ** Std Part 9011906801 ** Std Part 89546 SENSOR, SPEED, REAR LH 89516 WIRE, SKID CONTROL SENSOR 91652B0620 ** Std Part 89543 SENSOR, SPEED, FRONT LH 04895 SPEED SENSOR KIT, ABS |
