Seat belt for Tacoma TRN245L

Click on the part subgroup below to get genuine part numbers.

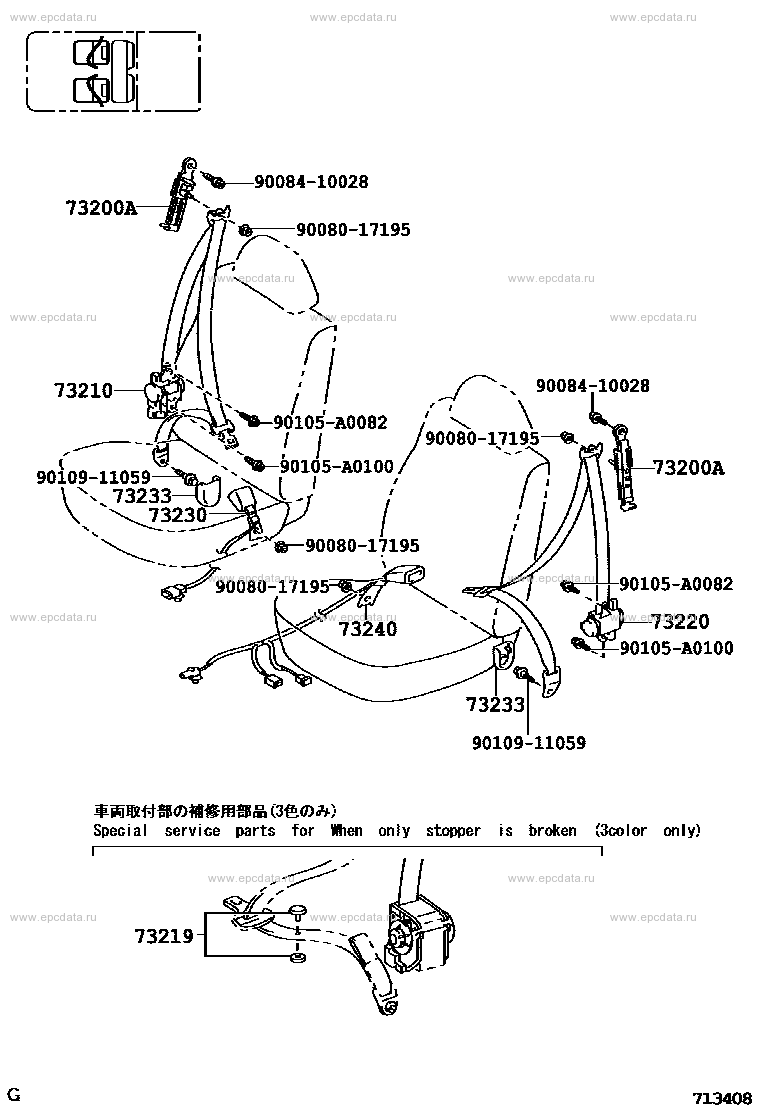

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 73200A ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR 73230 BELT ASSY, FRONT SEAT INNER, RH 73240 BELT ASSY, FRONT SEAT INNER, LH 73220 BELT ASSY, FRONT SEAT OUTER, LH 73233 COVER, LAP BELT OUTER ANCHOR 73210 BELT ASSY, FRONT SEAT OUTER, RH 9008410028 ** Std Part 9008017195 ** Std Part 90105A0082 ** Std Part 90105A0100 ** Std Part 9010911059 ** Std Part 73219 STOPPER, TONGUE PLATE

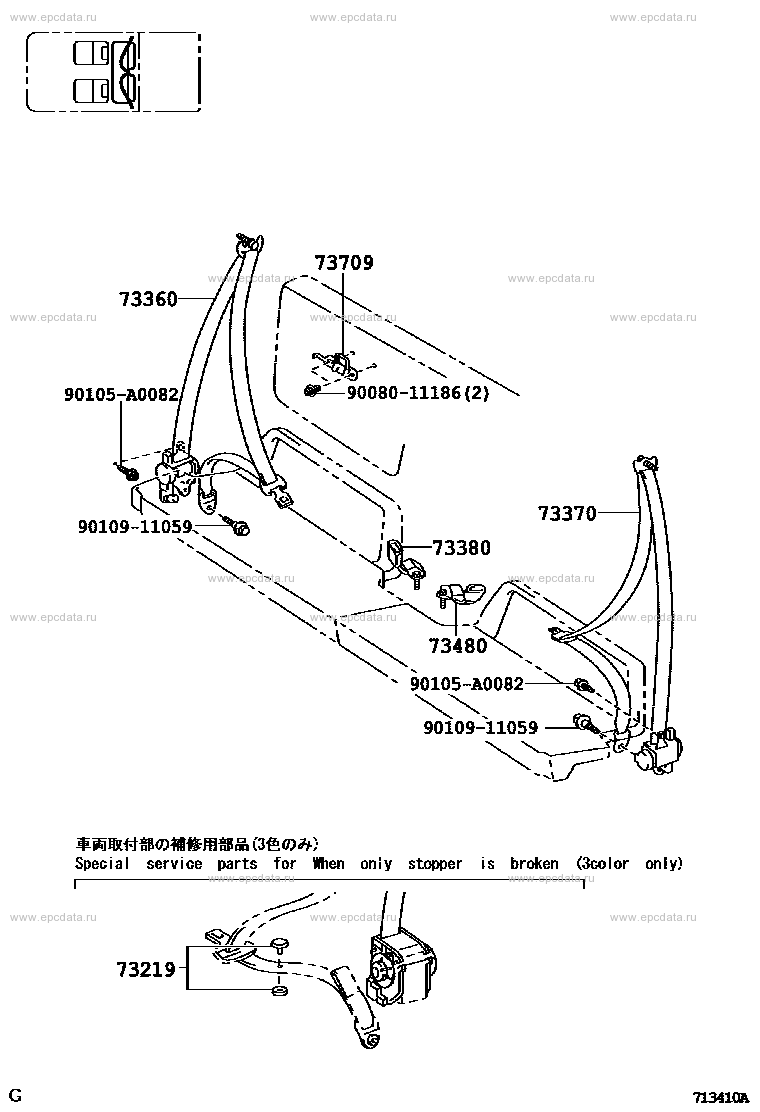

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 73219 STOPPER, TONGUE PLATE 73370 BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER, LH 73709 BRACKET SUB-ASSY, TETHER ANCHOR 73480 BELT ASSY, REAR SEAT INNER W/CENTER, LH 73380 BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH 73360 BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER, RH 90105A0082 ** Std Part 9008011186 ** Std Part 9010911059 ** Std Part

Tacoma TRN245L
