Rear axle housing & differential for Tacoma TRN245L

Click on the part subgroup below to get genuine part numbers.

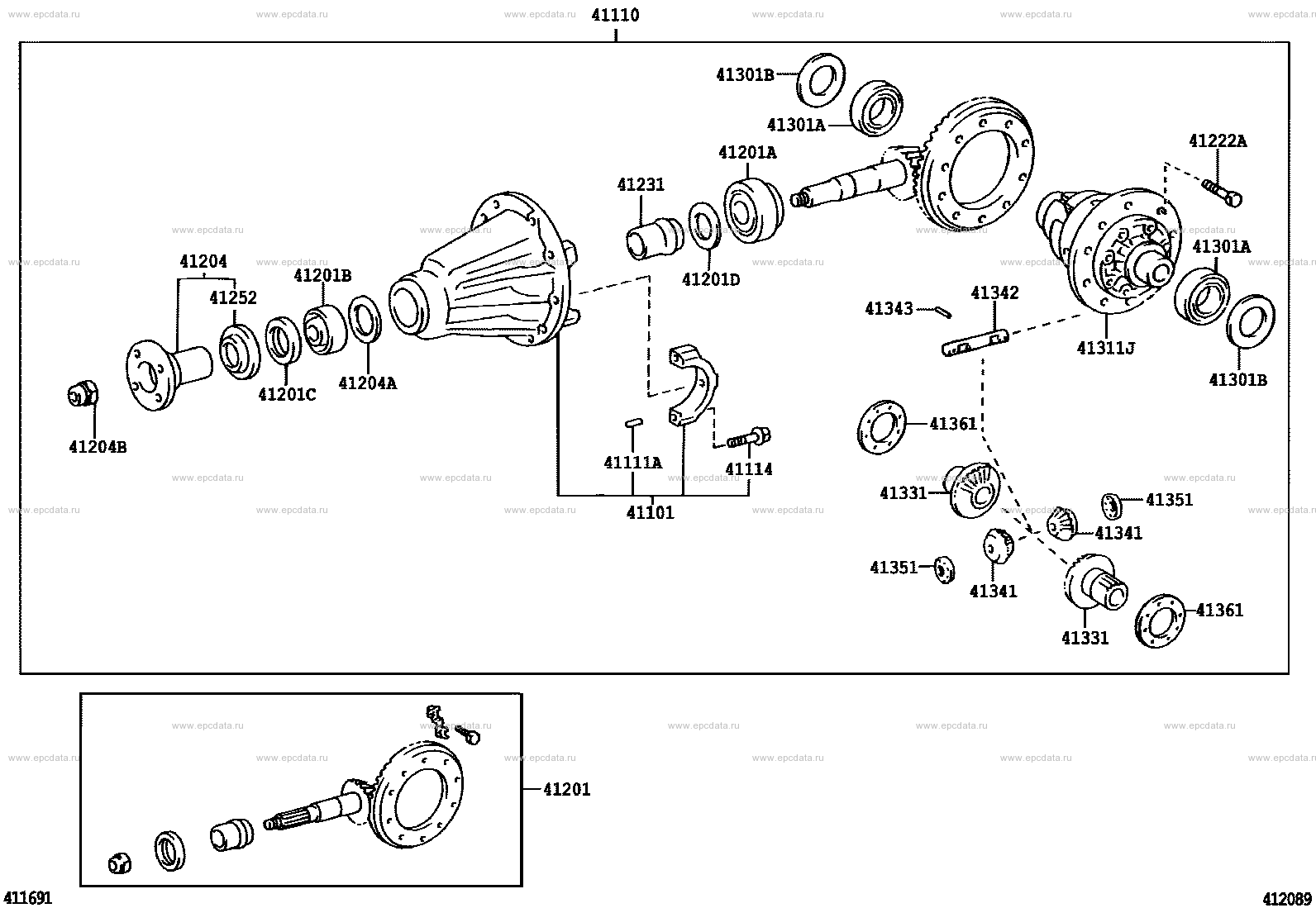

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 41110 CARRIER ASSY, DIFFERENTIAL, REAR 41204 FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR 41201C SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) 41204B NUT (FOR REAR DRIVE PINION) 41204A WASHER, PLATE (FOR REAR DRIVE PINION) 41201B BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41101 CARRIER SUB-ASSY, DIFFERENTIAL, REAR 41114 BOLT, REAR DIFFERENTIAL BEARING CAP 41201D WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) 41231 SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41201A BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41301A BEARING (FOR REAR DIFFERENTIAL CASE) 41301B WASHER (FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) 41311J CASE, REAR DIFFERENTIAL 41342 SHAFT, REAR DIFFERENTIAL PINION 41252 DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) 41201 FINAL GEAR KIT, DIFFERENTIAL, REAR 41361 WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST NO.1 41351 WASHER, REAR DIFFERENTIAL PINION THRUST 41111A PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) 41222A BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) 41331 GEAR, REAR DIFFERENTIAL SIDE 41341 PINION, REAR DIFFERENTIAL 41343 PIN, REAR DIFFERENTIAL PINION SHAFT

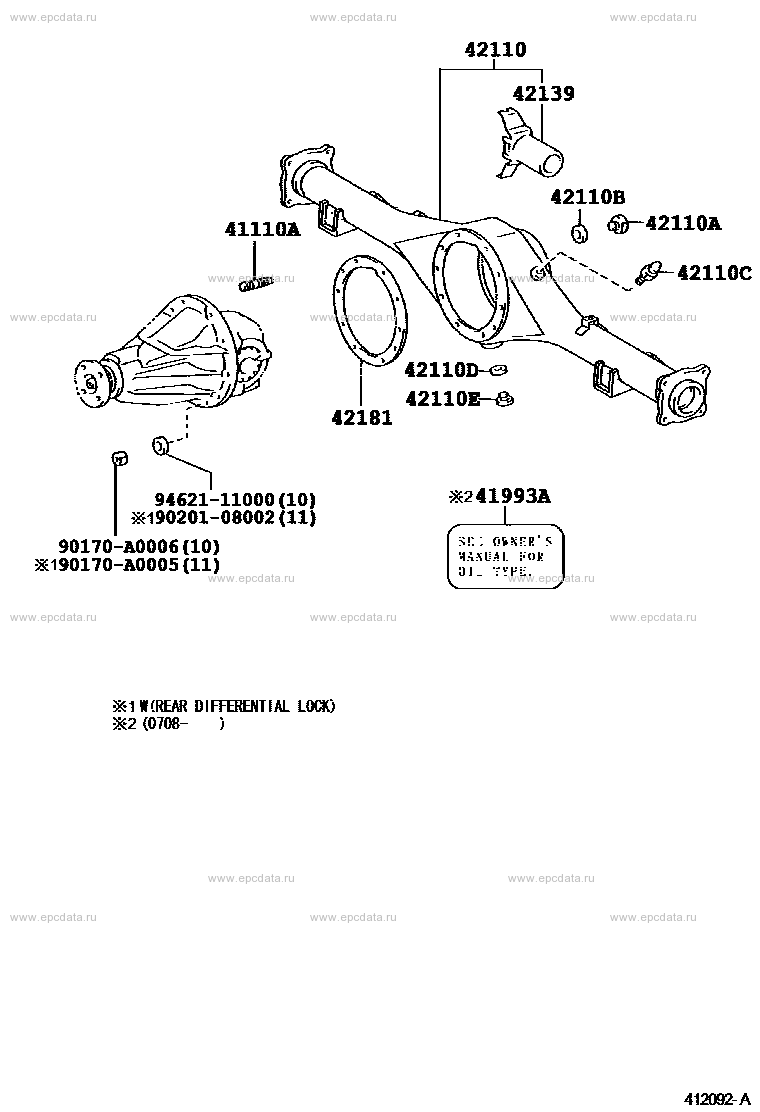

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 42181 GASKET, REAR DIFFERENTIAL CARRIER 90170A0005 ** Std Part 41110A BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) 42110 HOUSING ASSY, REAR AXLE 42110A PLUG (FOR REAR AXLE HOUSING FILLER) 42110B GASKET (FOR REAR AXLE HOUSING FILLER PLUG) 42110C PLUG, BREATHER (FOR REAR AXLE HOUSING) 42110D GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) 42110E PLUG (FOR REAR AXLE HOUSING DRAIN) 9020108002 ** Std Part 42139 DEFLECTOR, REAR AXLE HOUSING OIL 90170A0006 ** Std Part 9462111000 ** Std Part 41993A LABEL, REAR DIFFERENTIAL OIL INFORMATION

Tacoma TRN245L
