Switch & relay for Tacoma VZN170L
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
Click part number in the scheme or in the list: 84222 SWITCH, TRANSFER INDICATOR, NO.19043018008 ** Std Part 9017908059 ** Std Part 89465 SENSOR, OXYGEN 84210 SWITCH ASSY, BACK UP LAMP 89466 GASKET, OXYGEN SENSOR 89437 COVER, SENSOR 83420 GAGE ASSY, WATER TEMPERATURE SENDER 89615 SENSOR, KNOCK CONTROL 84222D SWITCH, TRANSFER INDICATOR, NO.4 84540 SWITCH ASSY, NEUTRAL START 9165140830 ** Std Part 84222B SWITCH, TRANSFER INDICATOR, NO.2 8271135530 ** Std Part 83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84222C SWITCH, TRANSFER INDICATOR, NO.3 89429 SENSOR, OIL TEMPERATURE 89467B SENSOR, AIR FUEL RATIO |
Scheme 2
|
Click part number in the scheme or in the list: 82600M FUSE, MEDIUM CURRENT82600F FUSE,FUSE BLOCK 85916P RELAY, HEADLAMP 28300 RELAY ASSY, STARTER 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916N RELAY, TAIL LAMP 9165260616 ** Std Part 9011906033 ** Std Part 89620 IGNITER ASSY 85440A SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL 89629 BRACKET, IGNITER ASSY 82662A COVER, RELAY BLOCK, UPPER, NO.1 82616 PULLER, FUSE 9165160614 ** Std Part 82663 COVER, RELAY BLOCK, LOWER 82690 RESISTOR ASSY, DIM DIP LAMP |
Scheme 3
|
Click part number in the scheme or in the list: 85916P RELAY, HEADLAMP** 82-02 82600F FUSE,FUSE BLOCK 85926 RELAY, HEADLAMP DIMMER 82600M FUSE, MEDIUM CURRENT ** 84-04 85530A RELAY, POWER POINT SOCKET 28300 RELAY ASSY, STARTER 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916N RELAY, TAIL LAMP 9165160616 ** Std Part 9008011231 ** Std Part 9011906033 ** Std Part 89438 SWITCH, POWER STEERING OIL PRESSURE 89620 IGNITER ASSY 85440A SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL 82662A COVER, RELAY BLOCK, UPPER, NO.1 89629 BRACKET, IGNITER ASSY 82616 PULLER, FUSE 9165160614 ** Std Part 9008011244 ** Std Part 82663 COVER, RELAY BLOCK, LOWER 82690 RESISTOR ASSY, DIM DIP LAMP |
Scheme 4
|
Click part number in the scheme or in the list: 28300 RELAY ASSY, STARTER** 82-02 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 82600F FUSE,FUSE BLOCK 85916N RELAY, TAIL LAMP 82662B COVER, RELAY BLOCK, UPPER, NO.2 85530A RELAY, POWER POINT SOCKET 9011906033 ** Std Part ** 84-04 82742 BLOCK, ENGINE ROOM RELAY, NO.2 89438 SWITCH, POWER STEERING OIL PRESSURE 85926 RELAY, HEADLAMP DIMMER 85916P RELAY, HEADLAMP 82663A COVER, RELAY BLOCK, LOWER, NO.2 89620 IGNITER ASSY 82662A COVER, RELAY BLOCK, UPPER, NO.1 82661 COVER, RELAY BLOCK, NO.1 82616 PULLER, FUSE 82741 BLOCK, ENGINE ROOM RELAY 82602 BLOCK SUB-ASSY, RELAY 82663 COVER, RELAY BLOCK, LOWER ** 84-14 |
Scheme 5
|
Click part number in the scheme or in the list: 9354044012 ** Std Part84118 KNOB, LIGHT CONTROL RHEOSTAT 84820 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84119 RHEOSTAT, LIGHT CONTROL 9017009002 ** Std Part 84870A SWITCH ASSY, OUTER MIRROR 85500 LIGHTER ASSY, CIGARETTE 85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85513 COVER, CIGARETTE LIGHTER 85533 LENS, CIGARETTE LIGHTER INDICATOR 84810 SWITCH ASSY, POWER WINDOW REGULATOR 84724 SWITCH, 4 WHEEL DRIVE CONTROL 84930 SWITCH ASSY, DOOR CONTROL 84480A SWITCH ASSY, CLUTCH START CANCEL 85500B BULB, CIGARETTE LIGHTER 85515 STAY, CIGARETTE LIGHTER BEZEL 84725 SWITCH, CENTER DIFFERENTIAL LOCK 84730 SWITCH ASSY, HEATER BLOWER 84330 SWITCH ASSY, HAZARD WARNING SIGNAL 84660C SWITCH, COOLER 84720A SWITCH ASSY, PATTERN SELECT, NO.1 84242 SWITCH, GLOVE BOX LAMP 84725B BLUB, DIFFERENTIAL LOCK SWITCH 84330B BULB, HAZARD WARNING SIGNAL SWITCH 84660D BULB (FOR COOLER SWITCH) |
Scheme 6
Scheme 7
|
Click part number in the scheme or in the list: 81980 FLASHER ASSY, TURN SIGNAL86530 RELAY ASSY, HORN 82600F FUSE,FUSE BLOCK 82642A RELAY, RUNNING LIGHT 82671D BLOCK, JUNCTION 9161160614 ** Std Part 82810 RELAY ASSY, RUNNING LIGHT 9008011201 ** Std Part 89533 COMPUTER, FOUR WHEEL DRIVE CONTROL 9011906311 ** Std Part 84340 SWITCH ASSY, STOP LAMP 9008011163 ** Std Part 84520 SWITCH ASSY, CLUTCH START 9413060800 ** Std Part 84550 SWITCH ASSY, PARKING BRAKE 9412041000 ** Std Part 85937 PROTECTOR, SHIFT LOCK CONTROL 85930 RELAY ASSY, POWER WINDOW 85933 COMPUTER, SHIFT LOCK CONTROL 82641 RELAY, INTEGRATION 82600G PLATE, CAUTION (FOR FUSE) 84727 SWITCH, SHIFT LOCK CONTROL |

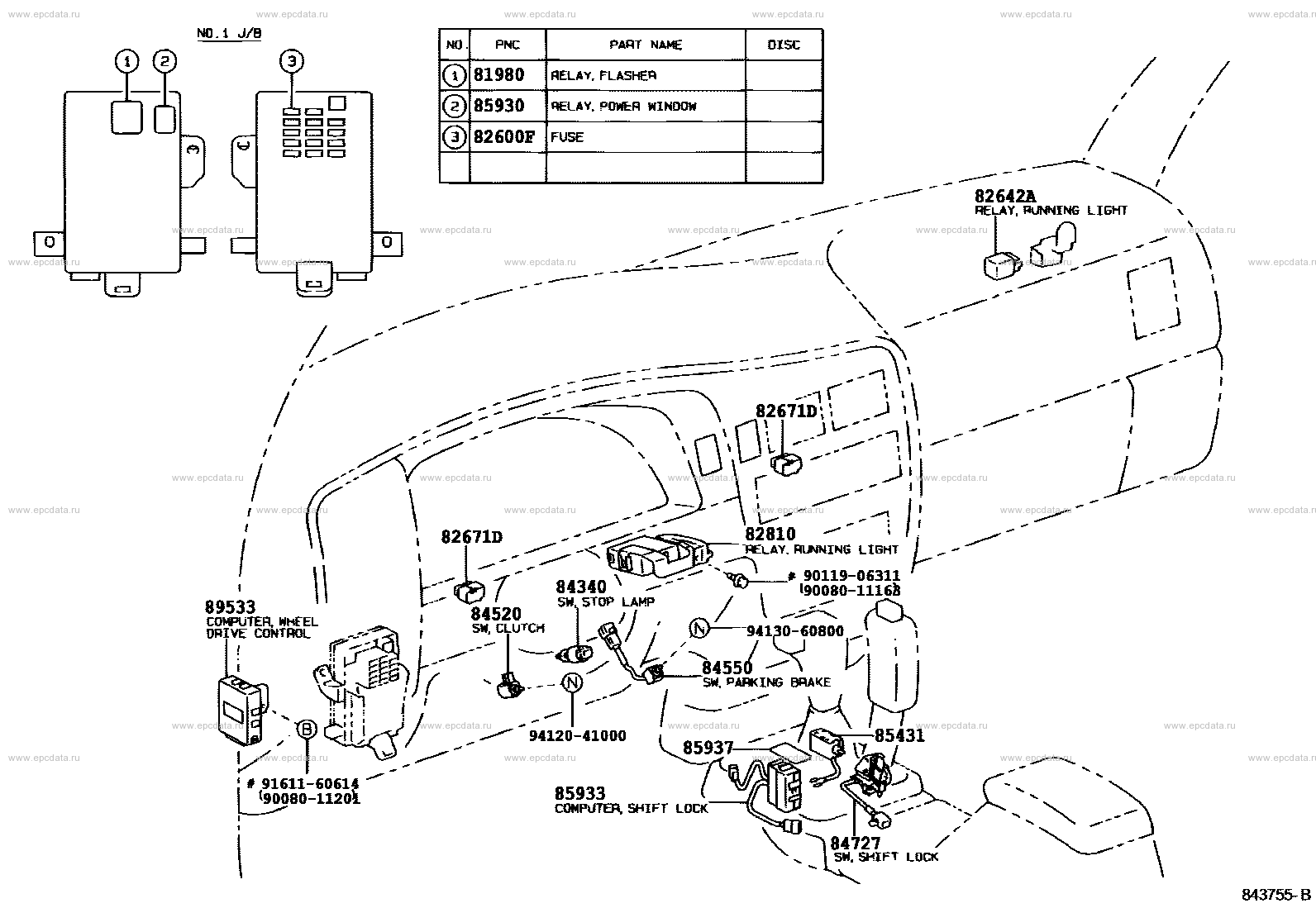

Scheme 8
|
Click part number in the scheme or in the list: 81980 FLASHER ASSY, TURN SIGNAL85930 RELAY ASSY, POWER WINDOW 82600F FUSE,FUSE BLOCK 82671D BLOCK, JUNCTION 89533 COMPUTER, FOUR WHEEL DRIVE CONTROL 9161160614 ** Std Part 9008011201 ** Std Part 9412041000 ** Std Part 84520 SWITCH ASSY, CLUTCH START 84340 SWITCH ASSY, STOP LAMP 84550 SWITCH ASSY, PARKING BRAKE 85933 COMPUTER, SHIFT LOCK CONTROL 85937 PROTECTOR, SHIFT LOCK CONTROL 82810 RELAY ASSY, RUNNING LIGHT 9011906311 ** Std Part 9008011163 ** Std Part 9413060800 ** Std Part 85431 SOLENOID, SHIFT LOCK 84727 SWITCH, SHIFT LOCK CONTROL 82642A RELAY, RUNNING LIGHT |
Scheme 9
Scheme 10
|
Click part number in the scheme or in the list: 84630C SWITCH ASSY, SPEED CONTROL MAIN9015950265 ** Std Part 9046400551 ** Std Part 9014940013 ** Std Part 84450 SWITCH ASSY, IGNITION OR STARTER 85432 SOLENOID, KEY INTER LOCK 84052 SWITCH ASSY, UN-LOCK WARNING 9016840113 ** Std Part 9331913008 ** Std Part 84310 SWITCH ASSY, TURN SIGNAL 84650 SWITCH ASSY, WINDSHIELD WIPER 84140 SWITCH ASSY, HEADLAMP DIMMER 89245B SENSOR, STEERING 89246B DISC, SENSOR STEERING 84306 CABLE SUB-ASSY, SPIRAL 9331915012 ** Std Part |
Scheme 11
|
Click part number in the scheme or in the list: 84233B CUSHION, COURTESY SWITCH (FOR FRONT DOOR)84931B SWITCH, DOOR CONTROL 85980 RELAY ASSY, DOOR CONTROL 9161160614 ** Std Part 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 83320 GAGE ASSY, FUEL SENDER 9331514012 ** Std Part 9331914008 ** Std Part 84750A SWITCH ASSY, SEAT |
