Front turn signal lamp for Tacoma VZN170L
Click on the part subgroup below to get genuine part numbers.

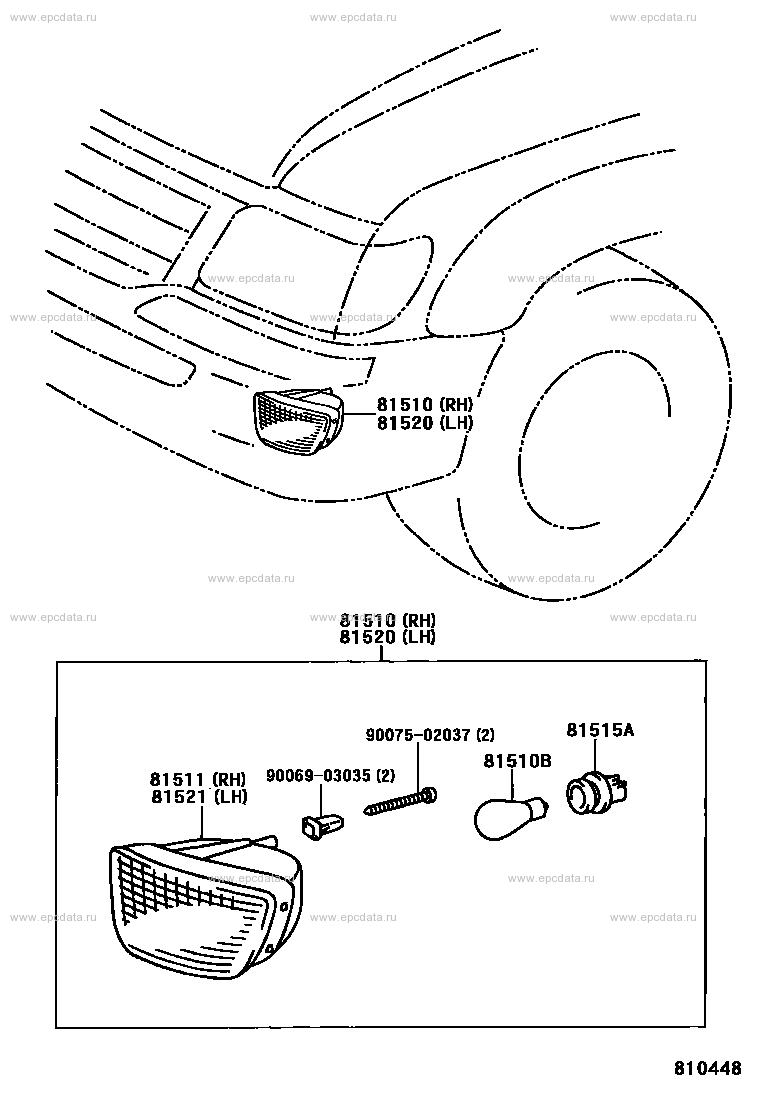

Scheme 1
|
Click part number in the scheme or in the list: 81510 LAMP ASSY, FRONT TURN SIGNAL, RH81520 LAMP ASSY, FRONT TURN SIGNAL, LH 81515A PLUG ASSY, FRONT TURN SIGNAL LAMP 81512 GASKET, FRONT TURN SIGNAL LAMP LENS, RH 81510B BULB (FOR FRONT TURN SIGNAL LAMP) 81522 GASKET, FRONT TURN SIGNAL LAMP LENS, LH 81511 LENS, FRONT TURN SIGNAL LAMP, RH 81521 LENS, FRONT TURN SIGNAL LAMP, LH 9007510016 ** Std Part 8173987003 ** Std Part |

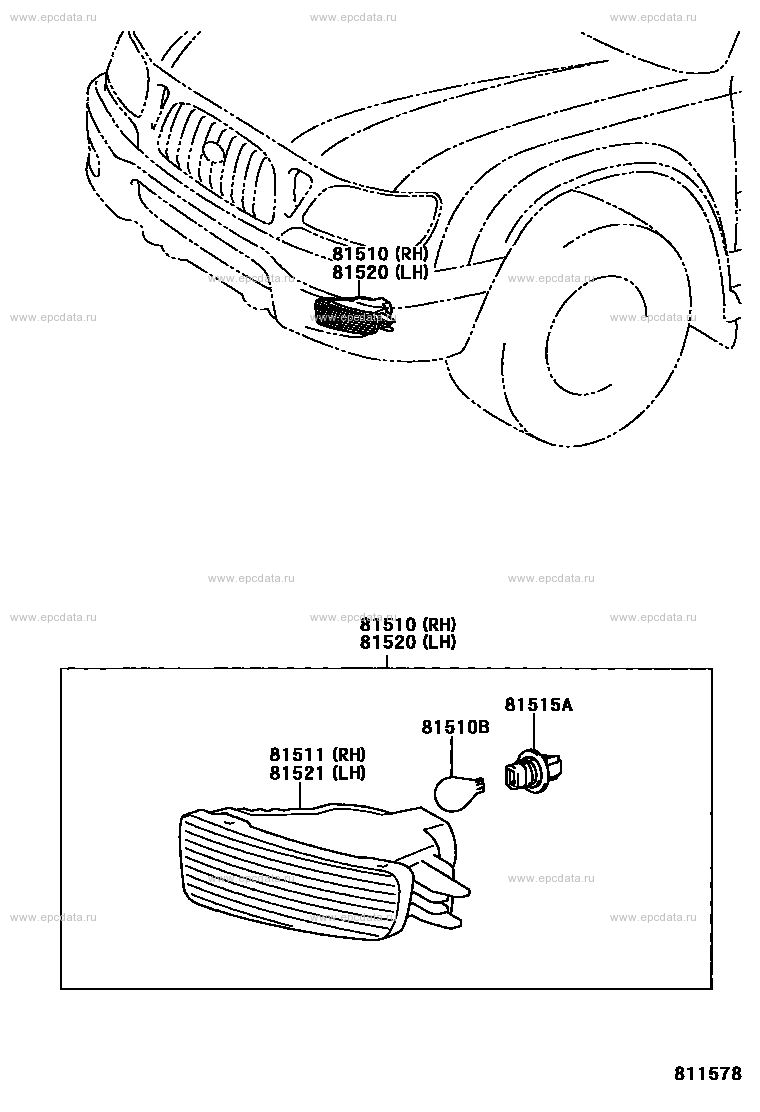

Scheme 2
|
Click part number in the scheme or in the list: 81510 LAMP ASSY, FRONT TURN SIGNAL, RH81520 LAMP ASSY, FRONT TURN SIGNAL, LH 81515A PLUG ASSY, FRONT TURN SIGNAL LAMP 9007502037 ** Std Part 81510B BULB (FOR FRONT TURN SIGNAL LAMP) 9006903035 ** Std Part 81511 LENS, FRONT TURN SIGNAL LAMP, RH 81521 LENS, FRONT TURN SIGNAL LAMP, LH |
Scheme 3
|
Click part number in the scheme or in the list: 81510 LAMP ASSY, FRONT TURN SIGNAL, RH81520 LAMP ASSY, FRONT TURN SIGNAL, LH 81515A PLUG ASSY, FRONT TURN SIGNAL LAMP 81510B BULB (FOR FRONT TURN SIGNAL LAMP) 81511 LENS, FRONT TURN SIGNAL LAMP, RH 81521 LENS, FRONT TURN SIGNAL LAMP, LH |
