Electronic fuel injection system for Tacoma VZN170L

Click on the part subgroup below to get genuine part numbers.

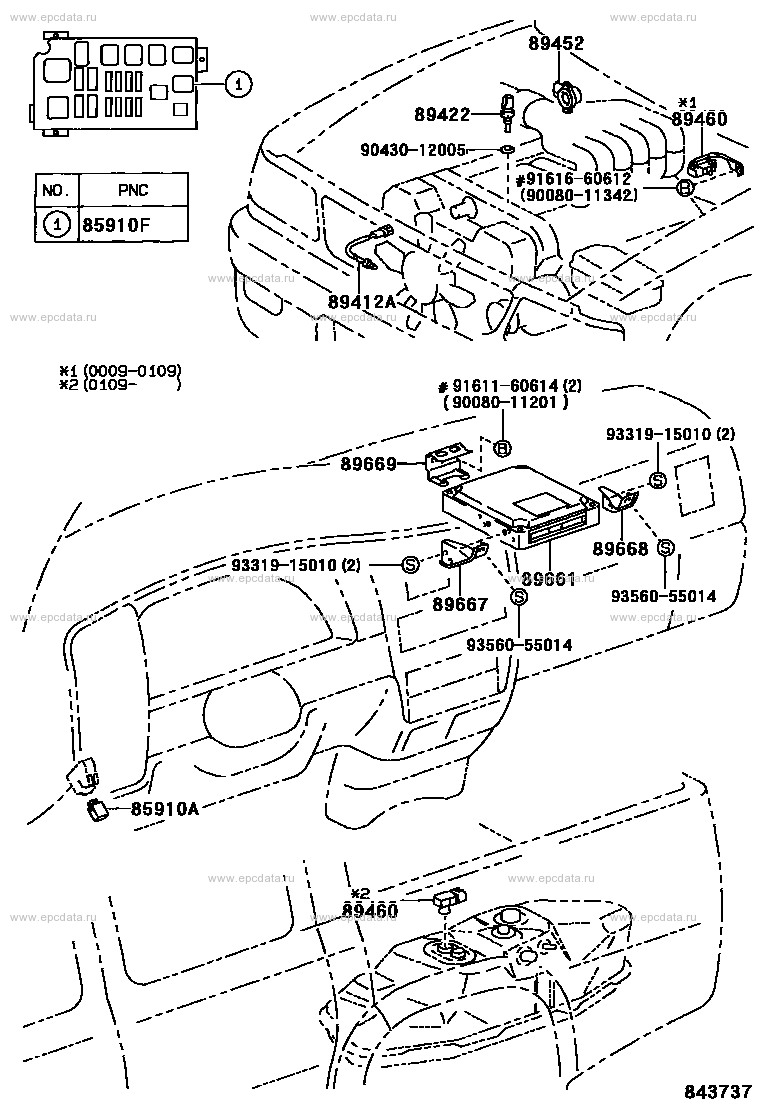

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9161660612 ** Std Part 89460 SENSOR ASSY, VAPOR PRESSURE 9008011342 ** Std Part 89424 SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) 89452 SENSOR, THROTTLE POSITION (FOR E.F.I.) 89422 SENSOR, WATER TEMPERATURE (FOR E.F.I.) 9043012005 ** Std Part 89412A SENSOR, E.G.R GAS TEMPERATURE 85910F RELAY,COMPUTER (FOR E.F.I) 9161160614 ** Std Part 9008011201 ** Std Part 9331915010 ** Std Part 89669 BRACKET, ENGINE CONTROL COMPUTER, NO.3 89668 BRACKET, ENGINE CONTROL COMPUTER, NO.2 89661 COMPUTER, ENGINE CONTROL 89667 BRACKET, ENGINE CONTROL COMPUTER 85910A RELAY ASSY, CIRCUIT OPENING (FOR E.F.I.) 9356055014 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 89452 SENSOR, THROTTLE POSITION (FOR E.F.I.) 89422 SENSOR, WATER TEMPERATURE (FOR E.F.I.) 89460 SENSOR ASSY, VAPOR PRESSURE 9043012005 ** Std Part 9161660612 ** Std Part 9008011342 ** Std Part 85910F RELAY,COMPUTER (FOR E.F.I) 89412A SENSOR, E.G.R GAS TEMPERATURE 9161160614 ** Std Part 9008011201 ** Std Part 9331915010 ** Std Part 89669 BRACKET, ENGINE CONTROL COMPUTER, NO.3 89668 BRACKET, ENGINE CONTROL COMPUTER, NO.2 89661 COMPUTER, ENGINE CONTROL 9356055014 ** Std Part 89667 BRACKET, ENGINE CONTROL COMPUTER 85910A RELAY ASSY, CIRCUIT OPENING (FOR E.F.I.)

Tacoma VZN170L
