Mirror for Tacoma VZN170L

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 87910 MIRROR ASSY, OUTER REAR VIEW, RH 87940 MIRROR ASSY, OUTER REAR VIEW, LH 9151260616 ** Std Part 87917B MIRROR, OUTER REAR VIEW, RH 9151160616 ** Std Part 87947B MIRROR, OUTER REAR VIEW, LH 9017906097 ** Std Part 87918 KNOB, CONTROL OUTER MIRROR 9321954010 ** Std Part

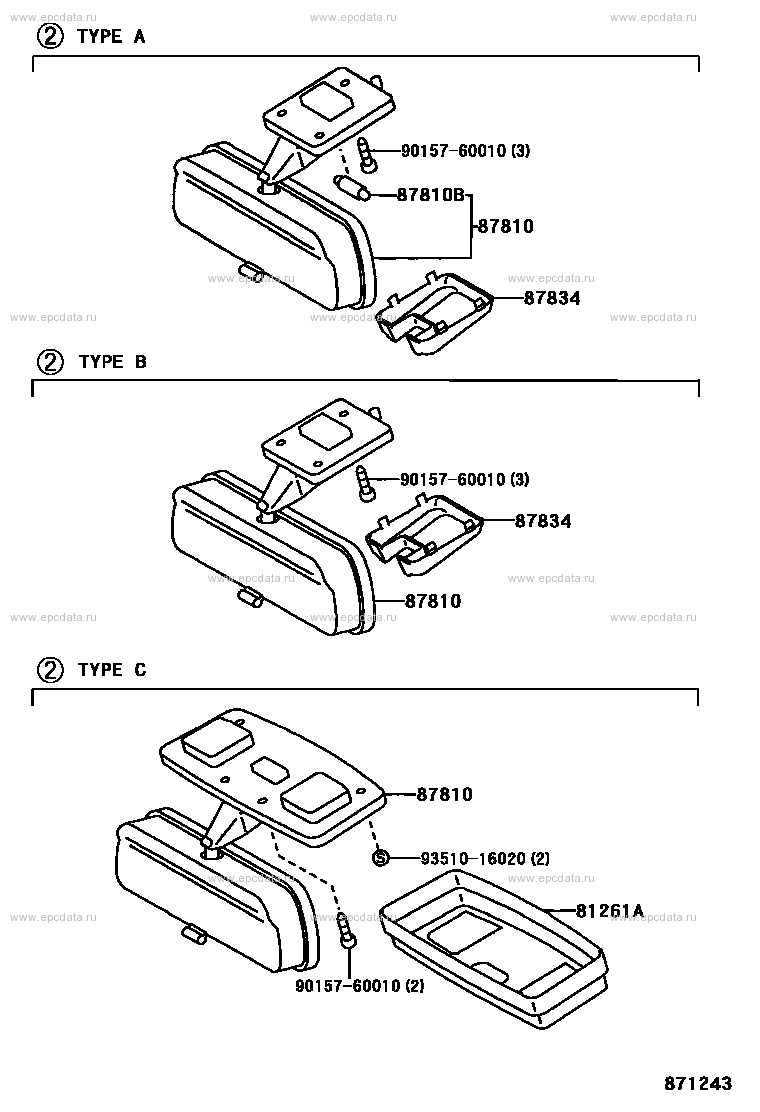

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9015760010 ** Std Part 87810B BULB, INNER REAR VIEW MIRROR LAMP 87810 MIRROR ASSY, INNER REAR VIEW 87834 COVER, INNER REAR VIEW MIRROR STAY HOLDER 9351016020 ** Std Part 81261A LENS AND COVER, MAP LAMP

Tacoma VZN170L
