Vacuum piping for Tacoma VZN170L
Click on the part subgroup below to get genuine part numbers.

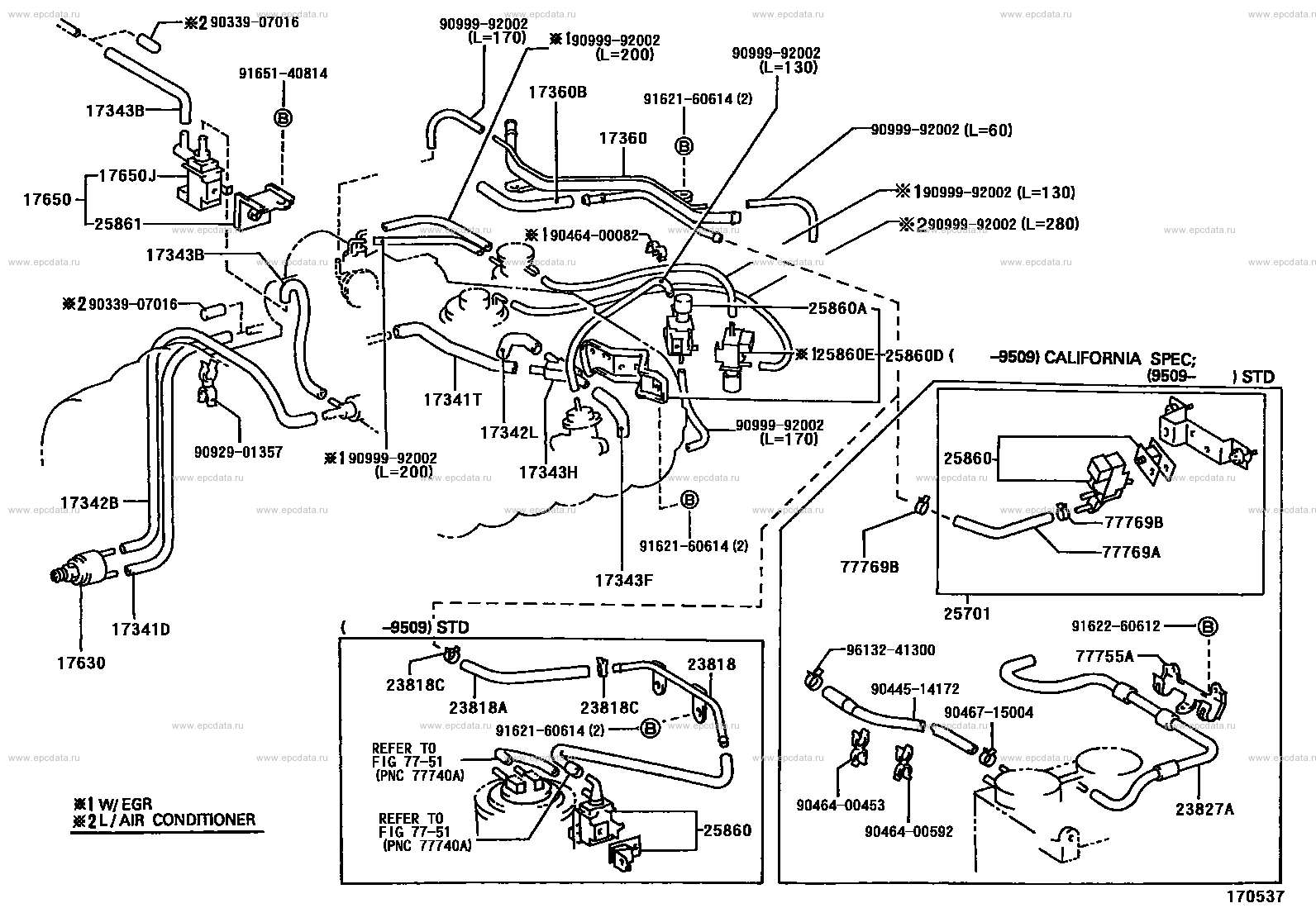

Scheme 1

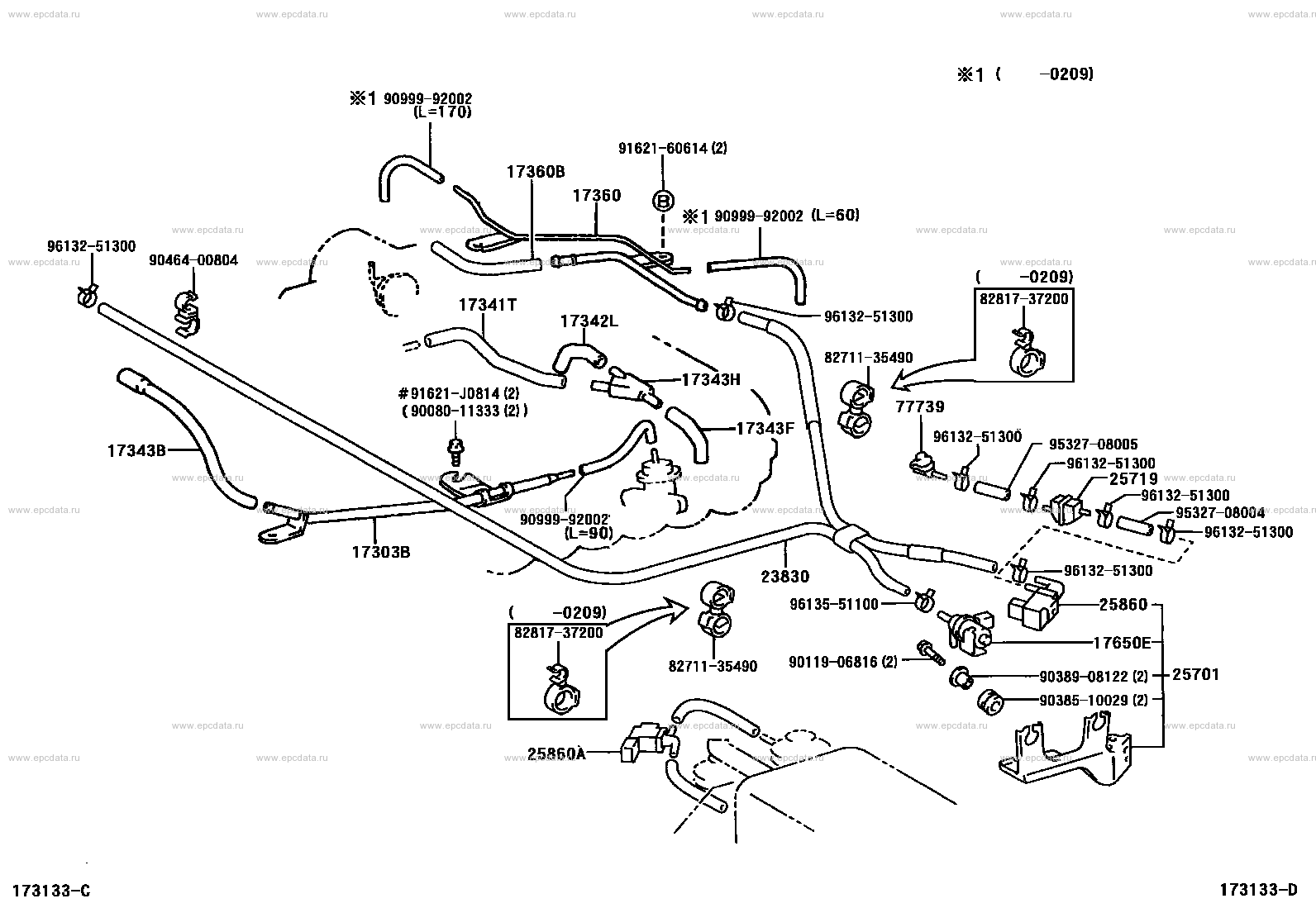

Scheme 2

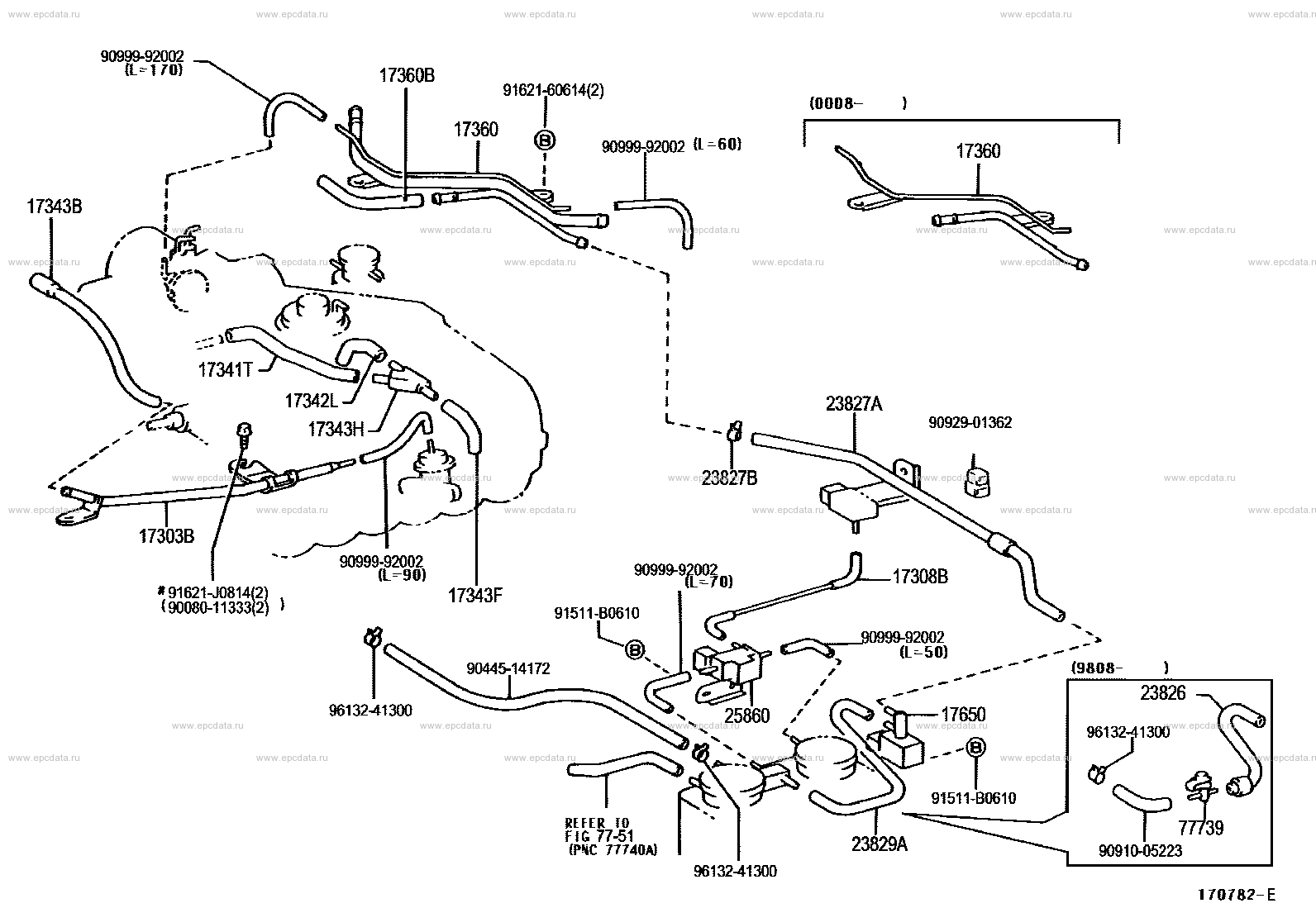

Scheme 3
|
Click part number in the scheme or in the list: 9099992002 ** Std Part17343B HOSE, NO.3 (FOR IDLE-UP) 9092901357 ** Std Part 17342B HOSE, NO.2 (FOR IDLE-UP) 17630 VALVE ASSY, AIR CONTROL 17341D HOSE, NO.1 (FOR IDLE-UP) 17303B PIPE SUB-ASSY, AIR, NO.1 9613241300 ** Std Part 9044514172 ** Std Part 17360B HOSE (FOR AIR PIPE) 9162160614 ** Std Part 17360 TUBE ASSY, AIR 9046400082 ** Std Part 25860D VALVE ASSY, VACUUM SWITCHING, NO.2 23827A HOSE, FUEL VAPOR FEED, NO.2 17308B HOSE SUB-ASSY, VACUUM 17650 VALVE ASSY, VACUUM SWITCHING 25860E VALVE, VACUUM SWITCHING, NO.2 23829A HOSE, FUEL VAPOR FEED 9046715004 ** Std Part ** 77-51 25860 VALVE ASSY, VACUUM SWITCHING, NO.1 9092901362 ** Std Part 17343F HOSE, AIR, NO.3 91621J0814 ** Std Part 9046400483 ** Std Part 17341T HOSE, AIR, NO.1 17342L HOSE, AIR, NO.2 17343H WAY, 3 (FOR AIR HOSE) 23827B CLIP (FOR FUEL VAPOR FEED HOSE, NO.2) 91511B0610 ** Std Part |
Scheme 4
|
Click part number in the scheme or in the list: 9099992002 ** Std Part25860 VALVE ASSY, VACUUM SWITCHING, NO.1 ** 77-51 17343B HOSE, NO.3 (FOR IDLE-UP) 91511B0610 ** Std Part 23827B CLIP (FOR FUEL VAPOR FEED HOSE, NO.2) 17342L HOSE, AIR, NO.2 17343H WAY, 3 (FOR AIR HOSE) 17303B PIPE SUB-ASSY, AIR, NO.1 9613241300 ** Std Part 9044514172 ** Std Part 17360B HOSE (FOR AIR PIPE) 9162160614 ** Std Part 17360 TUBE ASSY, AIR 9092901362 ** Std Part 17343F HOSE, AIR, NO.3 91621J0814 ** Std Part 17341T HOSE, AIR, NO.1 23827A HOSE, FUEL VAPOR FEED, NO.2 17308B HOSE SUB-ASSY, VACUUM 17650 VALVE ASSY, VACUUM SWITCHING 23829A HOSE, FUEL VAPOR FEED 23826 HOSE, FUEL VAPOR FEED, NO.1 77739 VALVE, EVAP SERVICE PORT 9091005223 ** Std Part 9008011333 ** Std Part |
Scheme 5
