Rear spring & shock absorber for Tundra UCK30

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 04483 SHACKLE KIT, REAR SPRING 48046A BOLT, U (FOR REAR SPRING) 48210A BUSH (FOR REAR SPRING SHACKLE UPPER) 48306 BUMPER SUB-ASSY, REAR SPRING 48414B BRACKET, SPRING, NO.3, RH 48415B BRACKET, SPRING, NO.3, LH 48416A BRACKET, SPRING, NO.4 RH 48417A BRACKET, SPRING, NO.4 LH 48473 SEAT, REAR SPRING U BOLT 48530A BUSH (FOR REAR SHOCK ABSORBER) 48530G CUSHION, REAR SHOCK ABSORBER, NO.1 48530J RETAINER, CUSHION, NO.1 (FOR REAR SHOCK ABSORBER) 48530K CUSHION, REAR SHOCK ABSORBER, NO.2 48530P RETAINER, CUSHION, NO.2 (FOR REAR SHOCK ABSORBER) 48750A NUT (FOR REAR SUPPORT TO REAR SHOCK ABSORBER) 48530 ABSORBER ASSY, SHOCK, REAR RH 48540 ABSORBER ASSY, SHOCK, REAR LH 9010512080 ** Std Part 9008010138 ** Std Part 9020114025 ** Std Part 9017914039 ** Std Part 9020115012 ** Std Part 9017914019 ** Std Part 9008917059 ** Std Part ** 41-01 9017912091 ** Std Part 90105A0013 ** Std Part 9010514132 ** Std Part

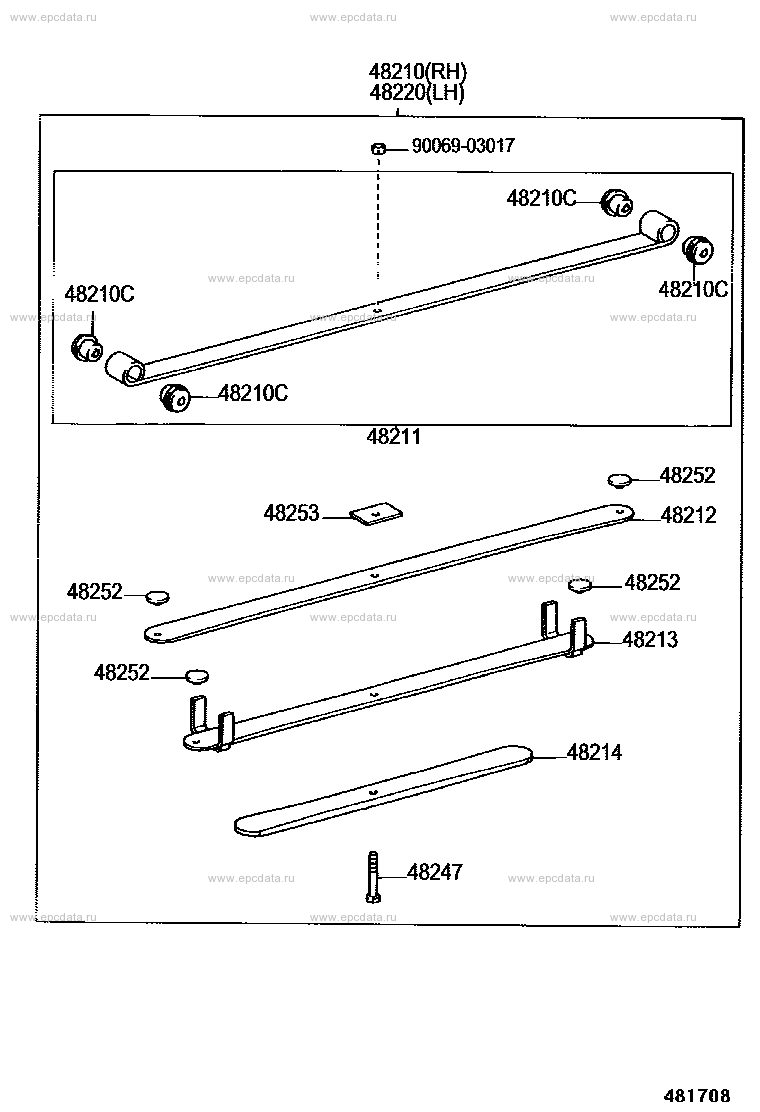

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 48210C BUSH (FOR REAR SPRING LEAF) 48210 SPRING ASSY, REAR RH 48220 SPRING ASSY, REAR LH 9006903017 ** Std Part 48211 LEAF, REAR SPRING, NO.1 48253 SPACER, REAR SPRING, NO.1 48252 SILENCER, REAR SPRING 48247 BOLT, REAR SPRING, CENTER 48214 LEAF, REAR SPRING, NO.4 48213 LEAF, REAR SPRING, NO.3 48212 LEAF, REAR SPRING, NO.2

Tundra UCK30
