Switch & relay for Tundra UCK30
Click on the part subgroup below to get genuine part numbers.

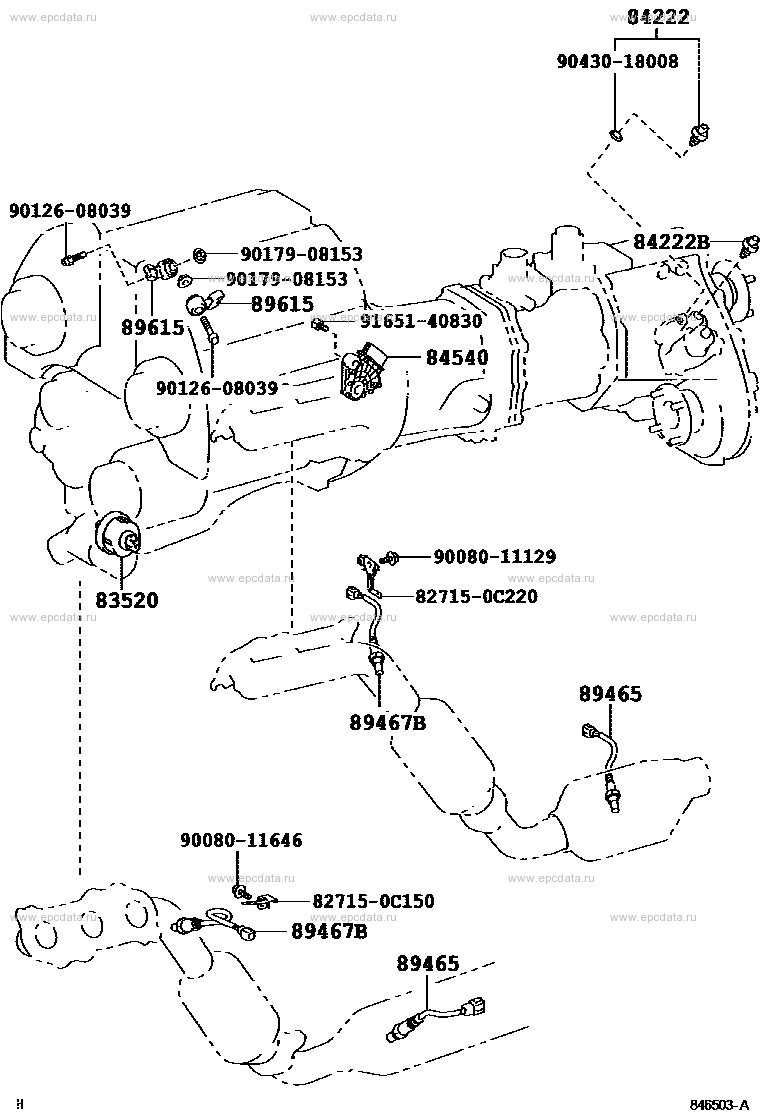

Scheme 1
|
Click part number in the scheme or in the list: 89615 SENSOR, KNOCK CONTROL84540 SWITCH ASSY, NEUTRAL START 9165140830 ** Std Part 827150C220 ** Std Part 827150C150 ** Std Part 9008011129 ** Std Part 9017908153 ** Std Part 9012608039 ** Std Part 9008011646 ** Std Part 84222B SWITCH, TRANSFER INDICATOR, NO.2 84222 SWITCH, TRANSFER INDICATOR, NO.1 9043018008 ** Std Part 89467B SENSOR, AIR FUEL RATIO 89465 SENSOR, OXYGEN 83520 GAGE ASSY,OIL PRESSURE SENDER |
Scheme 2
|
Click part number in the scheme or in the list: ** 84-14** 82-02 ** 84-04 82642A RELAY, RUNNING LIGHT 82600F FUSE,FUSE BLOCK 28300 RELAY ASSY, STARTER 85916Y RELAY, TOWING TAIL 85926 RELAY, HEADLAMP DIMMER 82663 COVER, RELAY BLOCK, LOWER 85916D RELAY, FOG LAMP 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 82690 RESISTOR ASSY, DIM DIP LAMP 9008011395 ** Std Part 9008011369 ** Std Part 82661 COVER, RELAY BLOCK, NO.1 28380A RESISTER, FUEL PUMP 82741 BLOCK, ENGINE ROOM RELAY 85930G RELAY, ACC 89438 SWITCH, POWER STEERING OIL PRESSURE 9008011403 ** Std Part 85910X RELAY, HEATER MIRROR 85916P RELAY, HEADLAMP 82616 PULLER, FUSE 827150C050 ** Std Part 82660C BLOCK ASSY, RELAY |

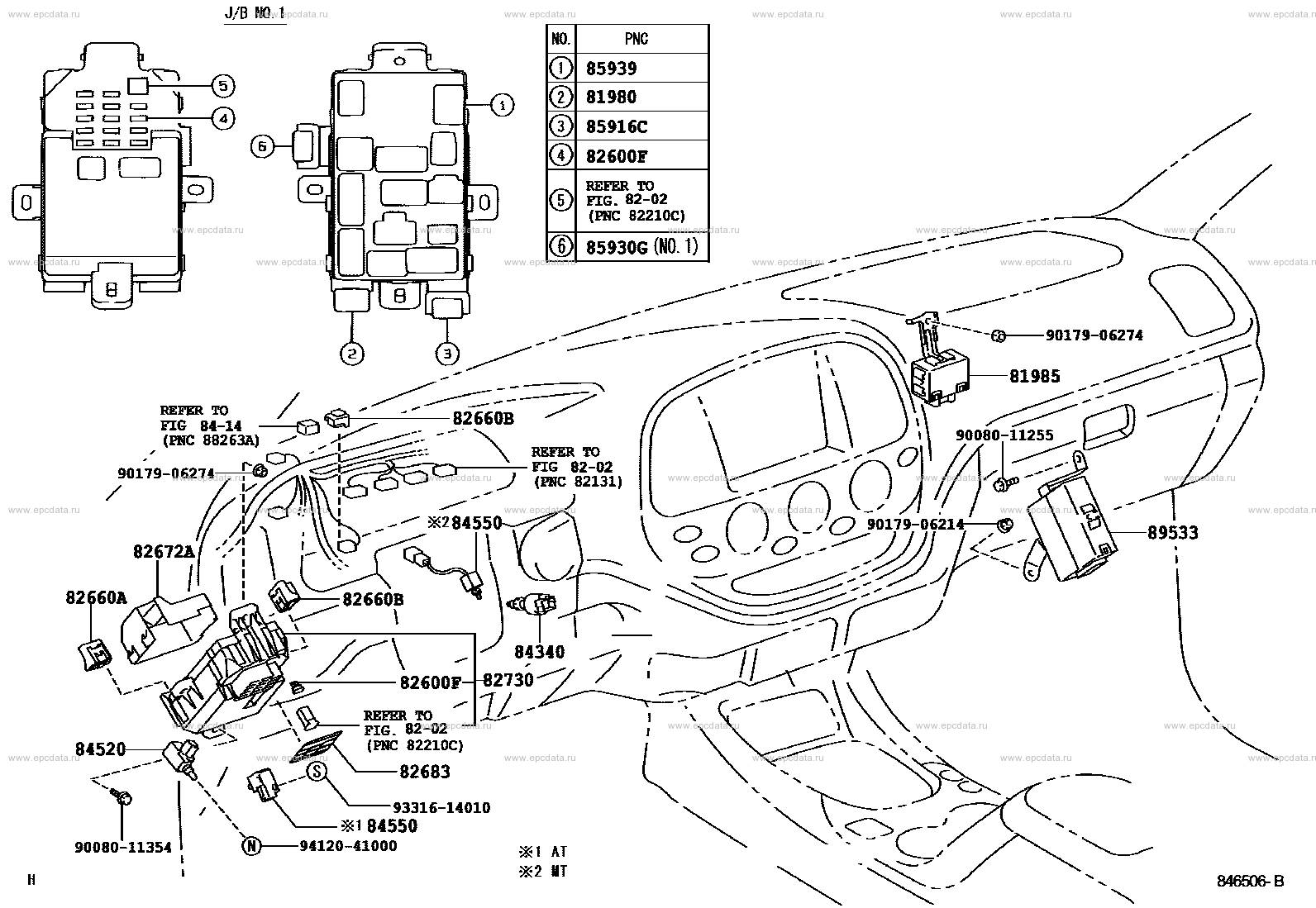

Scheme 3
|
Click part number in the scheme or in the list: 85939 RELAY, POWER WINDOW81980 FLASHER ASSY, TURN SIGNAL 85916C RELAY, BACK UP LAMP 85930G RELAY, ACC 82600F FUSE,FUSE BLOCK 82672A COVER, JUNCTION BLOCK 82660A BLOCK ASSY, RELAY, COWL SIDE 82660B BLOCK ASSY, RELAY 84520 SWITCH ASSY, CLUTCH START 84340 SWITCH ASSY, STOP LAMP 9412041000 ** Std Part 82683 PLATE, FUSE BLOCK CAUTION 82730 BLOCK ASSY, INSTRUMENT PANEL JUNCTION 84550 SWITCH ASSY, PARKING BRAKE 9017906214 ** Std Part 9008011255 ** Std Part 81985 RELAY, TOWING CONVERTER 9017906274 ** Std Part 89533 COMPUTER, FOUR WHEEL DRIVE CONTROL 9331614010 ** Std Part 9008011354 ** Std Part ** 82-02 ** 84-14 |

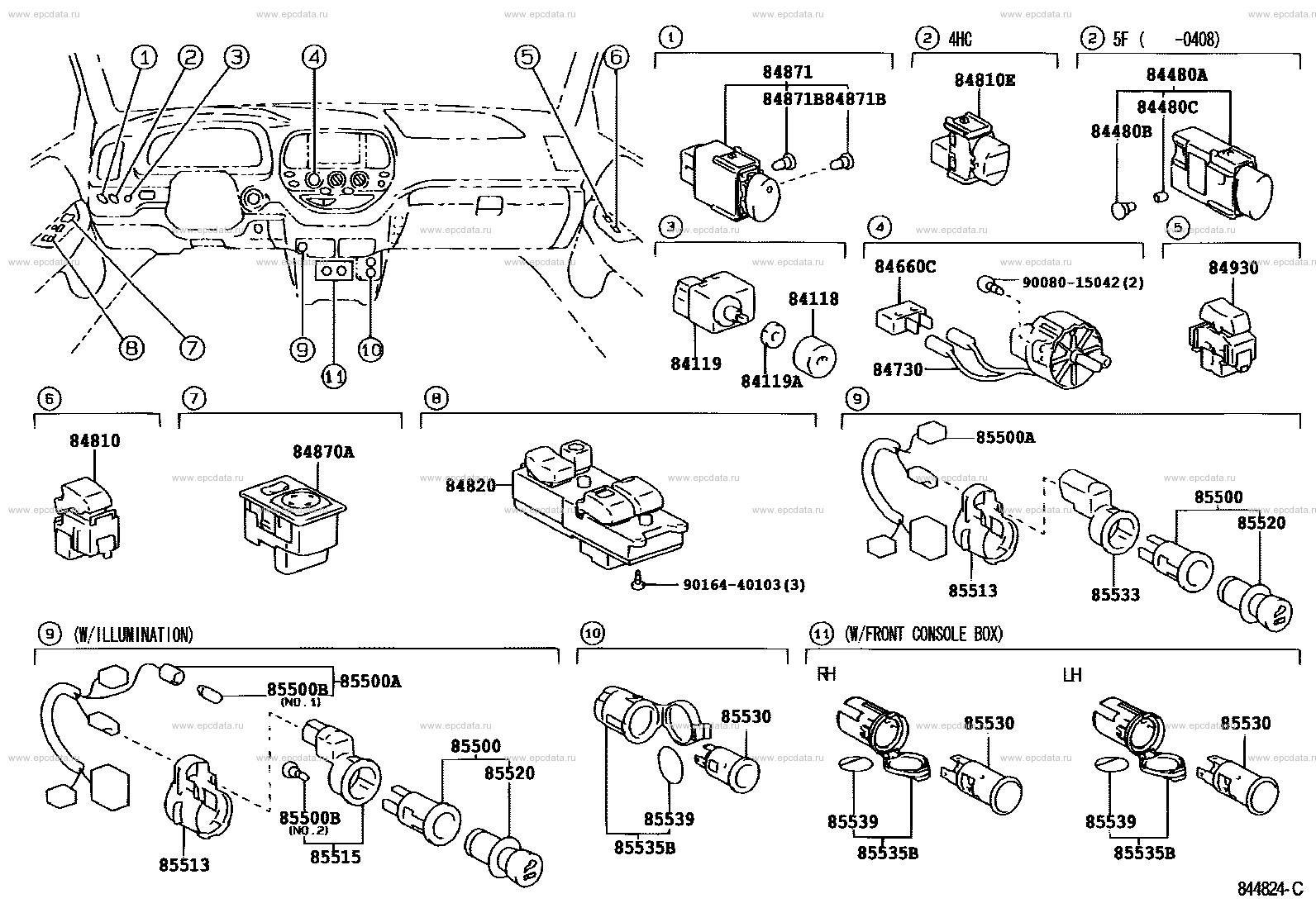

Scheme 4
|
Click part number in the scheme or in the list: 84810 SWITCH ASSY, POWER WINDOW REGULATOR85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85500 LIGHTER ASSY, CIGARETTE 85533 LENS, CIGARETTE LIGHTER INDICATOR 85513 COVER, CIGARETTE LIGHTER 85500A WIRE, CIGARETTE LIGHTER 85500B BULB, CIGARETTE LIGHTER 85515 STAY, CIGARETTE LIGHTER BEZEL 85539 LABEL, POWER OUTLET NOTICE 85535B COVER, POWER POINT SOCKET 85530 SOCKET ASSY, POWER POINT 9016440103 ** Std Part 84930 SWITCH ASSY, DOOR CONTROL 84660C SWITCH, COOLER 9008015042 ** Std Part 84480A SWITCH ASSY, CLUTCH START CANCEL 84480B BULB, MAIN SWITCH ASSY 84480C CAP BULB, MAIN SWITCH ASSY 84810E SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR 84871B BULB, OUTER MIRROR HEATER SWITCH 84871 SWITCH ASSY, OUTER MIRROR HEATER 84118 KNOB, LIGHT CONTROL RHEOSTAT 84119 RHEOSTAT, LIGHT CONTROL 84119A BOLT OR NUT, RHEOSTAT CONTROL SET 84730 SWITCH ASSY, HEATER BLOWER 84820 MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84870A SWITCH ASSY, OUTER MIRROR |
Scheme 5
|
Click part number in the scheme or in the list: 84480B BULB, MAIN SWITCH ASSY** 55-51 84810E SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR 84870A SWITCH ASSY, OUTER MIRROR 84118 KNOB, LIGHT CONTROL RHEOSTAT 84119 RHEOSTAT, LIGHT CONTROL 84119A BOLT OR NUT, RHEOSTAT CONTROL SET 84480 SWITCH ASSY, MAIN 84415 SWITCH, CURTAIN AIRBAG CUTOFF ** 84-35 |
Scheme 6
Scheme 7
|
Click part number in the scheme or in the list: 84310 SWITCH ASSY, TURN SIGNAL9331915012 ** Std Part 84258A COVER, STEERING PAD, RH 84247A SWITCH, STEERING PAD, LH 9015950199 ** Std Part 84052 SWITCH ASSY, UN-LOCK WARNING ** 45-01 84450 SWITCH ASSY, IGNITION OR STARTER 89246B DISC, SENSOR STEERING 9016840129 ** Std Part 9046400551 ** Std Part 89245B SENSOR, STEERING 84140 SWITCH ASSY, HEADLAMP DIMMER 84650 SWITCH ASSY, WINDSHIELD WIPER 84306 CABLE SUB-ASSY, SPIRAL 9331914012 ** Std Part |
Scheme 8
|
Click part number in the scheme or in the list: 83320 GAGE ASSY, FUEL SENDER9331914008 ** Std Part 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 9010906296 ** Std Part 84922 SWITCH, FRONT POWER SEAT 84656A BEZEL, SWITCH 84921B KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) 84921A KNOB, POWER SEAT SWITCH (FOR RECLINING) 9353054010 ** Std Part 9356054012 ** Std Part 84170A SWITCH ASSY, ROOM LAMP NO.1 84920D SWITCH ASSY, POWER SEAT FRONT LH 84920 SWITCH ASSY, POWER SEAT |
