Radiator & water outlet for Tundra UCK30

Click on the part subgroup below to get genuine part numbers.

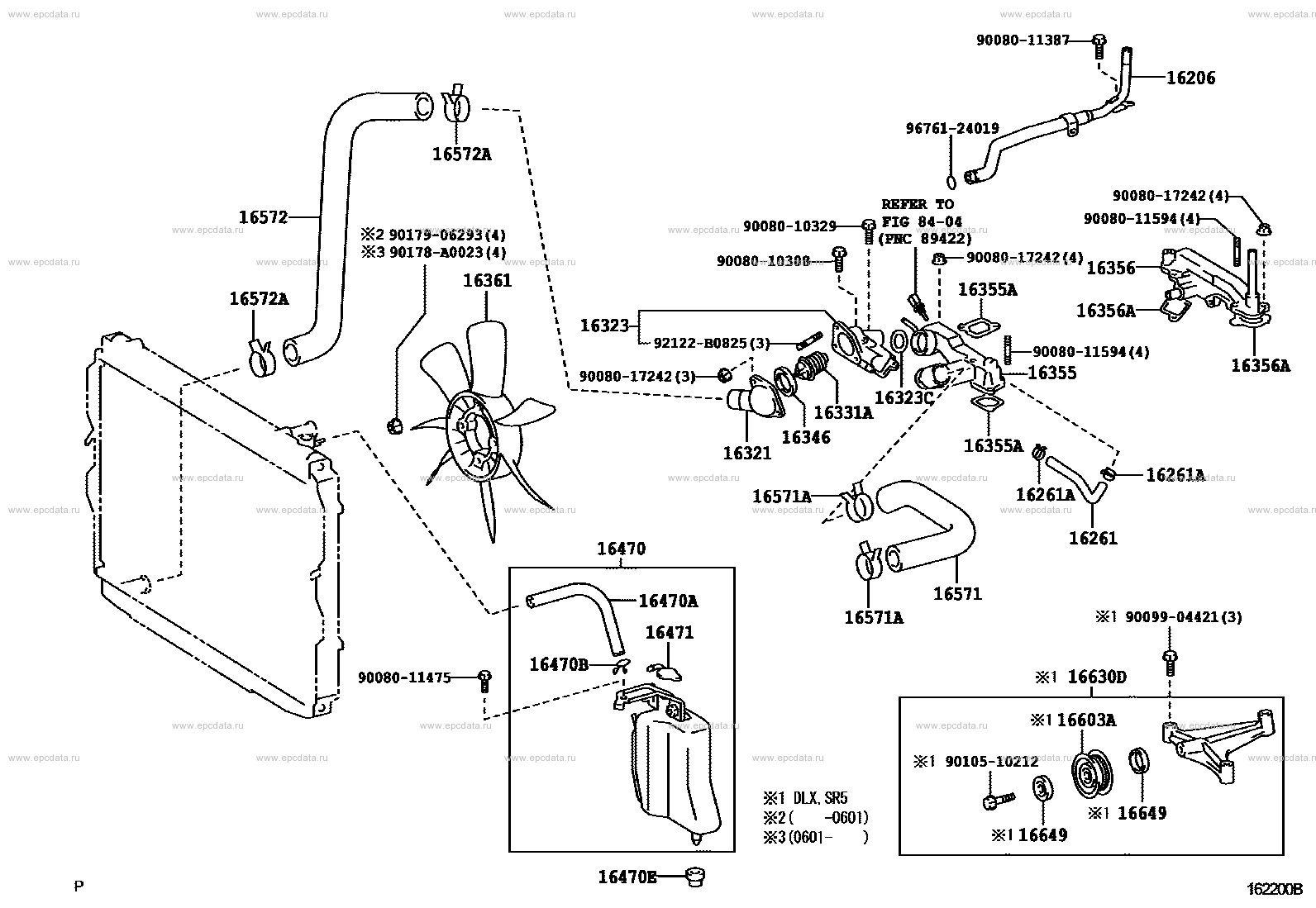

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 16572A CLAMP OR CLIP, HOSE (FOR RADIATOR OUTLET, NO.1) 90178A0023 ** Std Part 16572 HOSE, RADIATOR, OUTLET 16361 FAN 9676124019 ** Std Part 16206 PIPE SUB-ASSY,WATER BY-PASS 9008010329 ** Std Part 9008011387 ** Std Part 9008010308 ** Std Part 16331A THERMOSTAT 92122B0825 ** Std Part 9008017242 ** Std Part 16346 GASKET, THERMOSTAT 16323 HOUSING, WATER INLET 16321 INLET, WATER 9008011594 ** Std Part 16356 JOINT, WATER BY-PASS, RR 16356A GASKET (WATER BY-PASS JOINT,RR) 16355A GASKET (FOR WATER BY-PASS JOINT,FR) 16355 JOINT, WATER BY-PASS, FR 16261 HOSE, WATER BY-PASS 16261A CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE) 16571 HOSE, RADIATOR, INLET 16571A CLAMP OR CLIP, HOSE (FOR RADIATOR INLET) 16323C RING, O (FOR WATER INLET HOUSING) 9009904421 ** Std Part 16630D PULLEY ASSY, IDLER 9010510212 ** Std Part 16649 PLATE, IDLER PULLEY COVER 16603A PULLEY SUB-ASSY, IDLER, NO.1 9008011475 ** Std Part 16470E GROMMET, RADIATOR RESERVE TANK HOSE 16470 TANK ASSY, RADIATOR RESERVE 16470B CLAMP OR CLIP (FOR RADIATOR RESERVE TANK HOSE) 16470A HOSE OR PIPE (FOR RADIATOR RESERVE TANK) 16471 CAP SUB-ASSY, RESERVE TANK 9017906293 ** Std Part ** 84-04

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 16711 SHROUD, FAN 16702A CLIP (FOR FAN SHROUD NO.2) 16712 SHROUD, FAN, NO.2 9008011369 ** Std Part 9008011405 ** Std Part 16461 TANK, RADIATOR, LOWER 16491A RING, O (FOR ATM OIL COOLER) 16400 RADIATOR ASSY 16441 TANK, RADIATOR, UPPER 16442 RING, O (FOR RADIATOR UPPER TANK) 16453 PLATE, RADIATOR SIDE 16454 PLATE, RADIATOR SIDE 16400R BUSHING (FOR RADIATOR) 16401 CAP SUB-ASSY, RADIATOR 16462 RING, O (FOR RADIATOR LOWER TANK) 16400S COLLAR (FOR RADIATOR) 16400F PACKING (FOR RADIATOR DRAIN COCK) 16400B PLUG, RADIATOR DRAIN COCK 16455 BOLT, RADIATOR SIDE SUPPORT PLATE 16403F CORE SUB-ASSY, RADIATOR
