Radio & tape player for Tundra UCK30

Frame number: 5TBRT34172S262383

Color code: 1D6

Trim code:1D6

Manufacture date: 2001.12

Click on the part subgroup below to get genuine part numbers.

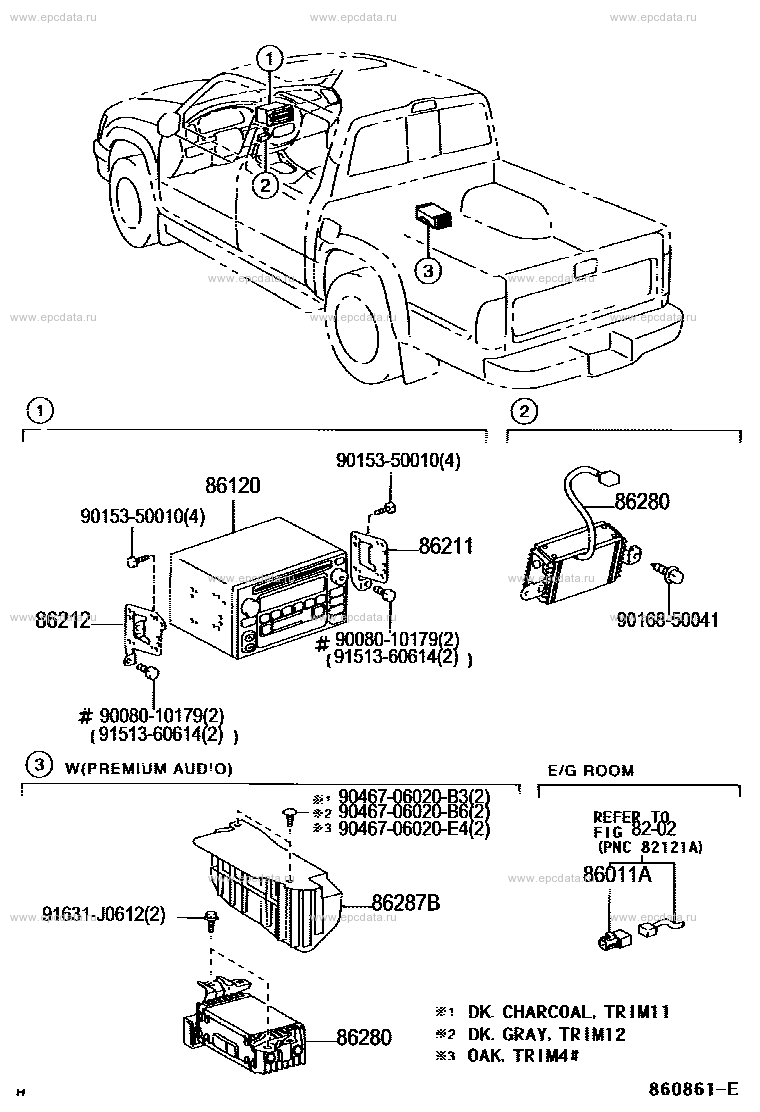

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 9015350010 ** Std Part 86120 RECEIVER ASSY, RADIO 86212 BRACKET, RADIO, NO.2 9008010179 ** Std Part 9151360614 ** Std Part 9046706020B6 ** Std Part 86287B COVER, AMPLIFIER 86280 AMPLIFIER ASSY, STEREO COMPONENT 91631J0612 ** Std Part 86011A CONDENSER, RADIO SETTING ** 82-02 9016850041 ** Std Part 86211 BRACKET, RADIO, NO.1 9046706020B3 ** Std Part 9046706020E4 ** Std Part

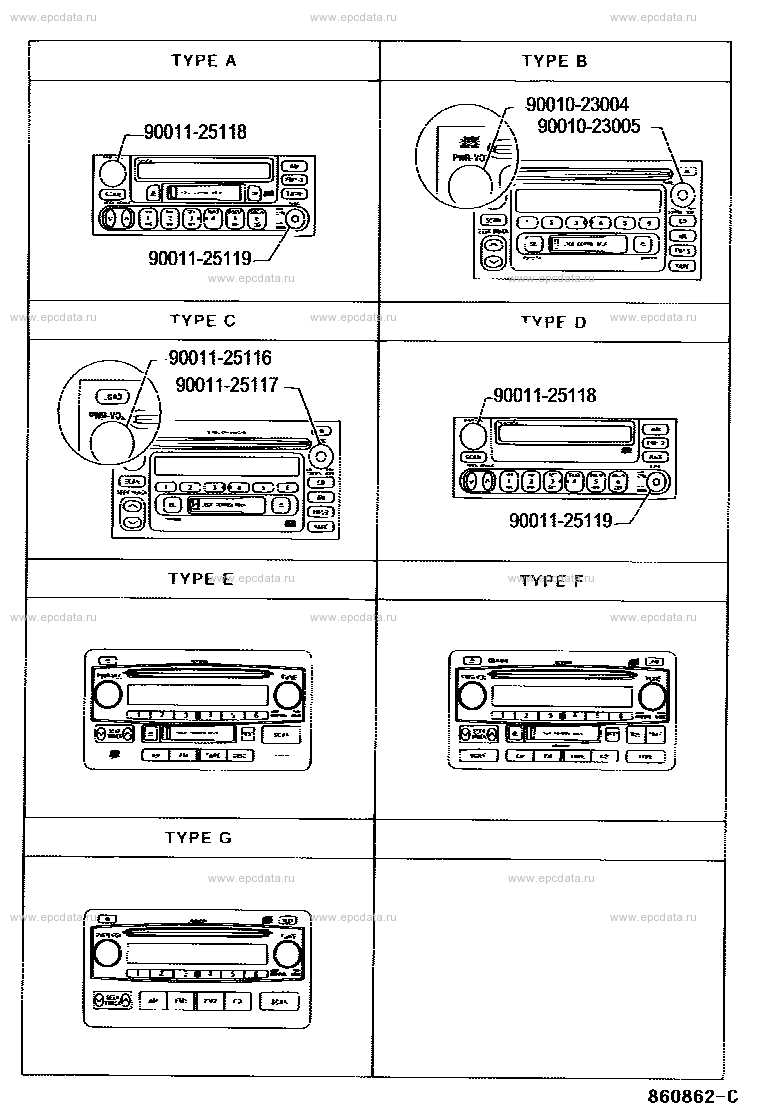

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9001023004 ** Std Part 9001023005 ** Std Part 9001125118 ** Std Part 9001125119 ** Std Part 9001125116 ** Std Part 9001125117 ** Std Part

Tundra UCK30
