Heating & air conditioning - compressor for Tundra UCK30

Frame number: 5TBRT34172S262383

Color code: 1D6

Trim code:1D6

Manufacture date: 2001.12

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 88320 COMPRESSOR ASSY, COOLER 88431 BRACKET, COMPRESSOR MOUNTING, NO.1 9009904421 ** Std Part 88330A WASHER (FOR MAGNET CLUTCH) 9151281040 ** Std Part 9008010189 ** Std Part 88688K BRACKET, COOLER COMPRESSOR 9009904498 ** Std Part 90178A0048 ** Std Part 9331915008 ** Std Part 88301 ROTOR SUB-ASSY, MAGNET CLUTCH 88302 STATOR SUB-ASSY, MAGNET CLUTCH 88403 HUB SUB-ASSY, MAGNET CLUTCH 88410 CLUTCH ASSY, MAGNET 9009907114 ** Std Part 9009907065 ** Std Part 9009904349 ** Std Part

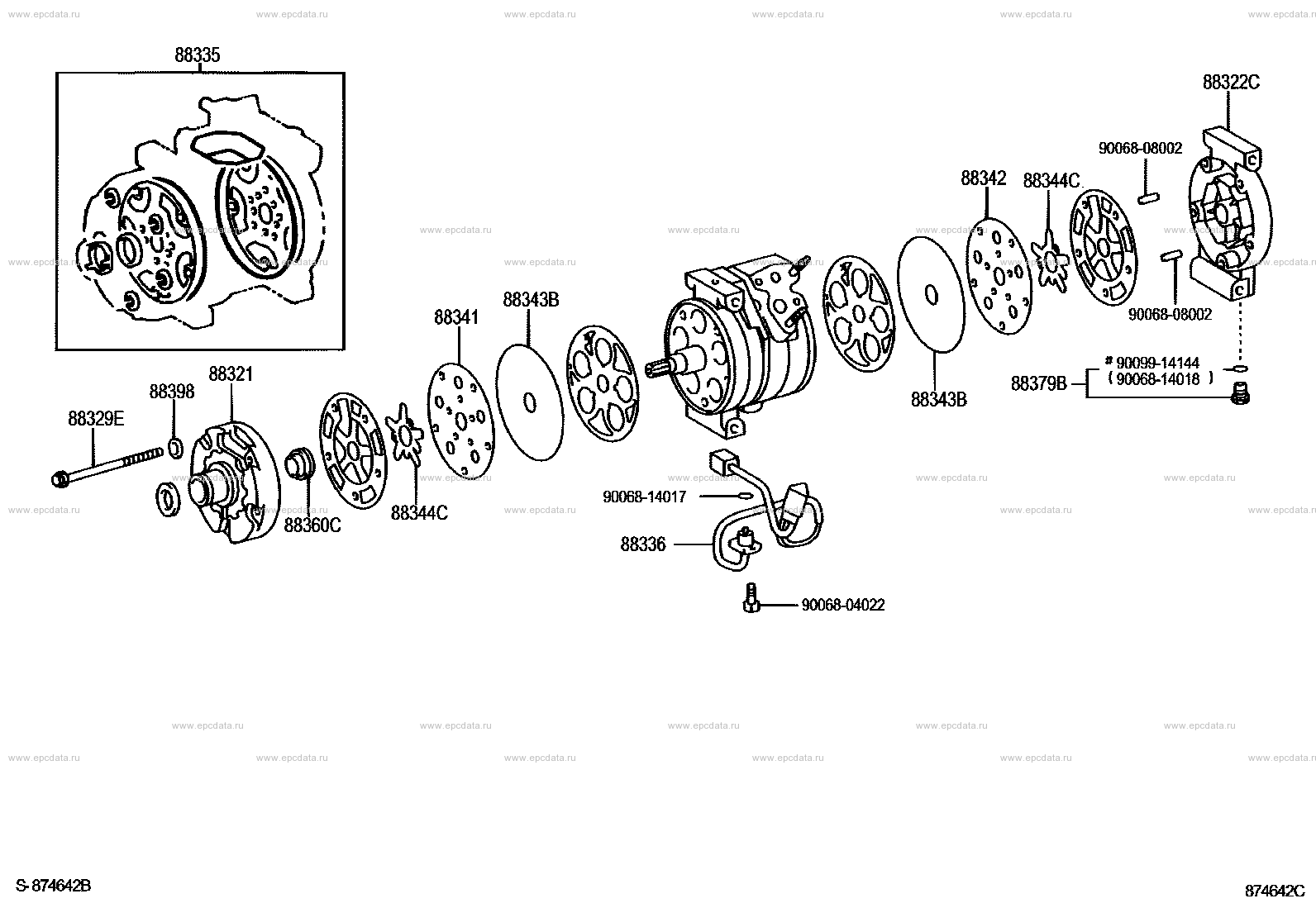

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 88335 GASKET KIT, OVERHAUL 88321 HEAD, COOLER COMPRESSOR CYLINDER 88398 PACKING, COMPRESSOR 88329E BOLT, COMPRESSOR, NO.1 88360C SEAL ASSY, SHAFT 88341 PLATE, FRONT VALVE 88343B REED, SUCTION VALVE 88344C REED, DISCHARGE VALVE 88336 SENSOR, COMPRESSOR 9006814017 ** Std Part 9006804022 ** Std Part 9006808002 ** Std Part 88379B VALVE, PRESSURE RELIEF 88322C HEAD, CYLINDER, REAR 88342 PLATE, COMPRESSOR VALVE, RR 9009914144 ** Std Part 9006814018 ** Std Part

Tundra UCK30
