Heating & air conditioning - cooler unit for Tundra UCK30
Click on the part subgroup below to get genuine part numbers.

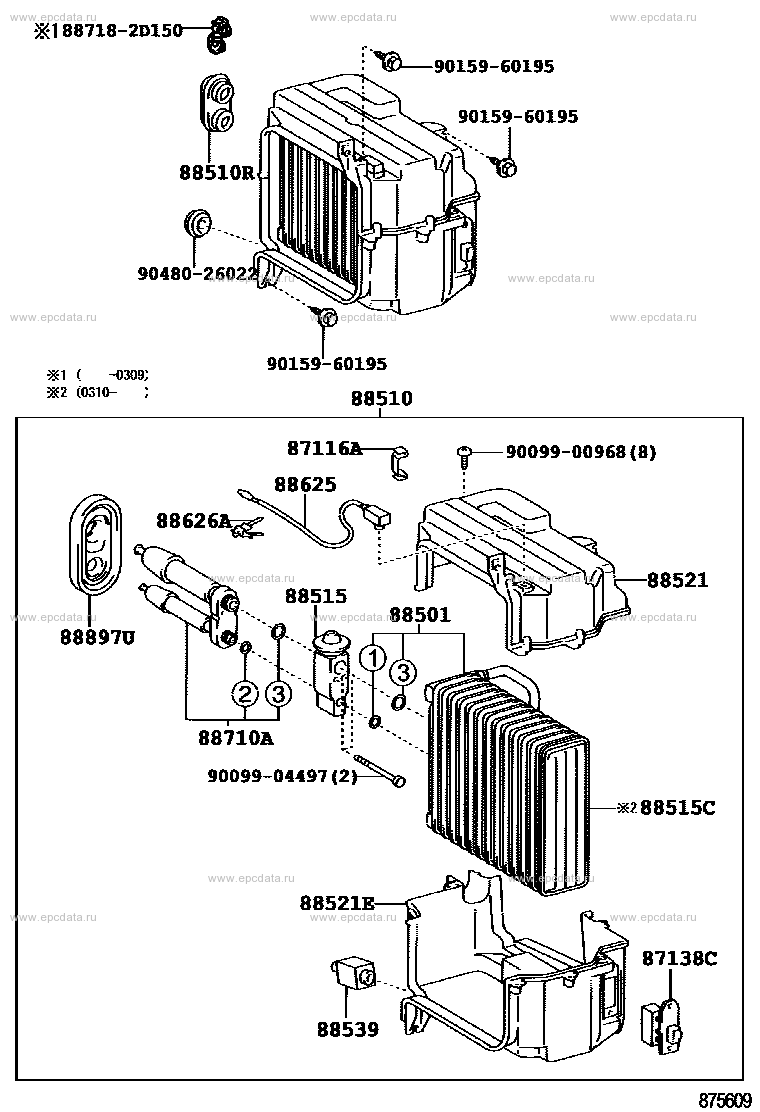

Scheme 1
|
Click part number in the scheme or in the list: 88510R GROMMET (FOR COOLER UNIT)9048026022 ** Std Part 887182D150 ** Std Part 9015960195 ** Std Part 88521 CASE, COOLER UNIT 88510 UNIT ASSY, COOLER 88625 THERMISTOR, COOLER, NO.1 88626A HOLDER, THERMISTOR 88897U PIPE, ASPIRATOR 87116A SPRING, HOLDING (FOR COOLER UNIT CASE) 88710A TUBE ASSY, AIR CONDITIONER 88515 VALVE, COOLER EXPANSION 88521E CASE SUB-ASSY, COOLING UNIT 88539 HOSE, COOLER UNIT DRAIN, NO.1 88501 EVAPORATOR SUB-ASSY, COOLER, NO.1 87138C RESISTOR, BLOWER 9009904497 ** Std Part 9009900968 ** Std Part 88515C VALVE, COOLING BOX EXPANSION |
Scheme 2
|
Click part number in the scheme or in the list: 9006908007 ** Std Part9006908011 ** Std Part 9006908009 ** Std Part 9006908012 ** Std Part 9009914119 ** Std Part 9009914121 ** Std Part 9009914120 ** Std Part 9009914122 ** Std Part |
