ToyotaTundraUCK30UCK30L-ARBLKABody and interiorSeat belt

Seat belt for Tundra UCK30

Scheme 1 Scheme 2 Scheme 3

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Click part number in the scheme or in the list:

61841A BRACKET, SHOULDER BELT ANCHOR, RH
9008010177 ** Std Part
73210 BELT ASSY, FRONT SEAT OUTER, RH
9008010345 ** Std Part
73223B COVER, FRONT SEAT BELT RETRACTOR, RH
73178A CAP, SEAT BELT ANCHOR COVER
73240 BELT ASSY, FRONT SEAT INNER, LH
73224 COVER, FRONT SEAT BELT RETRACTOR, LH
61842B BRACKET, SHOULDER BELT ANCHOR, LH
73220 BELT ASSY, FRONT SEAT OUTER, LH
73016A BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH
9008010112 ** Std Part
9017911010 ** Std Part
73223C CLIP, FRONT SEAT BELT RETRACTOR COVER
73230 BELT ASSY, FRONT SEAT INNER, RH
73015A BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH
73219 STOPPER, TONGUE PLATE

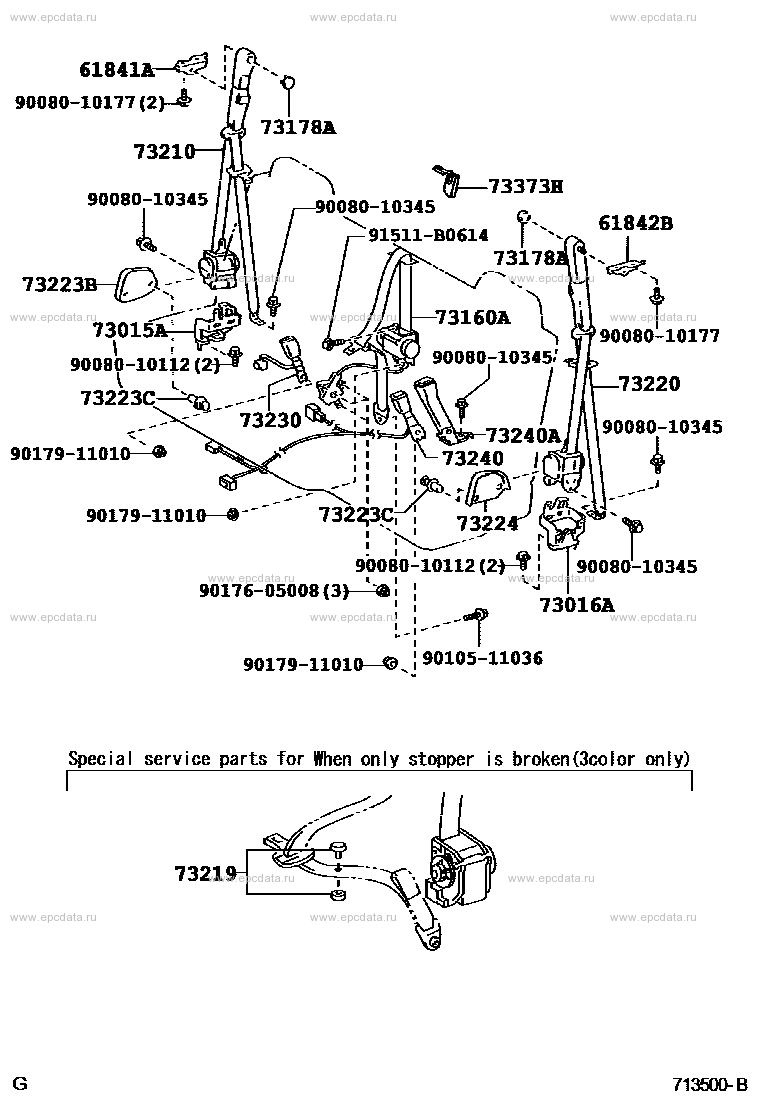

Scheme 2

Click part number in the scheme or in the list:

61841A BRACKET, SHOULDER BELT ANCHOR, RH
9008010177 ** Std Part
73210 BELT ASSY, FRONT SEAT OUTER, RH
9008010345 ** Std Part
73223B COVER, FRONT SEAT BELT RETRACTOR, RH
73015A BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH
73178A CAP, SEAT BELT ANCHOR COVER
91511B0614 ** Std Part
9017911010 ** Std Part
9010511036 ** Std Part
73230 BELT ASSY, FRONT SEAT INNER, RH
73240 BELT ASSY, FRONT SEAT INNER, LH
73240A BELT ASSY, FRONT SEAT INNER LH
73160A SEAT BELT ASSY, FRONT CENTER, RH
73224 COVER, FRONT SEAT BELT RETRACTOR, LH
73223C CLIP, FRONT SEAT BELT RETRACTOR COVER
61842B BRACKET, SHOULDER BELT ANCHOR, LH
73220 BELT ASSY, FRONT SEAT OUTER, LH
73016A BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH
9008010112 ** Std Part
73219 STOPPER, TONGUE PLATE
73373H COVER, FRONT SEAT SHOULDER BELT
9017605008 ** Std Part

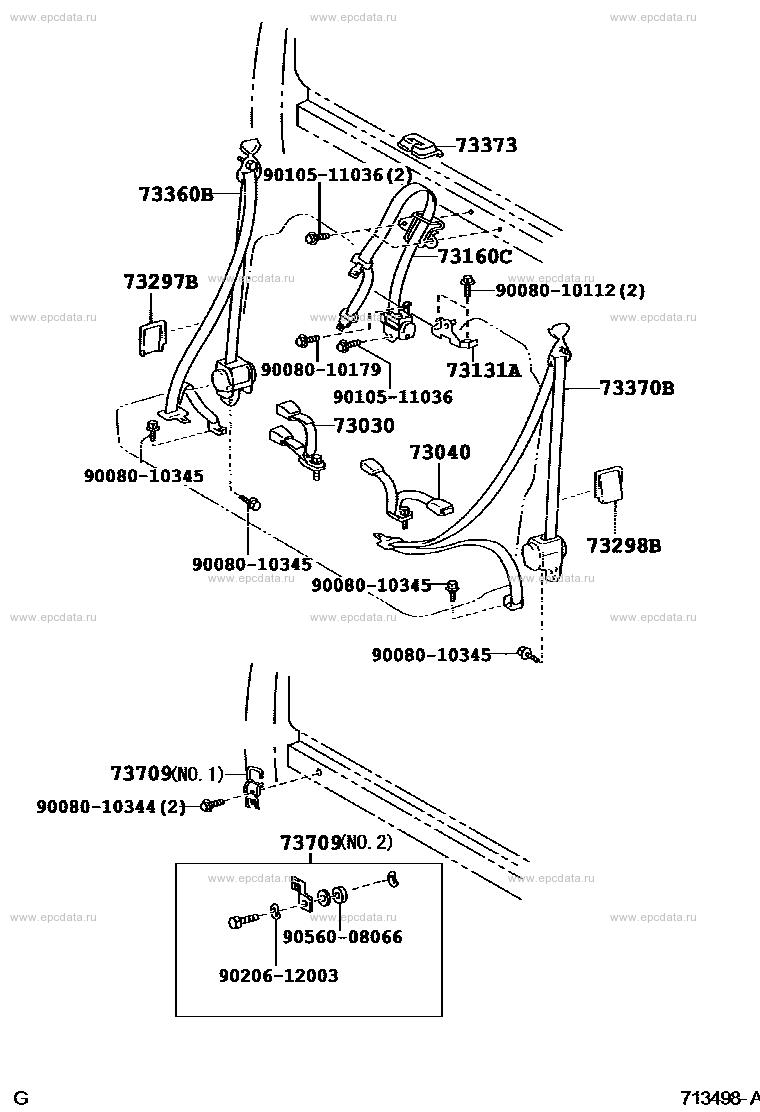

Scheme 3

Click part number in the scheme or in the list:

73360B BELT ASSY, REAR SEAT, OUTER
73030 BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER RH
73040 BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER LH
73709 BRACKET SUB-ASSY, TETHER ANCHOR
73370B BELT ASSY, REAR SEAT, OUTER
73298B COVER, QUARTER TRIM BELT HOLE, LH
73297B COVER, QUARTER TRIM BELT HOLE, RH
73160C BELT ASSY, FRONT CENTER SEAT, RH
73131A BRACKET, SEAT BELT
73373 COVER, REAR SEAT SHOULDER BELT
9008010345 ** Std Part
9020612003 ** Std Part
9010511036 ** Std Part
9008010179 ** Std Part
9008010112 ** Std Part
9008010344 ** Std Part
9056008066 ** Std Part
