Brake pedal & bracket for Tundra UCK30

Click on the part subgroup below to get genuine part numbers.

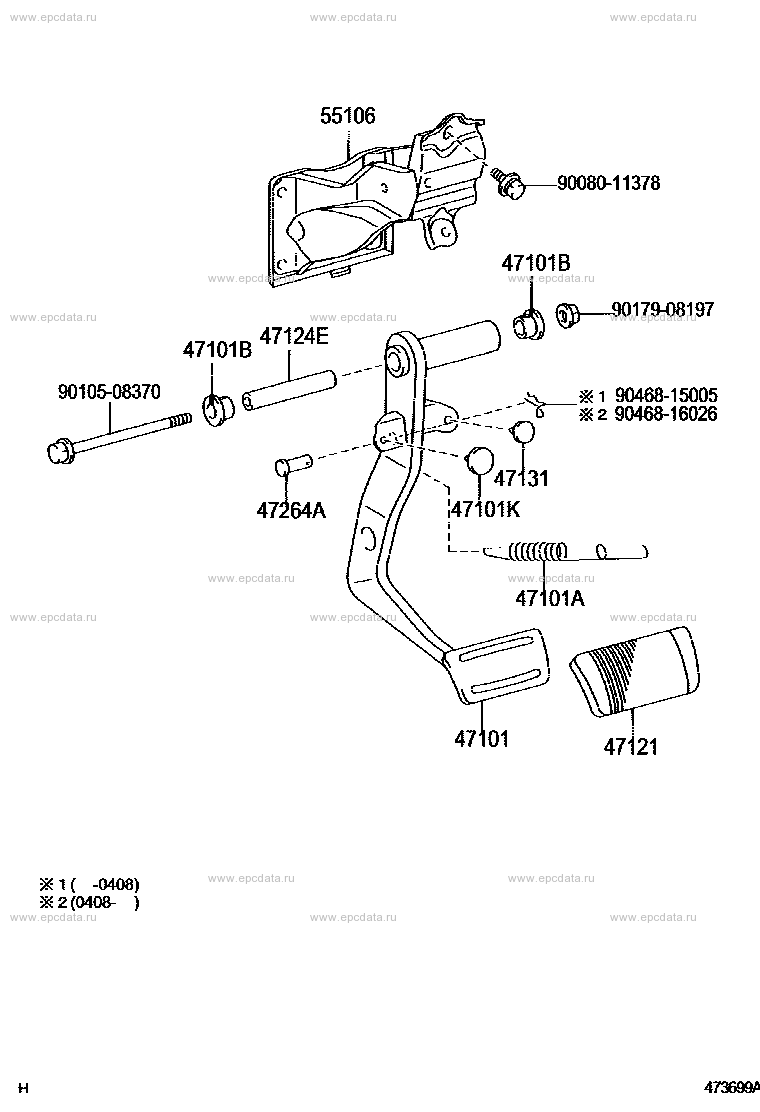

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 55106 SUPPORT SUB-ASSY, BRAKE PEDAL 9008011378 ** Std Part 9010508370 ** Std Part 47101B BUSH (FOR BRAKE PEDAL) 47124E COLLAR, BRAKE PEDAL SHAFT NO.2 47130B RING E, BRAKE PEDAL LINK PIN 47131 CUSHION (FOR STOP LAMP SWITCH) 47101K CUSHION (FOR PARKING LOCK CABLE) 47121 PAD, BRAKE PEDAL 47101 PEDAL SUB-ASSY, BRAKE 47124A COLLAR (FOR BRAKE PEDAL SHAFT) 47130 LINK ASSY, BRAKE PEDAL 9046815005 ** Std Part 47264A PIN (FOR PUSH ROD) 47125C COLLAR (FOR BRAKE PEDAL BRACKET) 9010508371 ** Std Part 47112 LEVER, BRAKE PEDAL 9017908197 ** Std Part 47101A SPRING (FOR BRAKE PEDAL RETURN) 47130A PIN, BRAKE PEDAL LINK

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 47101B BUSH (FOR BRAKE PEDAL) 47124E COLLAR, BRAKE PEDAL SHAFT NO.2 9010508370 ** Std Part 9008011378 ** Std Part 9046815005 ** Std Part 9017908197 ** Std Part 47131 CUSHION (FOR STOP LAMP SWITCH) 47101K CUSHION (FOR PARKING LOCK CABLE) 47101A SPRING (FOR BRAKE PEDAL RETURN) 47264A PIN (FOR PUSH ROD) 47121 PAD, BRAKE PEDAL 47101 PEDAL SUB-ASSY, BRAKE 55106 SUPPORT SUB-ASSY, BRAKE PEDAL 9046816026 ** Std Part

Tundra UCK30
