Hood lock & hinge for Tundra UCK30

Click on the part subgroup below to get genuine part numbers.

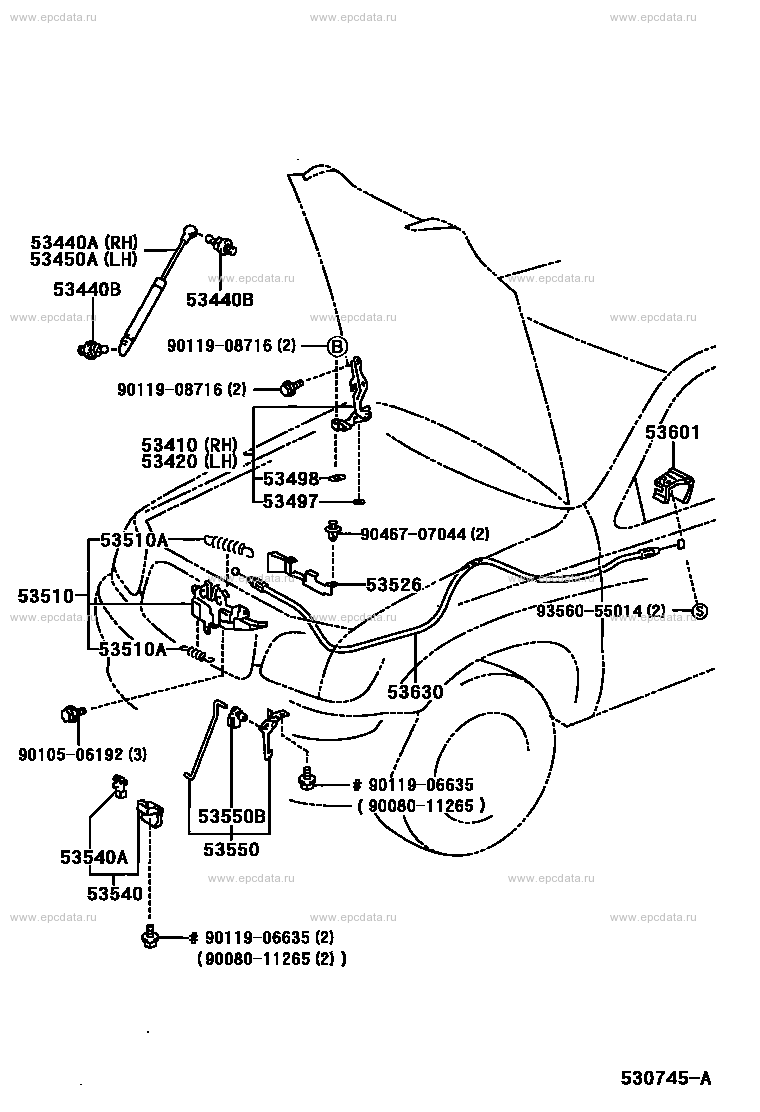

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 53440A SUPPORT ASSY, HOOD, RH 53450A SUPPORT ASSY, HOOD, LH 53440B BOLT, HOOD SUPPORT, NO.1 9011908716 ** Std Part 53601 LEVER SUB-ASSY, HOOD LOCK CONTROL 53410 HINGE ASSY, HOOD, RH 53420 HINGE ASSY, HOOD, LH 53498 PAD, HOOD HINGE, NO.2 53497 PAD, HOOD HINGE, NO.1 9046707044 ** Std Part 53510A SPRING, TENSION (FOR HOOD LOCK) 53526 PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2 53510 LOCK ASSY, HOOD 9356055014 ** Std Part 53630 CABLE ASSY, HOOD LOCK CONTROL 9010506192 ** Std Part 9011906635 ** Std Part 9008011265 ** Std Part 53550B SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK 53550 HOOK ASSY, HOOD AUXILIARY CATCH 53540A SNAP, AUXILIARY CATCH RELEASE LEVER CONTROL LINK 53540 LEVER ASSY, AUXILIARY CATCH RELEASE

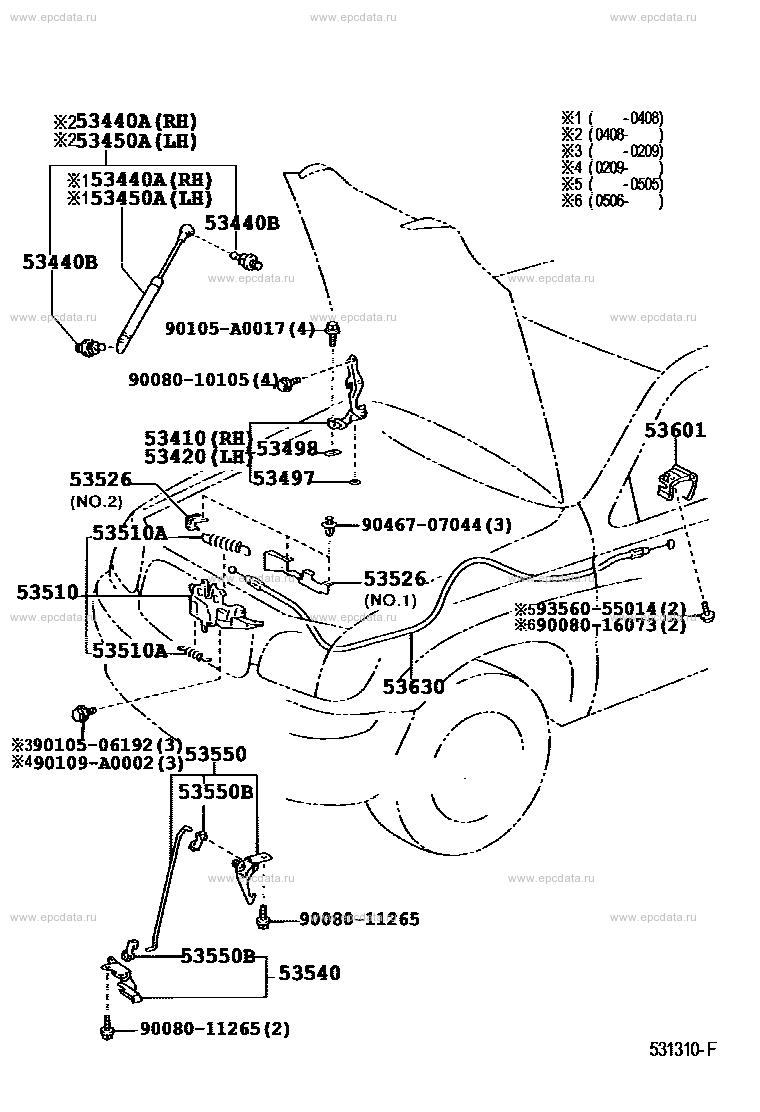

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 53440A SUPPORT ASSY, HOOD, RH 53450A SUPPORT ASSY, HOOD, LH 53440B BOLT, HOOD SUPPORT, NO.1 9008010105 ** Std Part 90105A0017 ** Std Part 53410 HINGE ASSY, HOOD, RH 53420 HINGE ASSY, HOOD, LH 53526 PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2 53498 PAD, HOOD HINGE, NO.2 53497 PAD, HOOD HINGE, NO.1 53510A SPRING, TENSION (FOR HOOD LOCK) 53510 LOCK ASSY, HOOD 90109A0002 ** Std Part 53550B SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK 53550 HOOK ASSY, HOOD AUXILIARY CATCH 53630 CABLE ASSY, HOOD LOCK CONTROL 9008011265 ** Std Part 9008016073 ** Std Part 9046707044 ** Std Part 53601 LEVER SUB-ASSY, HOOD LOCK CONTROL 53540 LEVER ASSY, AUXILIARY CATCH RELEASE 9010506192 ** Std Part 9356055014 ** Std Part
