Console box & bracket for Tundra UCK30

Click on the part subgroup below to get genuine part numbers.

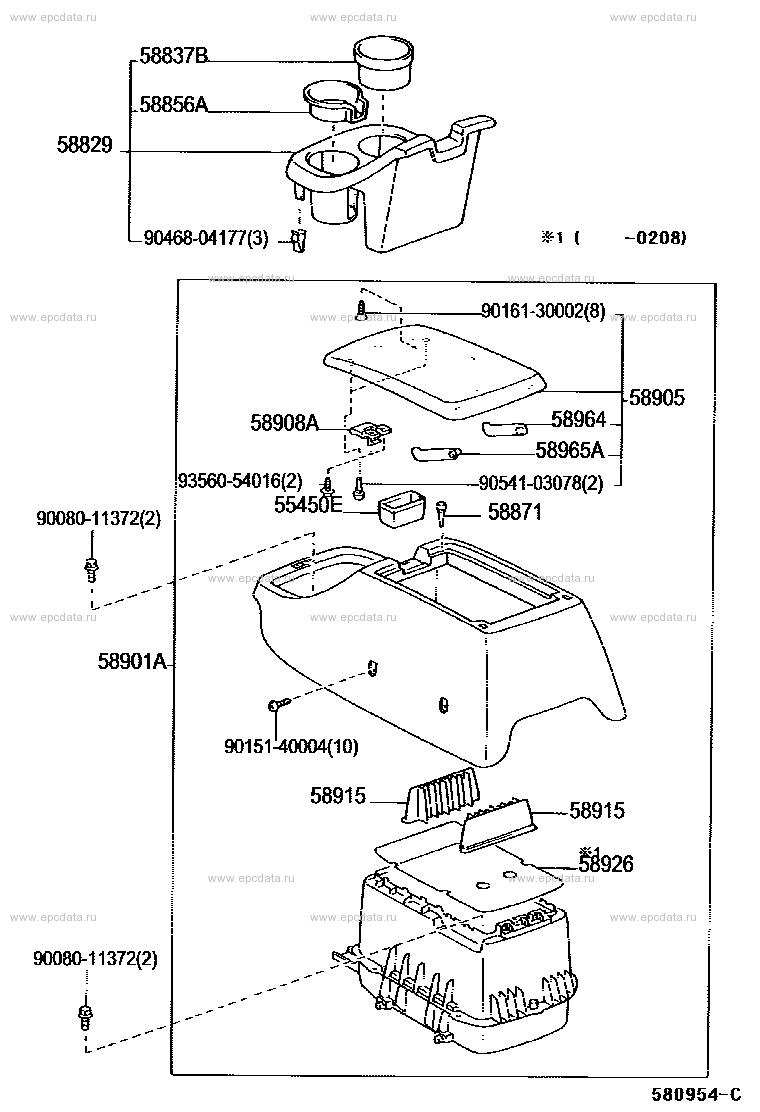

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 58829 POCKET, CONSOLE BOX 58837B BOX, CONSOLE CUP HOLDER 58856A HOLDER CONSOLE BOX 9046804177 ** Std Part 58901A BOX SUB-ASSY, CONSOLE, REAR 58905 DOOR SUB-ASSY, CONSOLE COMPARTMENT 58964 STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 58965A STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 58871 CUSHION, CONSOLE BOX 58915 PANEL, BOX BOTTOM 58926 INSULATOR, CONSOLE BOX, LOWER 9008011372 ** Std Part 9015140004 ** Std Part 55450E BOX ASSY, COIN 58908A LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 9356054016 ** Std Part 9016130002 ** Std Part 9054103078 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: ** 87-15 9011906923 ** Std Part 58810J BOX ASSY, CONSOLE 58811D CLIP(FOR CONSOLE BOX) 58831A GARNISH, CONSOLE UPPER PANEL, FRONT 58908A LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 9356854512 ** Std Part 9008011372 ** Std Part 58833A COVER, CONSOLE, UPPER 9054103078 ** Std Part 58821C PANEL, CONSOLE, UPPER 58804A PANEL SUB-ASSY, CONSOLE, UPPER 9356855014 ** Std Part 9046710203 ** Std Part 58910C BOX ASSY, CONSOLE, REAR 58907 HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR 58925A POCKET, CONSOLE BOX, REAR 9054106003 ** Std Part 58905 DOOR SUB-ASSY, CONSOLE COMPARTMENT 55450E BOX ASSY, COIN 9356854518 ** Std Part 58960C HOLDER ASSY, CASSETTE CASE 58993 BRACKET, CONSOLE BOX MOUNTING, REAR 58861A SUPPORT, CONSOLE BOX, NO.1 58995E BRACKET, CONSOLE BOX MOUNTING, NO.1 9008011546 ** Std Part 58997 BRACKET, CONSOLE BOX MOUNTING, NO.3

Tundra UCK30
