Roof panel & back panel for Tundra UCK30

Click on the part subgroup below to get genuine part numbers.

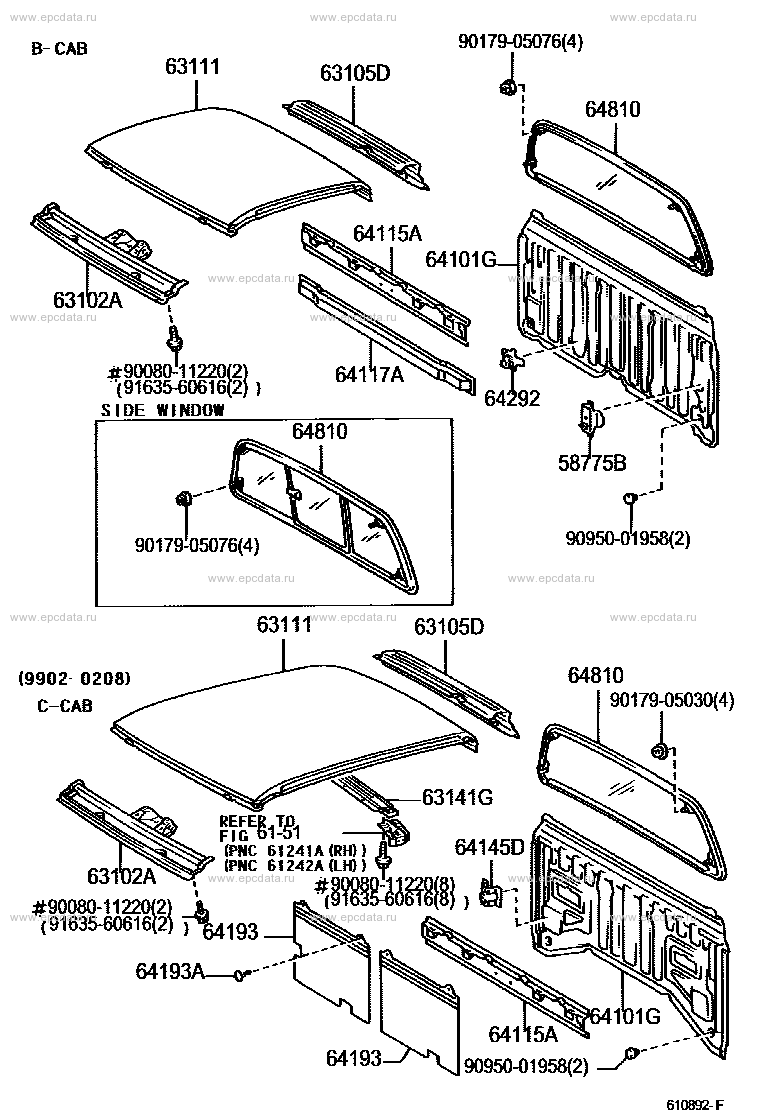

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 63111 PANEL, ROOF 63102A PANEL SUB-ASSY, WINDSHIELD HEADER 63105D FRAME SUB-ASSY, BACK WINDOW, UPPER 64115A REINFORCEMENT, BACK, UPPER 64101G PANEL SUB-ASSY, BACK 9017905076 ** Std Part 64810 WINDOW ASSY, BACK 9095001958 ** Std Part 58775B BRACKET, JACK ROD SUPPORT, NO.1 64292 CLAMP, JACK HANDLE 64117A REINFORCEMENT, CAB BACK, LOWER 9008011220 ** Std Part 9017905030 ** Std Part 64145D BRACKET, REAR SEAT BACK SET 63141G REINFORCEMENT, ROOF PANEL, NO.1 64193 PAD, BACK PANEL SILENCER ** 61-51 64193A CLIP(FOR BACK PANEL SILENCER PAD) 9163560616 ** Std Part

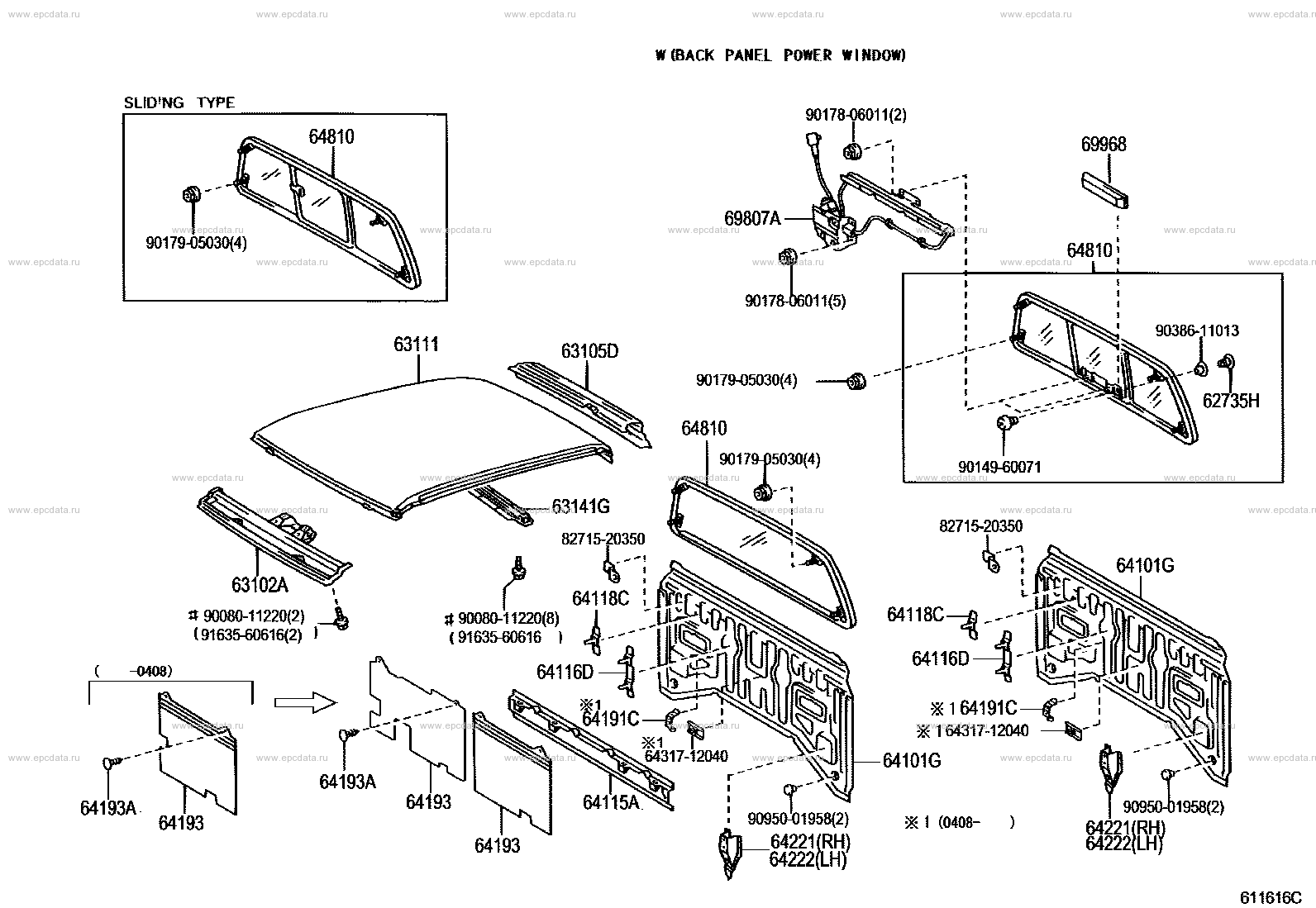

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 64810 WINDOW ASSY, BACK 63111 PANEL, ROOF 63141G REINFORCEMENT, ROOF PANEL, NO.1 64116D REINFORCEMENT, CAB BACK, UPPER 64101G PANEL SUB-ASSY, BACK 64193A CLIP(FOR BACK PANEL SILENCER PAD) 64193 PAD, BACK PANEL SILENCER 64115A REINFORCEMENT, BACK, UPPER 63102A PANEL SUB-ASSY, WINDSHIELD HEADER 9008011220 ** Std Part 9163560616 ** Std Part 63105D FRAME SUB-ASSY, BACK WINDOW, UPPER 64118C REINFORCEMENT, CAB BACK SIDE, RH 8271520350 ** Std Part 9017905030 ** Std Part 64221 BRACE, REAR SEAT CUSHION SUPPORT 64222 BRACE, REAR SEAT CUSHION SUPPORT, LH 9095001958 ** Std Part 9014960071 ** Std Part 9038611013 ** Std Part 62735H RETAINER, QUARTER WINDOW HINGE 69968 COVER, BACK DOOR GLASS CHANNEL 9017806011 ** Std Part 69807A REGULATOR SUB-ASSY, BACK DOOR POWER WINDOW 6431712040 ** Std Part 64191C BRACKET, RR SEAT BELT ANCHORAGE, RH

Tundra UCK30
