Wiring & clamp for Land Cruiser UZJ100L
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
Click part number in the scheme or in the list: 9011906005 ** Std Part82112 WIRE, ENGINE ROOM, NO.2 91511B0614 ** Std Part 82666B HOLDER, CONNECTOR NO.3 82111 WIRE, ENGINE ROOM MAIN 82817 PROTECTOR, WIRING HARNESS, NO.1 82210C FUSIBLE LINK 82114 WIRE, ENGINE ROOM, NO.4 82261A WIRE, ALTERNATOR 82823B CAP, TERMINAL, NO.3 ** 84-01 82666N HOLDER, CONNECTOR NO.10 |
Scheme 2
|
Click part number in the scheme or in the list: 82125 WIRE, TRANSMISSION9011906393 ** Std Part 91621J0814 ** Std Part 82295 WIRE, WINCH EARTH 9011906005 ** Std Part 82122 WIRE, ENGINE, NO.2 91621B0816 ** Std Part 82916 INSULATOR, WIRING HARNESS HEAT, NO.2 82121 WIRE, ENGINE 9011908827 ** Std Part 9165160816 ** Std Part |
Scheme 3
|
Click part number in the scheme or in the list: 82125 WIRE, TRANSMISSION91621J0814 ** Std Part 9011908827 ** Std Part 91621B0616 ** Std Part 82295 WIRE, WINCH EARTH 9011906393 ** Std Part 9011906005 ** Std Part 82122 WIRE, ENGINE, NO.2 82121 WIRE, ENGINE 82001 CABLE, BOND, NO.1 91651B0816 ** Std Part ** 86-01 |
Scheme 4
|

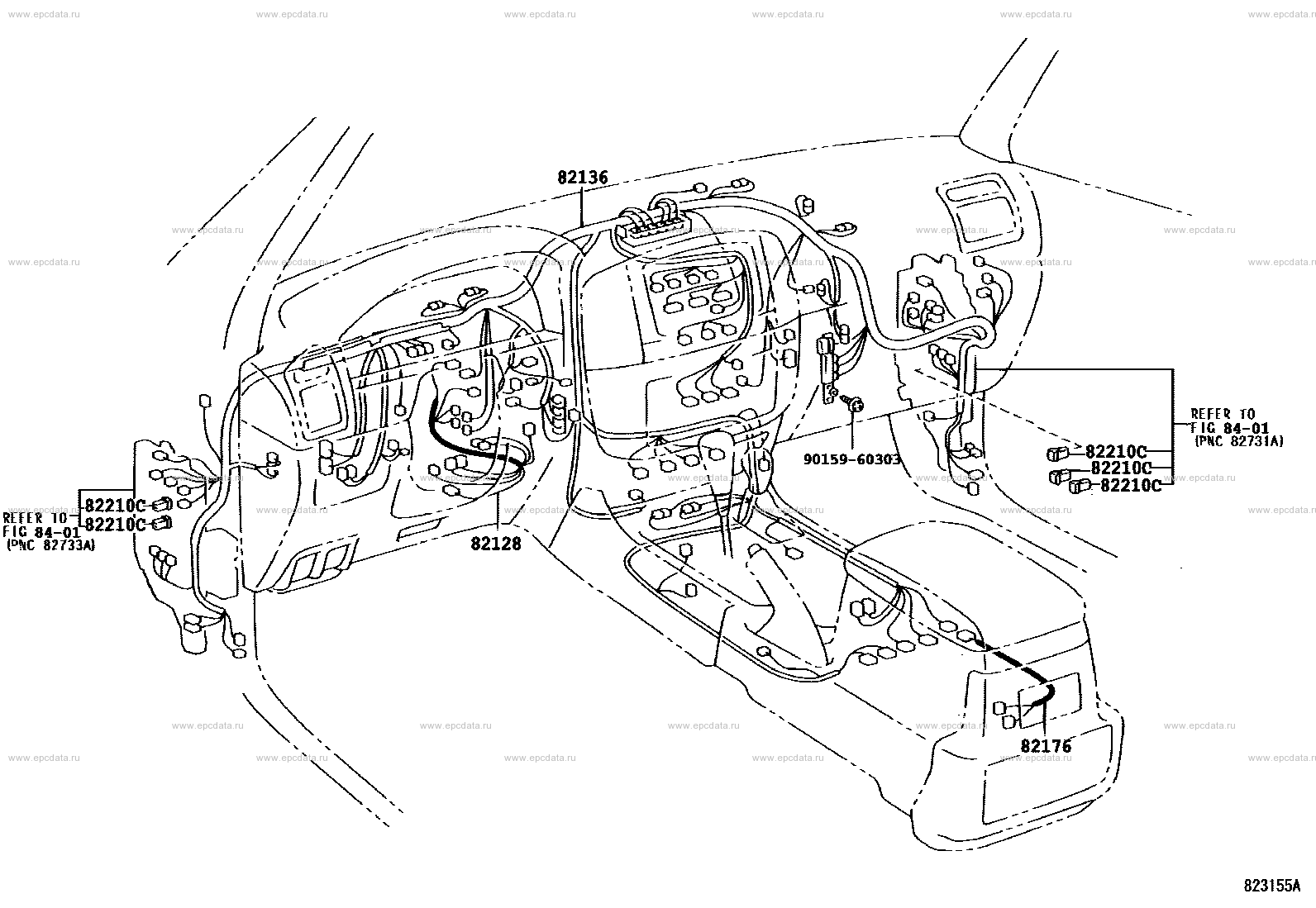

Click part number in the scheme or in the list: 82136 WIRE, DASH82128 WIRE, COLUMN 9015960303 ** Std Part ** 84-01 82176 WIRE, RR CONSOLE BOX 82210C FUSIBLE LINK |
Scheme 5
|
Click part number in the scheme or in the list: 9015950098 ** Std Part82214A WIRE, LAMP 82143 WIRE, INSTRUMENT PANEL, NO.3 82792 WIRE, INSTRUMENT PANEL INTEGRATION 82233 WIRE, COMPUTER 82666G HOLDER, CONNECTOR NO.8 82141 WIRE, INSTRUMENT PANEL |
Scheme 6
|
Click part number in the scheme or in the list: 82151 WIRE, FRONT DOOR, RH82666L HOLDER, CONNECTOR NO.9 82081 WIRING ASSY, DOOR LOCK 82153 WIRE, REAR DOOR, NO.1 9046709030 ** Std Part 82154 WIRE, REAR DOOR, NO.2 82152 WIRE, FRONT DOOR, LH |
Scheme 7
|

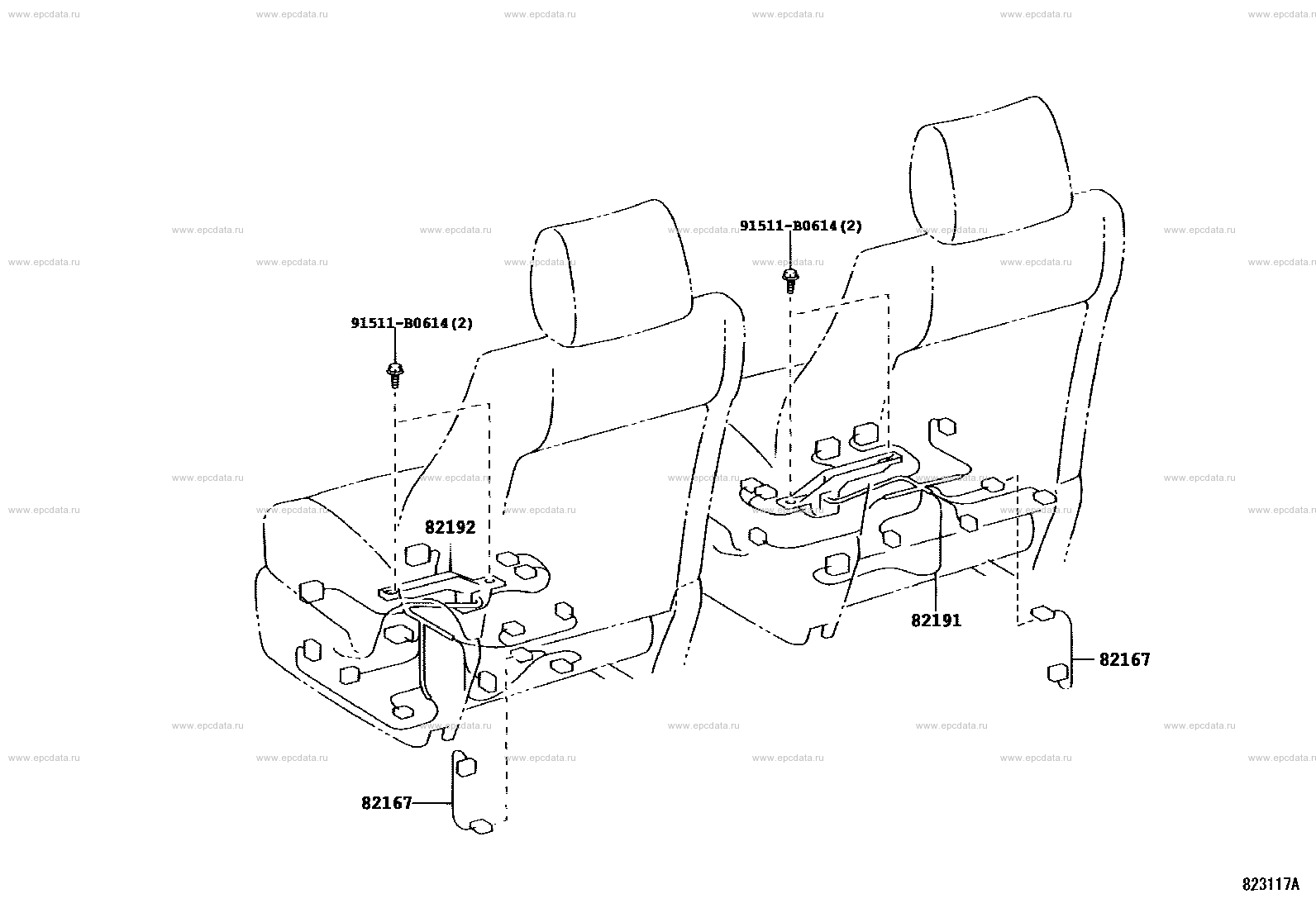

Click part number in the scheme or in the list: 82192 WIRE, FRONT SEAT, LH82167 WIRE, SEAT, NO.1 91511B0614 ** Std Part 82191 WIRE, FRONT SEAT, RH |
Scheme 8
|
Click part number in the scheme or in the list: 82162 WIRE, FLOOR, NO.29011906005 ** Std Part 8271260120 ** Std Part 9017906115 ** Std Part 8271260100 ** Std Part 9033325003 ** Std Part 82666E HOLDER, CONNECTOR NO.6 82177A WIRE, FRAME, NO.4 8295360020 ** Std Part 82163 WIRE, FLOOR, NO.3 9011906590 ** Std Part 91641H0820 ** Std Part 82666A HOLDER, CONNECTOR NO.2 82666D HOLDER, CONNECTOR NO.5 ** 84-01 82164 WIRE, FRAME 82161 WIRE, FLOOR 8271260110 ** Std Part 82165 WIRE, FRAME, NO.2 82413A WIRE, FUEL TANK 82169 WIRE FRAME, NO.3 |
Scheme 9
|

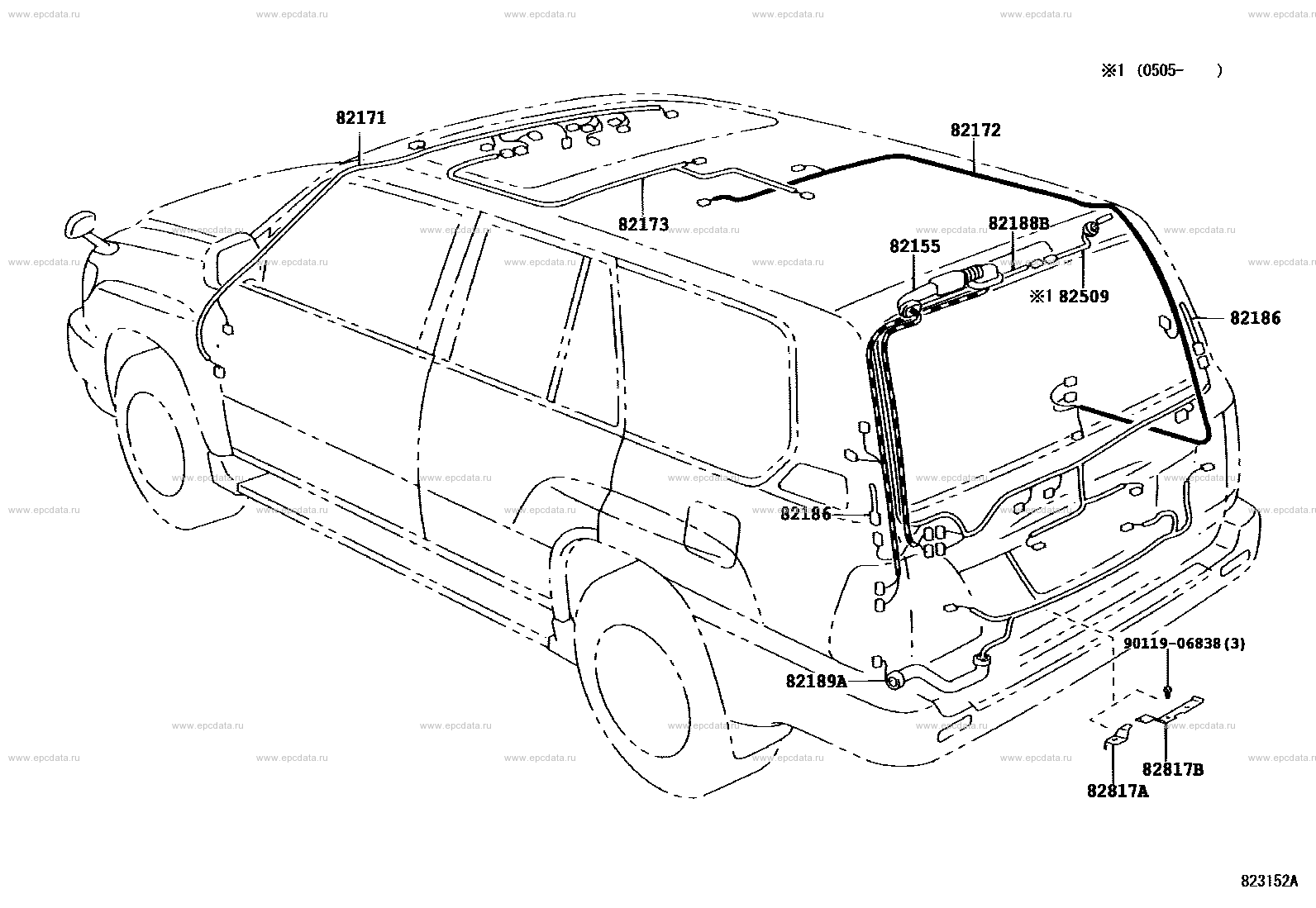

Click part number in the scheme or in the list: 82189A WIRE, BACK DOOR, LOWER9011906838 ** Std Part 82186 WIRE, REAR WINDOW, NO.1 82155 WIRE, CENTER PILLER, NO.1 82817A PROTECTOR, WIRING HARNESS, NO.2 82172 WIRE, ROOF, NO.2 82188B WIRE, BACK DOOR, UPPER 82173 WIRE, ROOF, NO.3 82171 WIRE, ROOF, NO.1 82817B PROTECTOR, WIRING HARNESS, NO.3 82509 WIRING SUB-ASSY, BACK DOOR |
Scheme 10
Scheme 11
Scheme 12
|
Click part number in the scheme or in the list: 8761635010 ** Std Part82001 CABLE, BOND, NO.1 9161160814 ** Std Part 91631J0612 ** Std Part 8271112120 ** Std Part 9011906005 ** Std Part 82046A WIRE SUB-ASSY, BODY GROUND, NO.1 9017906161 ** Std Part |
Scheme 13
|
Click part number in the scheme or in the list: 9098010619 ** Std Part9098011020 ** Std Part 9098011659 ** Std Part 9098011587 ** Std Part 9098011156 ** Std Part 9098011660 ** Std Part 9098010908 ** Std Part 9098011148 ** Std Part |
