Electronic fuel injection system for Land Cruiser UZJ100L

Click on the part subgroup below to get genuine part numbers.

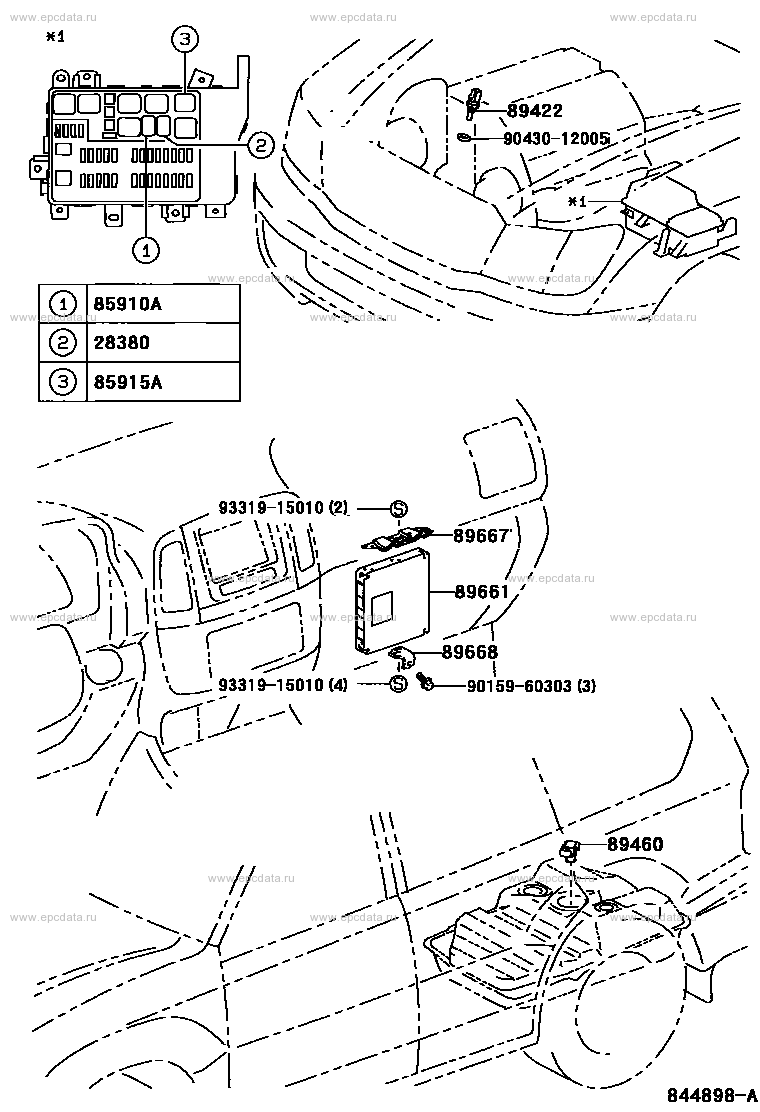

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 89422 SENSOR, WATER TEMPERATURE (FOR E.F.I.) 9043012005 ** Std Part 85910A RELAY ASSY, CIRCUIT OPENING (FOR E.F.I.) 28380 RELAY ASSY, FUEL PUMP 85915A RELAY, MAIN 9331915010 ** Std Part 89667 BRACKET, ENGINE CONTROL COMPUTER 89661 COMPUTER, ENGINE CONTROL 89668 BRACKET, ENGINE CONTROL COMPUTER, NO.2 9015960303 ** Std Part 89460 SENSOR ASSY, VAPOR PRESSURE

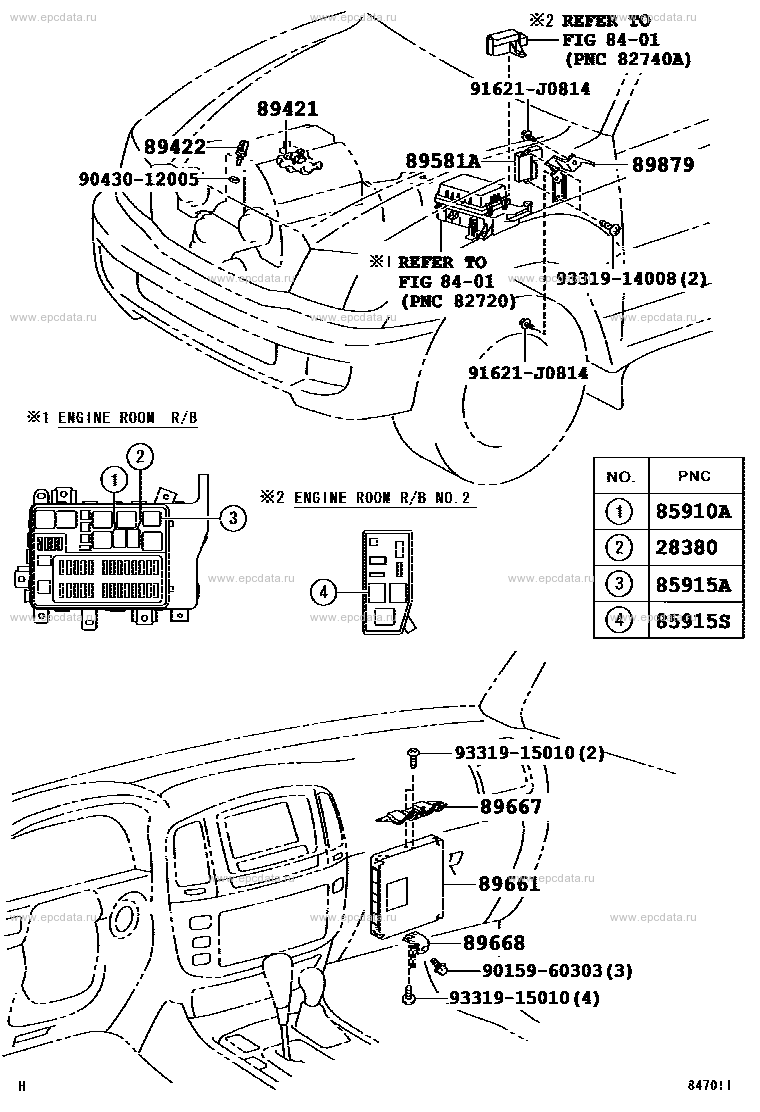

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9015960303 ** Std Part 9331915010 ** Std Part 9331914008 ** Std Part 91621J0814 ** Std Part 89421 SENSOR ASSY, VACUUM (FOR E.F.I.) 89661 COMPUTER, ENGINE CONTROL 89668 BRACKET, ENGINE CONTROL COMPUTER, NO.2 89667 BRACKET, ENGINE CONTROL COMPUTER 89422 SENSOR, WATER TEMPERATURE (FOR E.F.I.) 9043012005 ** Std Part 85910A RELAY ASSY, CIRCUIT OPENING (FOR E.F.I.) 28380 RELAY ASSY, FUEL PUMP 85915A RELAY, MAIN 85915S RELAY, HEATER (FOR AIR FUEL RATIO SENSOR) 89581A DRIVER, AIR INJECTION CONTROL 89879 BRACKET,INJECTOR DRIVER ** 84-01
