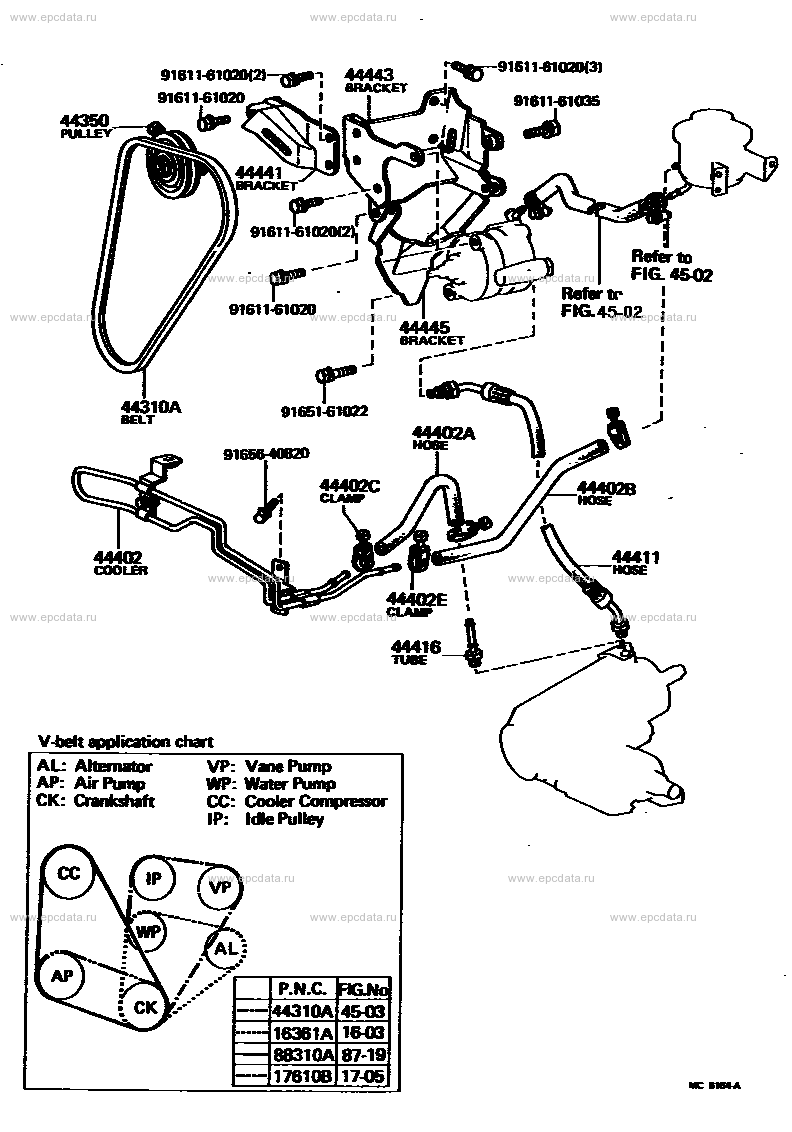

Click part number in the scheme or in the list:
9161161020 ** Std Part
44443 BRACKET, PUMP
9161161035 ** Std Part
44350 PULLEY ASSY, POWER STEERING IDLE
44441 BRACKET, PUMP, FRONT
** 45-02
44445 BRACKET, PUMP, LOWER
44310A BELT, V (FOR VANE PUMP)
9165161022 ** Std Part
44402A HOSE, POWER STEERING OIL COOLER INLET
9165640820 ** Std Part
44402C CLAMP, POWER STEERING OIL COOLER INLET HOSE
44402B HOSE, POWER STEERING OIL COOLER OUTLET
44402 COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44411 HOSE, PRESSURE FEED
44402E CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
44416 TUBE, RETURN (FOR STEERING GEAR OUTLET)
** 45-03
** 16-03
16361A BELT, V (FOR FAN AND ALTERNATOR)
88310A BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
** 87-19
17610B BELT, V (FOR AIR PUMP)
** 17-05 |
